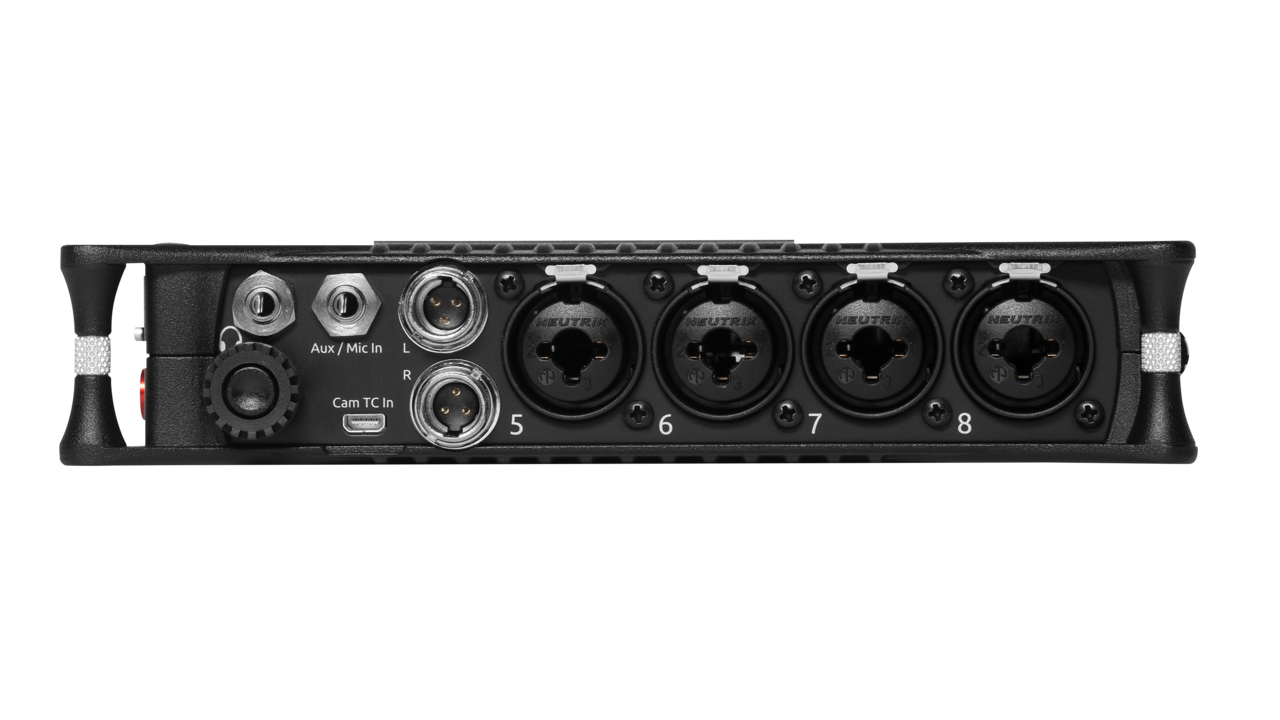

Sound Devices MixPre-10 II

Sound Devices MixPre-10 II

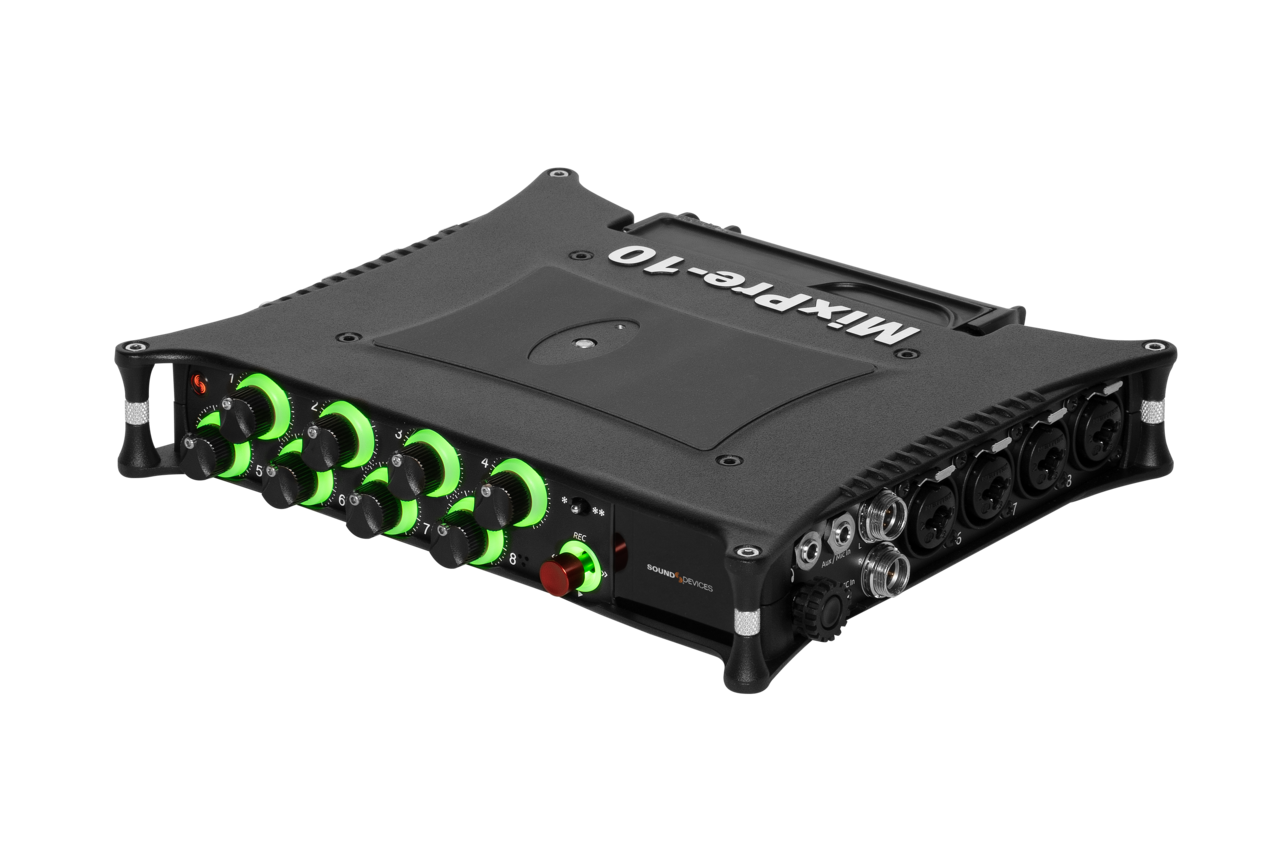

The Sound Devices MixPre-10 II is a professional-grade audio recorder and USB audio interface, designed for use in film, television, music production, and live sound. With a dynamic range of 142 dB and support for 32-bit float recording, this recorder delivers uncompromising audio quality even in extreme recording environments.

Key Specifications

• Channels: 12 tracks (stereo mix + 10 isolated inputs)

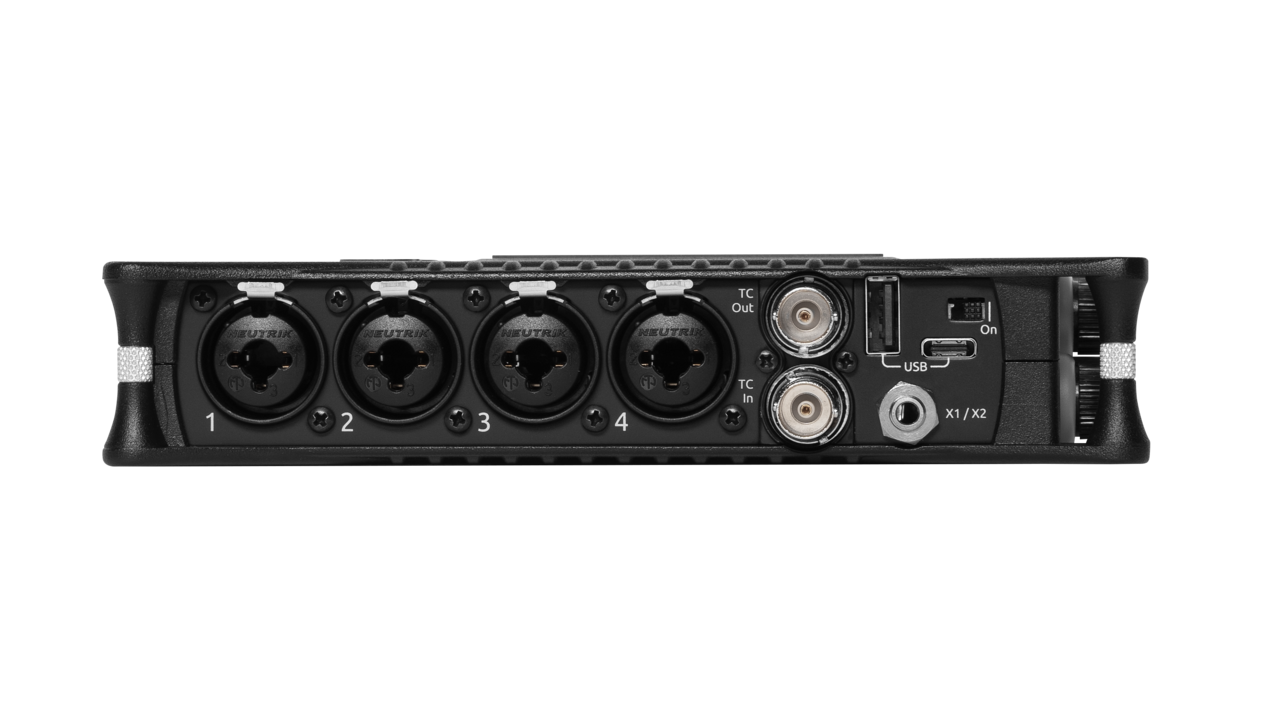

• Microphone Inputs: 8 balanced XLR/TRS combo inputs with 48V phantom power
• Line/Instrument Inputs: 2 additional 3.5 mm jack inputs
• Aux Input: Stereo 3.5 mm jack with configurable routing
• Recording Quality: Up to 32-bit float / 192 kHz
• Dynamic Range: 142 dB (A-weighted, gain = 10 dB, fader = 0 dB)
• Timecode: Built-in generator with I/O via BNC, HDMI, or 3.5 mm jack
• USB Audio Interface: 12-in/4-out via USB-C
• Storage: Supports SD, SDXC, and SDHC cards up to 512 GB
• Display: 1.6-inch color touchscreen, sunlight-readable
• Power Supply: 8x AA batteries, USB-C bus-powered, or AC adapter
• Dimensions: 36 x 206 x 175 mm
• Weight: 0.91 kg (without batteries)

Advanced Features

• High-resolution recording: Supports 32-bit float recording to prevent clipping in extreme audio environments and provide maximum dynamic range.
• Customizable routing: Flexible assignment of inputs to different channels, including aux inputs, for a fully customizable recording setup.
• Kashmir preamps: Ultra-low-noise microphone preamps with analog limiters for exceptional clarity and low-noise performance.
• Timecode compatibility: Designed for professional productions with a built-in timecode generator and support for BNC, HDMI, and 3.5 mm connections.
• Multitrack USB interface: Use the recorder as a 12-in/4-out USB audio interface for seamless integration with DAW software.
• Plug-in support: Expand functionality with optional plug-ins like NoiseAssist for noise reduction or Ambisonics for 360° audio recording.
• Wireless control: Bluetooth support for control via the Wingman app on mobile devices.
• Durable design: Built with an aluminum chassis and compact form factor for easy portability and on-location use.
