Schoeps CMC1L MK8 Mono Set

5% sale
Product description
Schoeps CMC 1 L MK 8 Mono Set The Schoeps CMC 1 L MK 8 Mono Set consists of a CMC 1 L microphone amplifier and an MK 8 'Figure-8' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where a figure-8 pickup pattern is desired. Key Features Pickup Pattern: The MK 8 capsule has a fig...

Schoeps CMC 1 L MK 8 Mono Set

The Schoeps CMC 1 L MK 8 Mono Set consists of a CMC 1 L microphone amplifier and an MK 8 'Figure-8' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where a figure-8 pickup pattern is desired.

Key Features

  • Pickup Pattern: The MK 8 capsule has a figure-8 (bidirectional) characteristic, ideal for M/S recordings and other applications where a figure-8 pickup is desired.

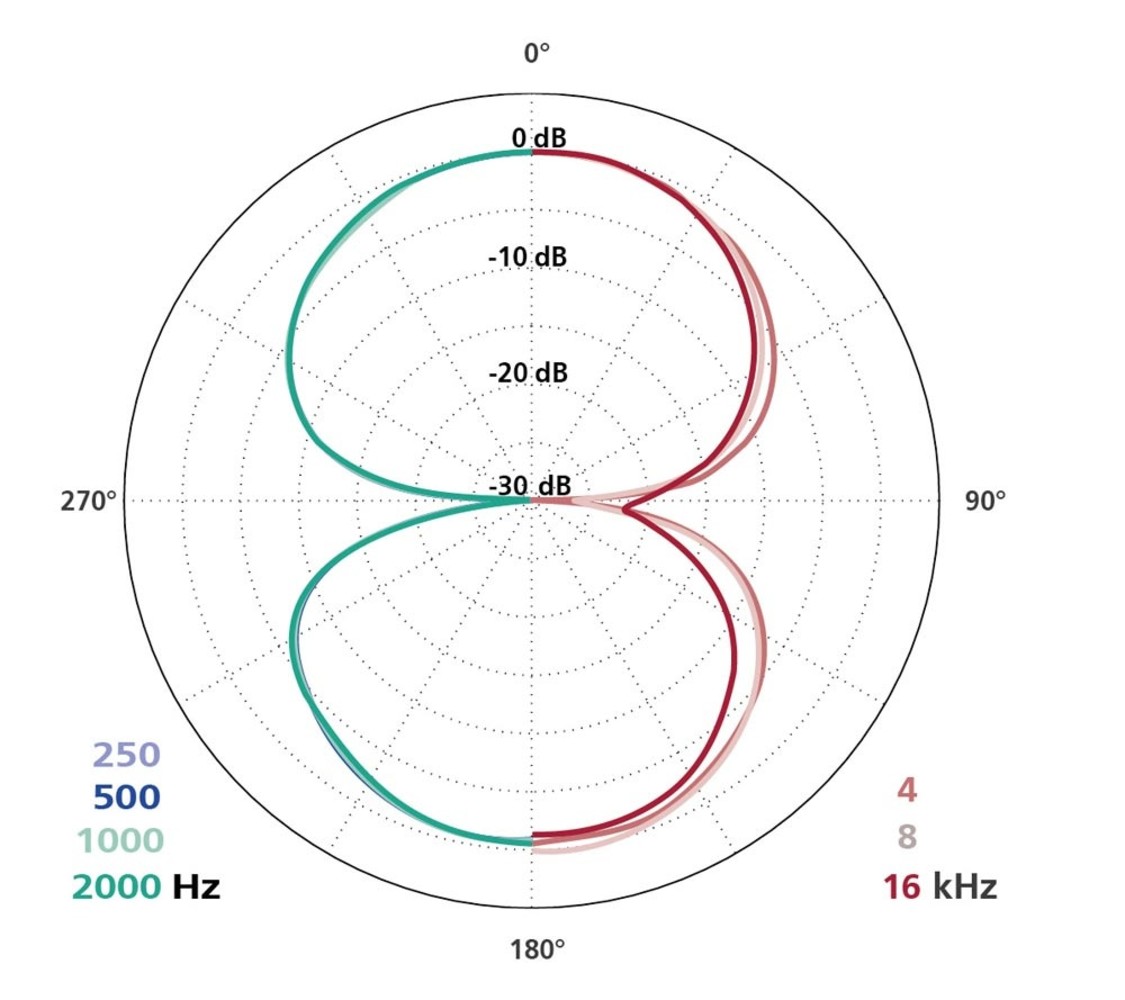

  • Consistency: High consistency of the polar diagram across the frequency range.
  • Versatile Use: Suitable for various recording applications, such as M/S stereo recordings, double M/S stereo recordings, and other applications requiring a figure-8 pickup.

Technical Specifications

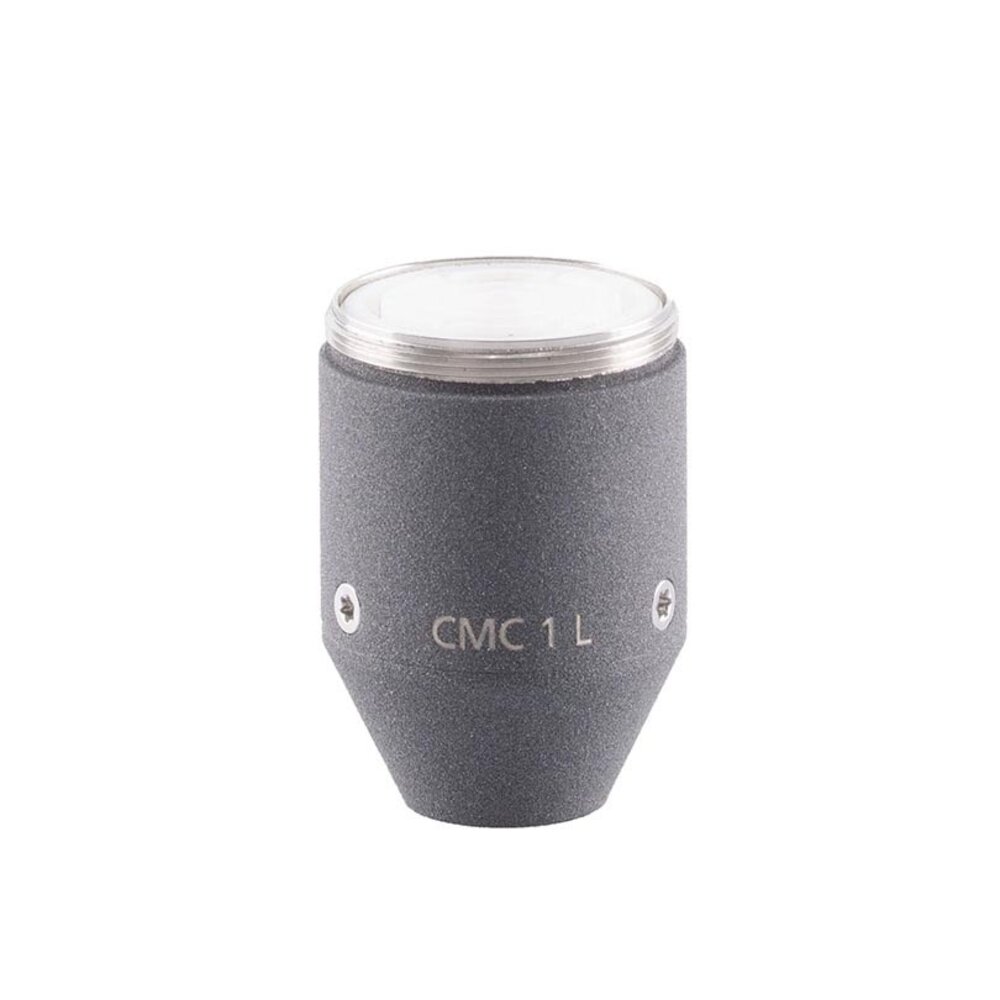

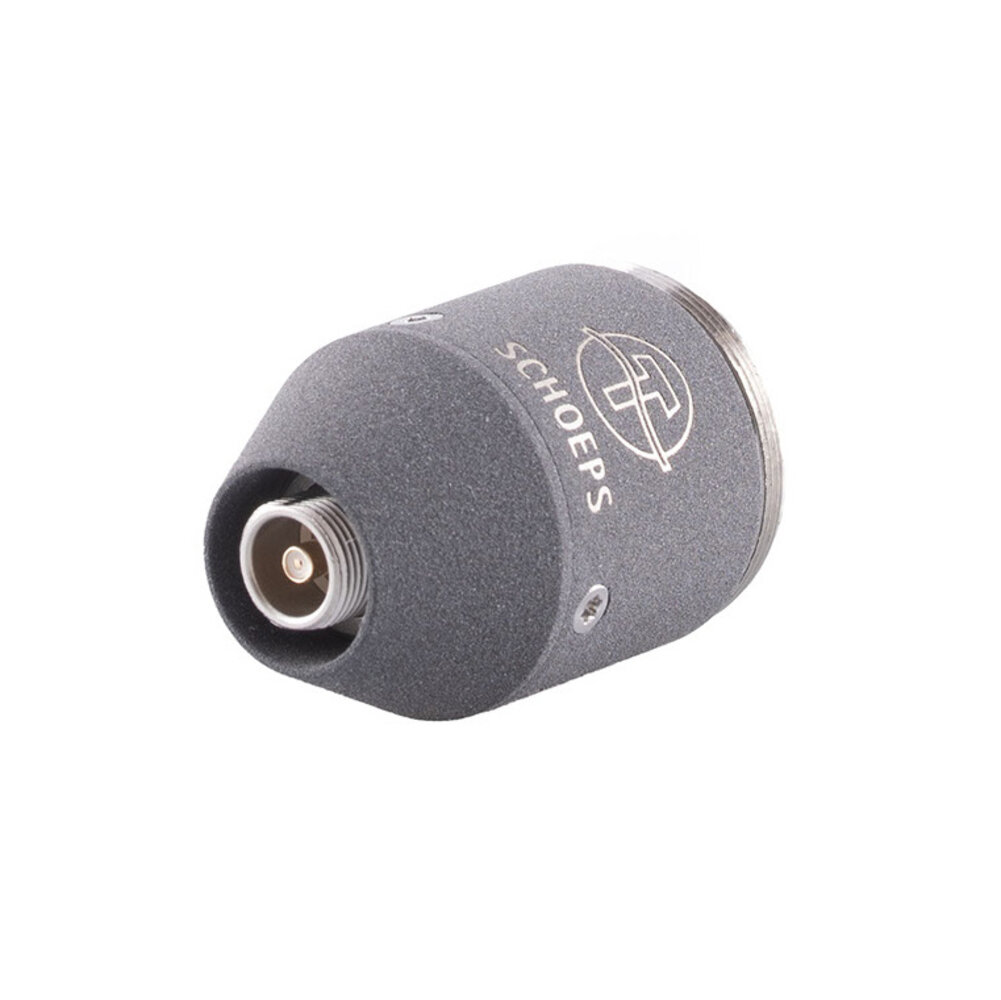

CMC 1 L Microphone Amplifier

  • Frequency Range: 20 Hz – 20 kHz.
  • Output Voltage: 1 V (0 dBV) at 1 kΩ load.
  • Current Consumption: 2 mA (P48), 3 mA (P12).
  • Output Impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz).
  • Maximum Cable Length: > 400 m / ~1300 ft.
  • SCHOEPS RFI Shield: Yes.
  • Powering Standard / Valid Range: P48 / 30-52 V, P12 / 11-13 V.

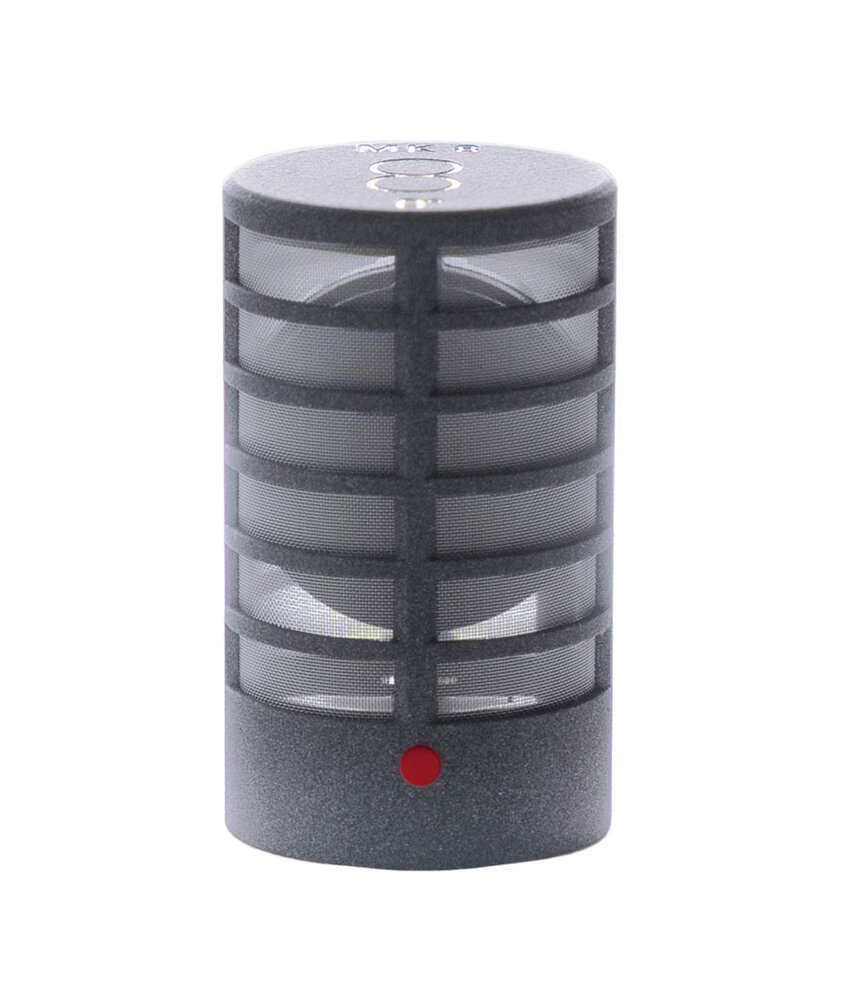

MK 8 Capsule

  • Pickup Pattern: Figure-of-eight.
  • Frequency Range: 20 Hz – 20 kHz.
  • Sensitivity: -38.5 dB (V/Pa), 12 mV/Pa.
  • Equivalent Noise Level (A-weighted): 17 dB.
  • Equivalent Noise Level (CCIR): 26 dB.
  • Signal-to-Noise Ratio (A-weighted): 77 dB.
  • Maximum Sound Pressure Level (THD < 0.5%): 133 dB SPL with CMC 6; 137 dB SPL with CMC 1.
  • Dimensions: Length 34 mm; Diameter 20 mm.
  • Weight: 18 g.
  • Surface Finish: Matte gray.
  • Custom Color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel).

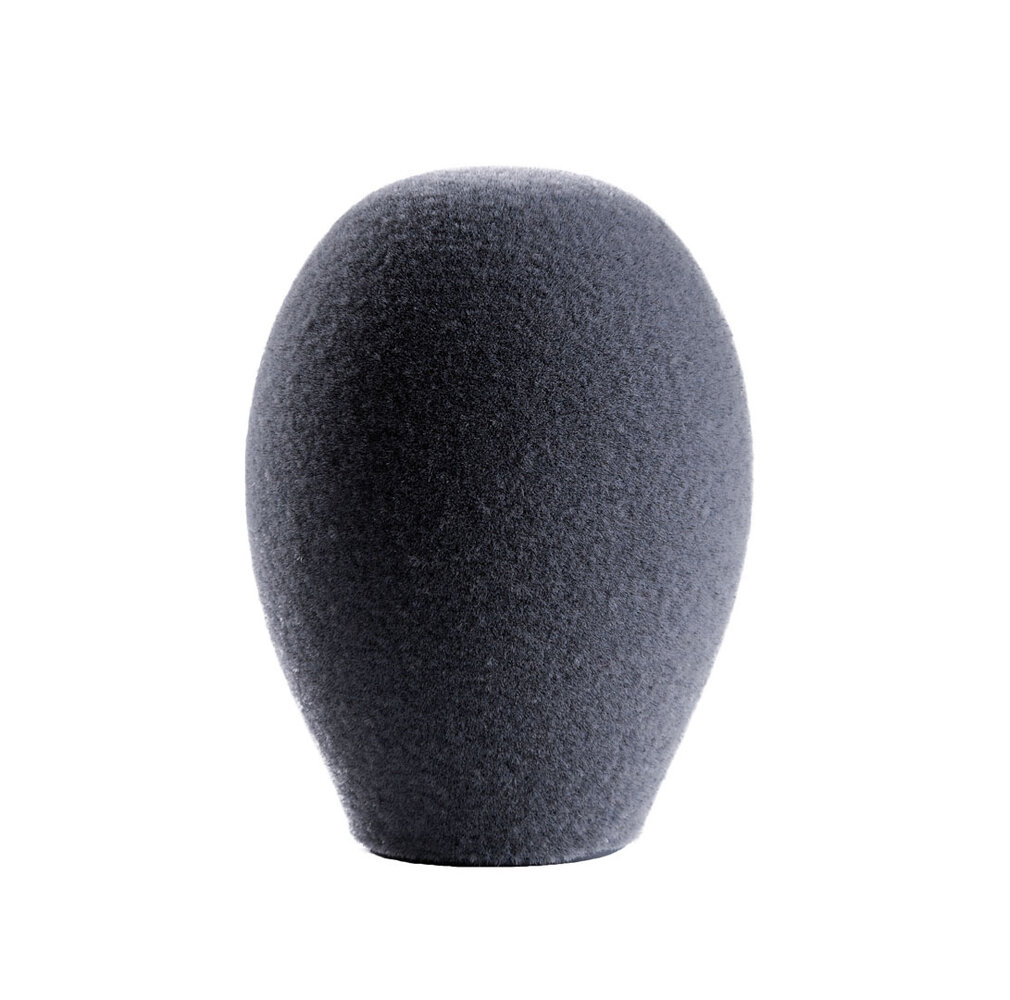

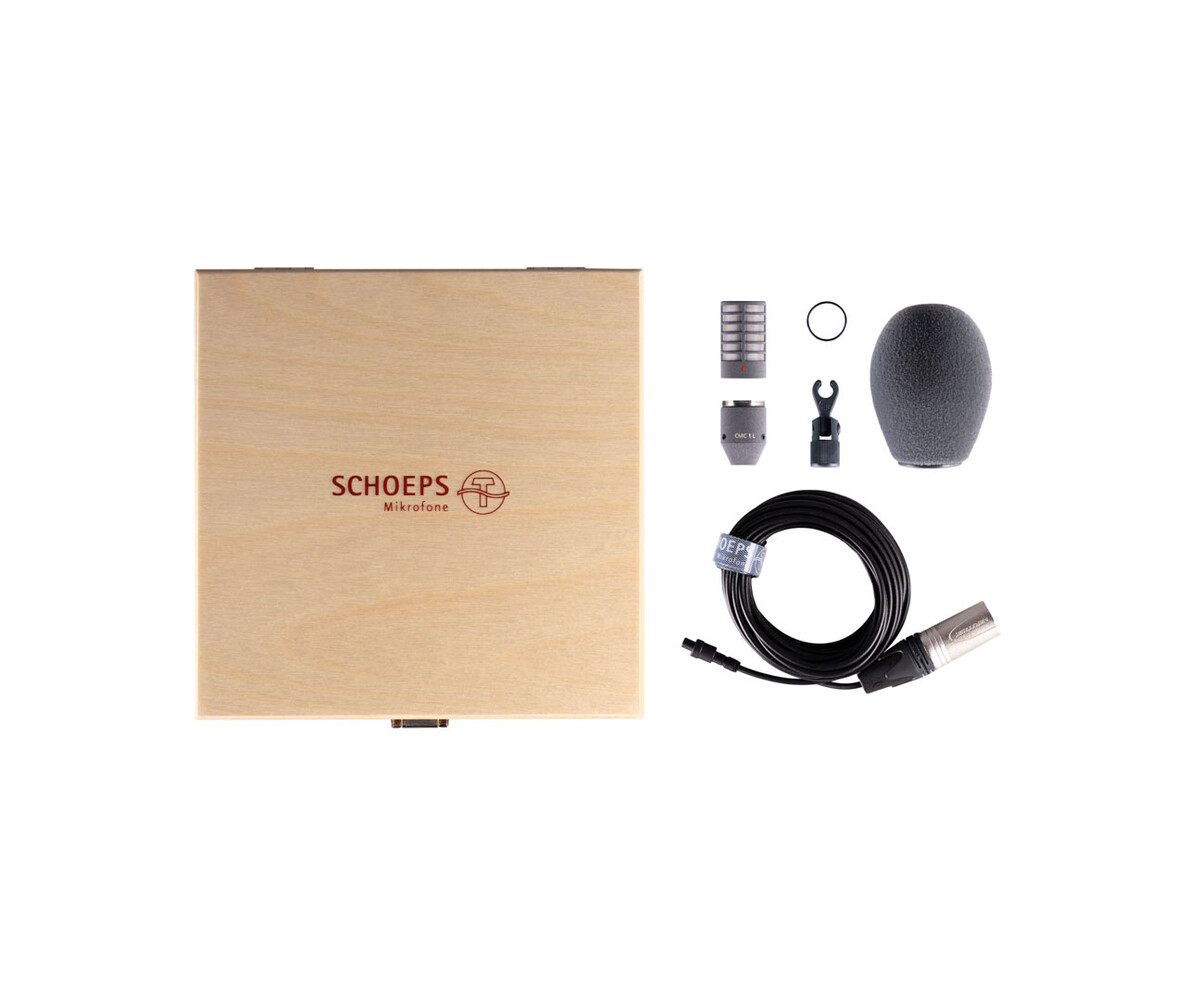

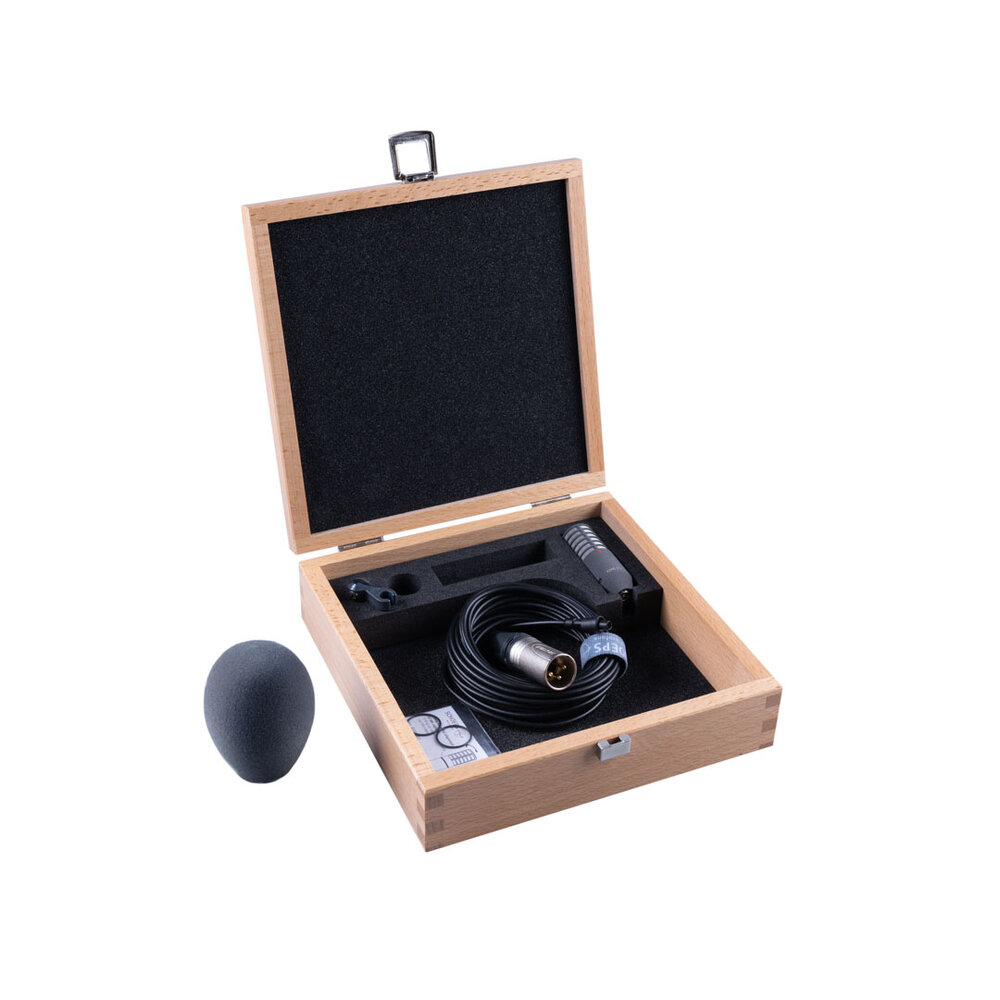

Included in this Set

  • CMC 1 L.
  • MK 8.

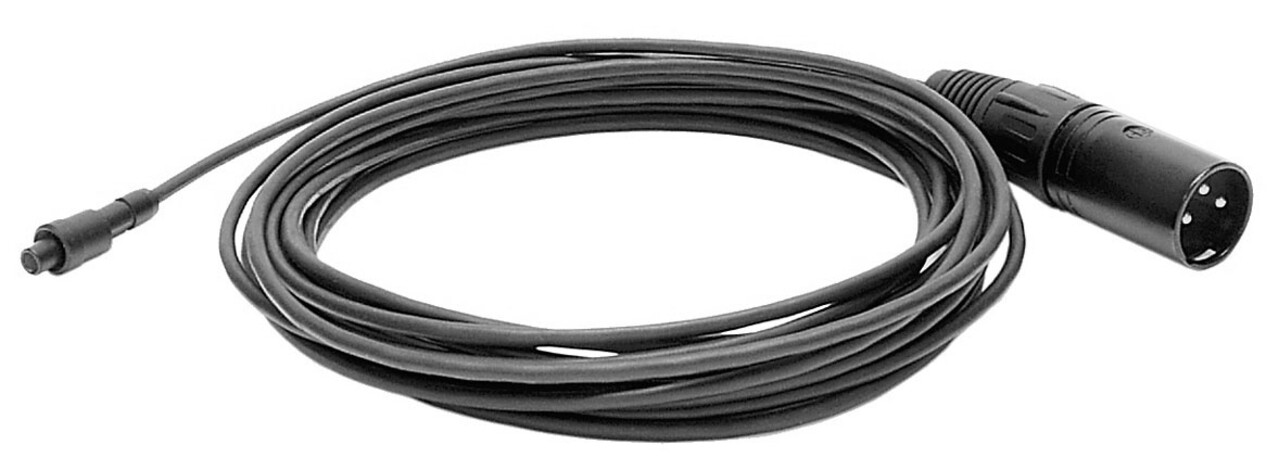

  • K 5 LU.

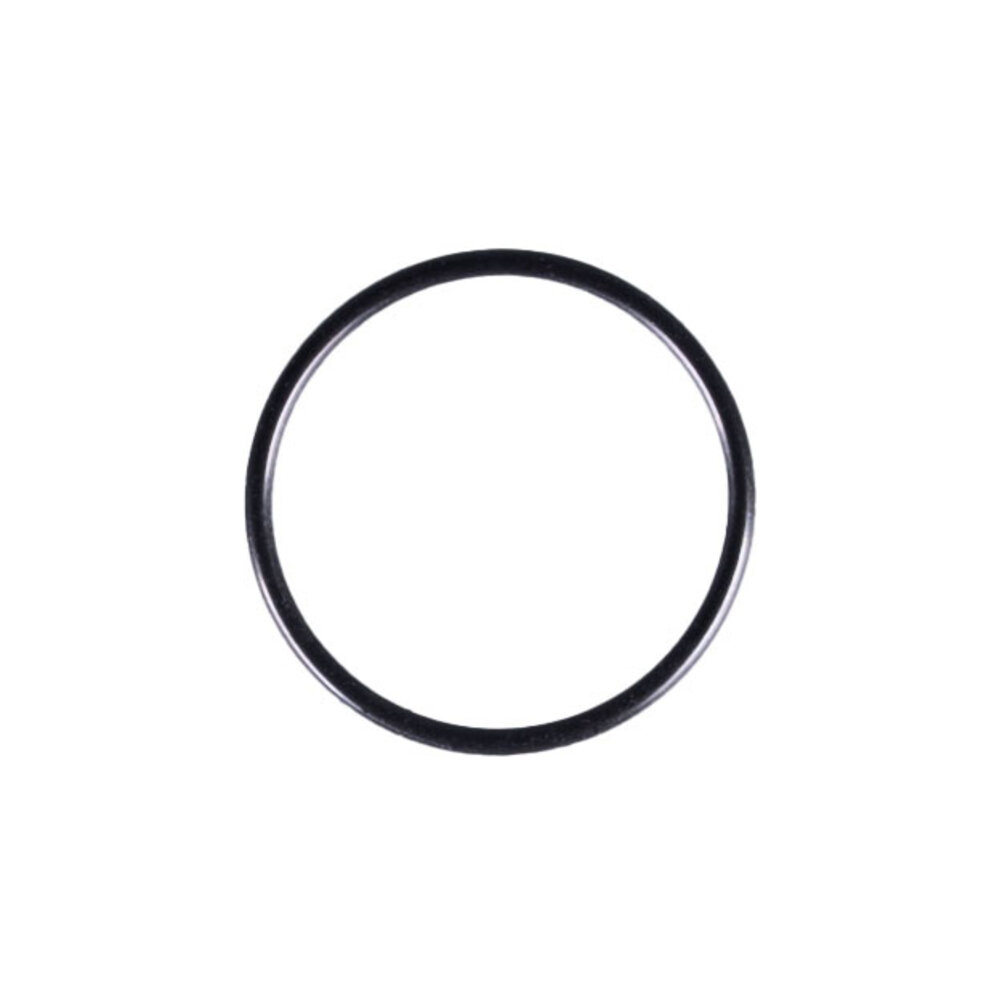

  • 2 x O-Ring for MK 8/V.
  • B 5 D.
  • SGC.
  • Premium case for CCM/CMC 1 L.

The Schoeps CMC 1 L MK 8 Mono Set is ideal for applications where a figure-8 pickup pattern is desired. For more information and detailed specifications, please visit the official Schoeps website: schoeps.de.

Product specifications

Article number
SCHMonCMC18255
SKU
138505

Reviews

0 / 5Based on 0 reviews

There are no reviews written yet about this product..

Create your own review

Previously viewed

Schoeps CMC1L MK8 Mono Set
SchoepsCMC1L MK8 Mono Set

[138505] Mono set CMC1L with MK8 capsule.

€1.619,00€1.538,05 Excl. tax
