Schoeps CMC1 MK5 Mono Set
Schoeps CMC 1 MK 5 Mono Set
The Schoeps CMC 1 MK 5 Mono Set is a high-quality microphone solution consisting of a CMC 1 microphone amplifier and an MK 5 capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where both cardioid and omnidirectional pickup patterns are desired.
Main Features
- Pickup Pattern: The MK 5 capsule offers both a cardioid and an omnidirectional option, allowing users to choose based on the recording environment.
- Versatile Use: Suitable for various recording applications, such as film recordings, theater productions, and other situations where both cardioid and omnidirectional recordings are desired.
Technical Specifications

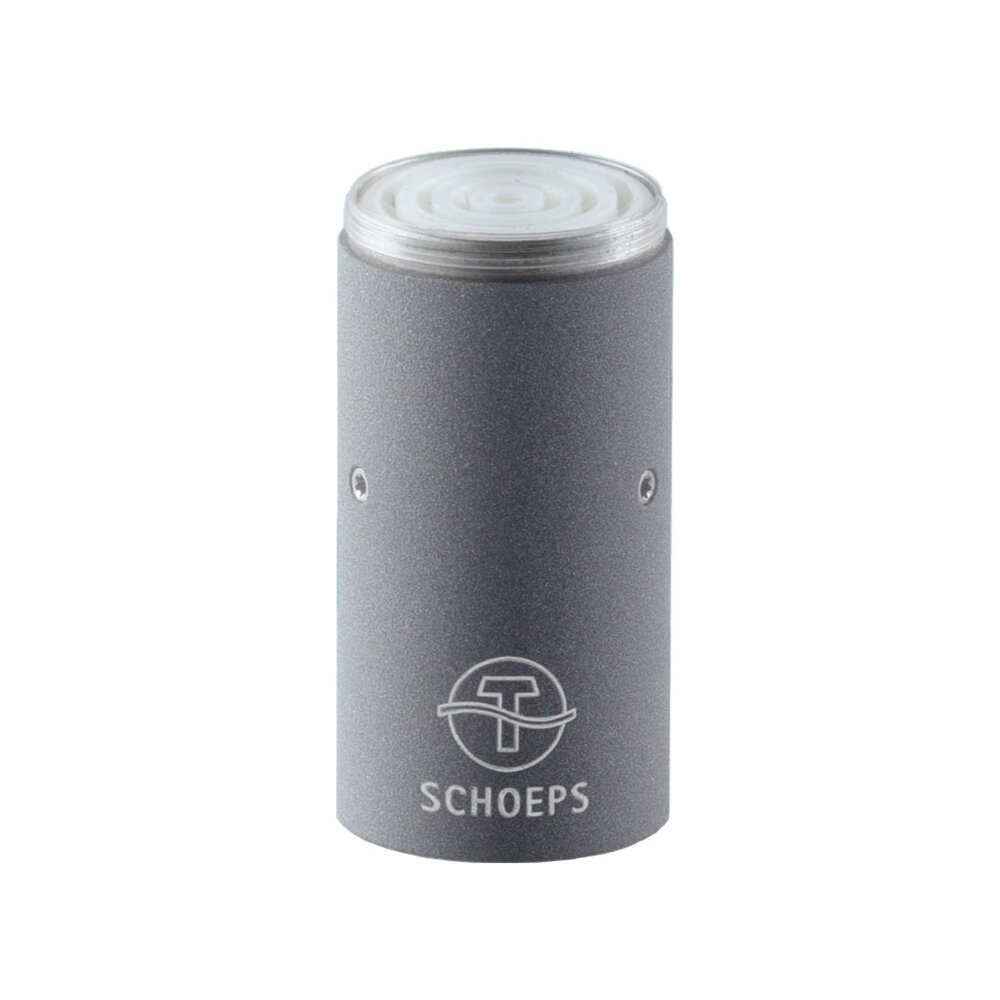

CMC 1 Microphone Amplifier
- Frequency Range: 20 Hz - 20 kHz.
- Output Voltage: 1 V (0 dBV) at 1 kΩ load.
- Current Consumption: 2 mA (P48), 3 mA (P12).
- Output Impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz).
- Maximum Cable Length: > 400 m / ~1300 ft.

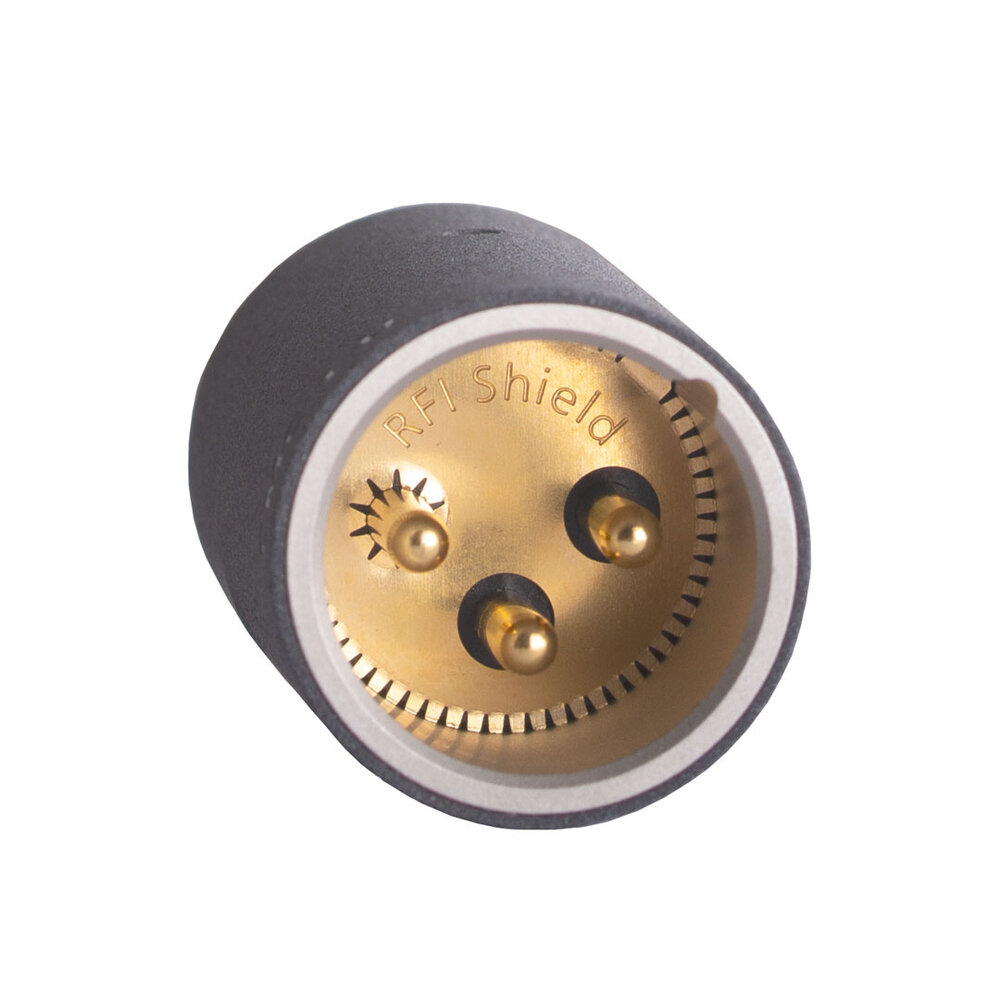

- SCHOEPS RFI Shield: Yes.
- Power Supply Standard / Valid Range: P48 / 30-52 V, P12 / 11-13 V.

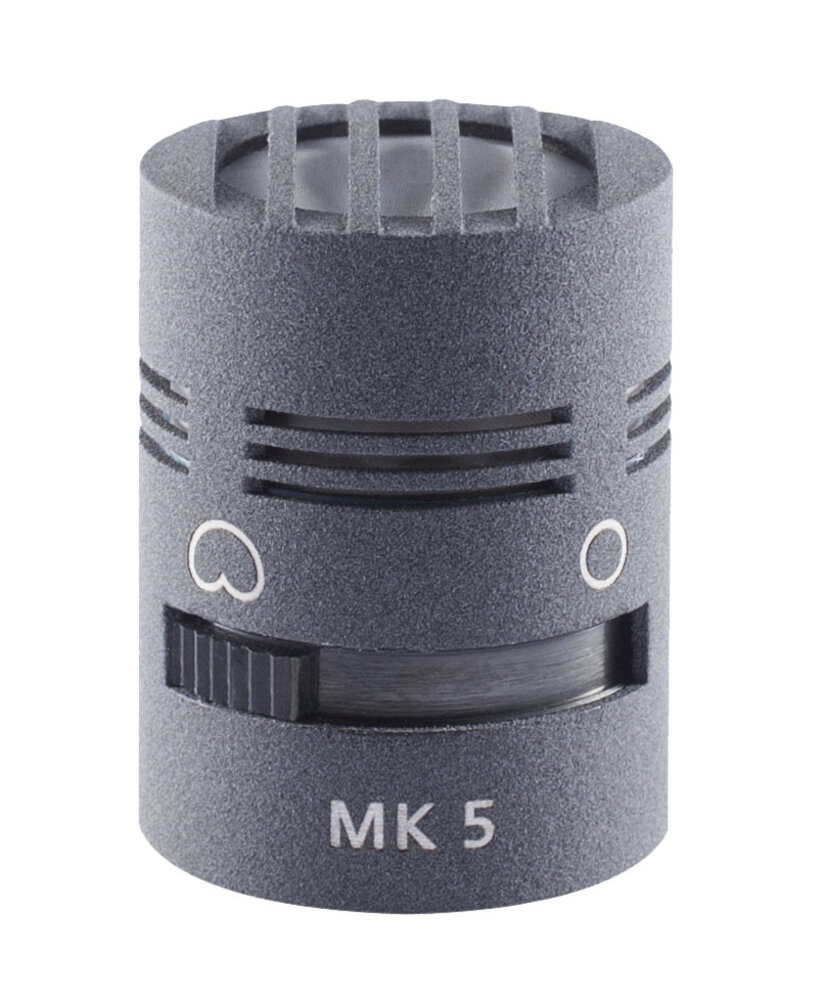

MK 5 Capsule - Omnidirectional

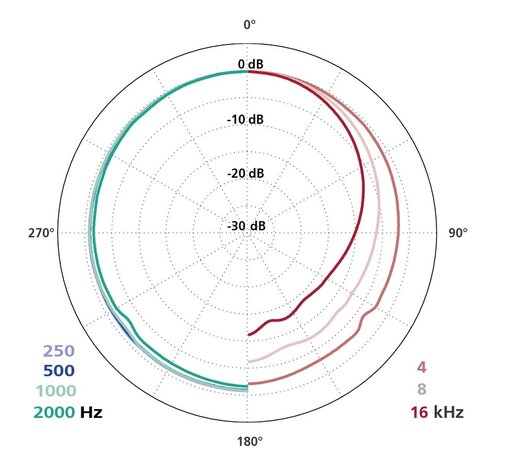

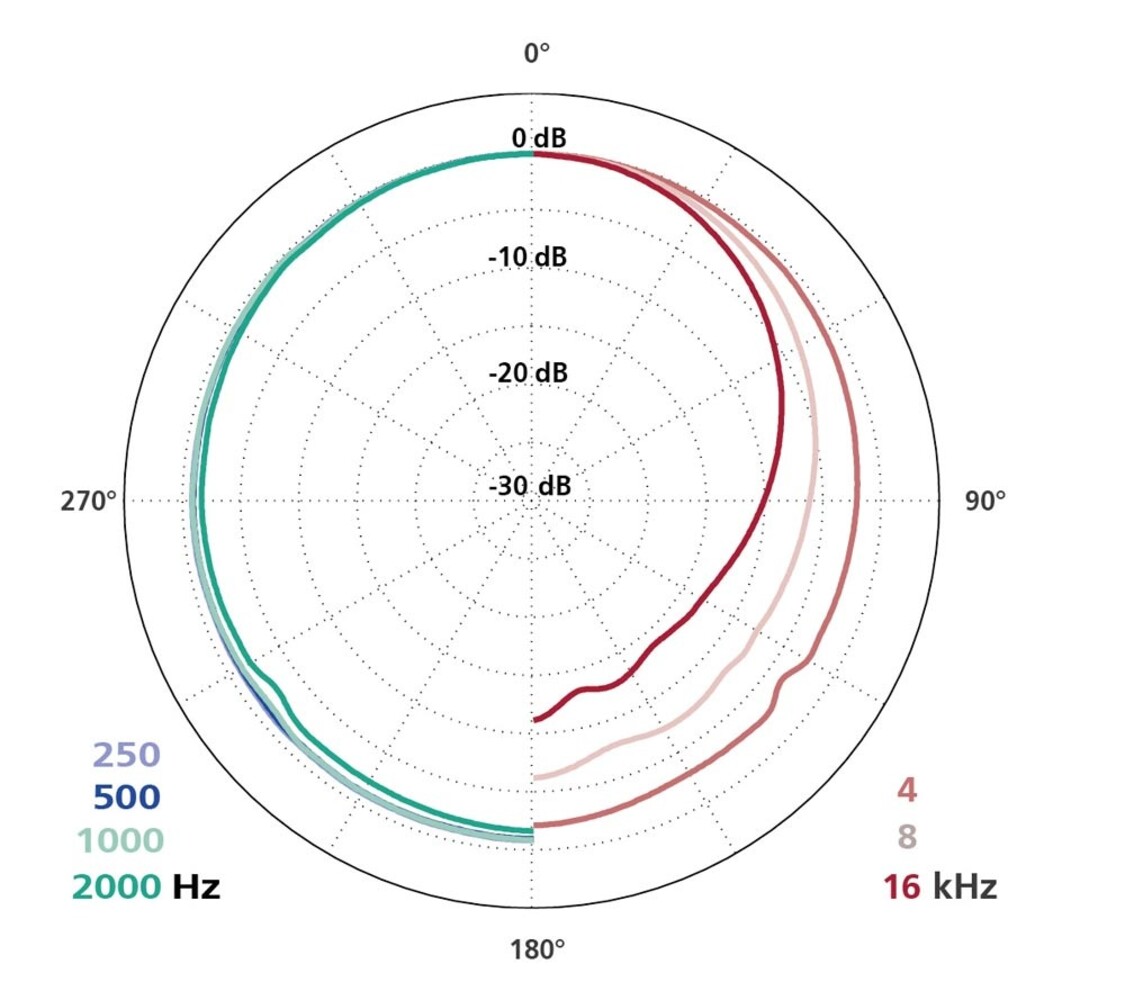

- Pickup Pattern: Omnidirectional.
- Frequency Range: 20 Hz - 28 kHz; 20 Hz - 43 kHz with CMC 6xt.
- Sensitivity: -38.0 dB (V/Pa), 12 mV/Pa.
- Equivalent Noise Level (A-weighted): 12 dB.
- Equivalent Noise Level (CCIR): 24 dB.
- Signal-to-Noise Ratio (A-weighted): 82 dB.
- Maximum Sound Pressure Level (THD < 0.5%): 132 dB SPL with CMC 6; 136 dB SPL with CMC 1.

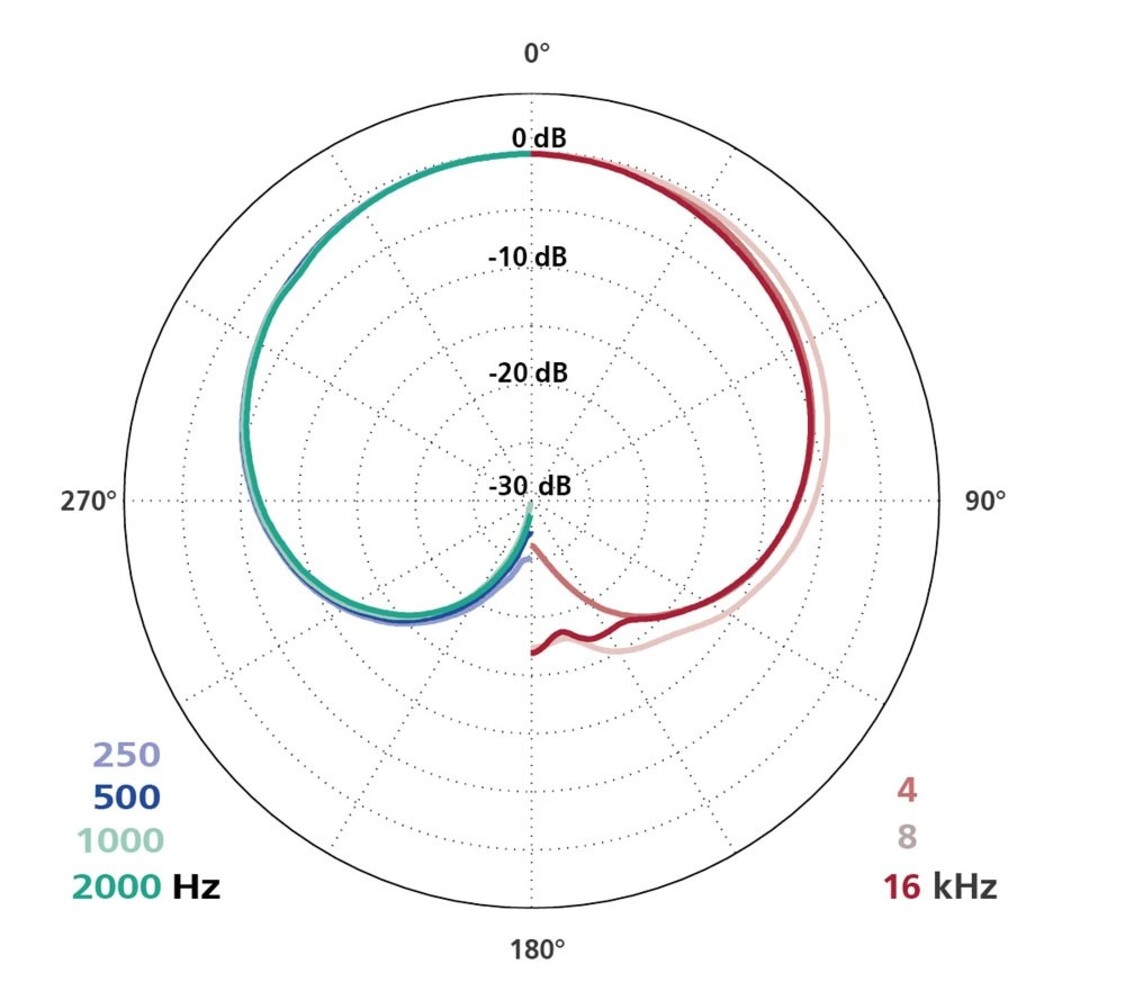

MK 5 Capsule - Cardioid
- Pickup Pattern: Cardioid.
- Frequency Range: 40 Hz - 26 kHz; 40 Hz - 41 kHz with CMC 6xt.
- Sensitivity: -37 dB (V/Pa), 14 mV/Pa.
- Equivalent Noise Level (A-weighted): 13 dB.
- Equivalent Noise Level (CCIR): 23 dB with CMC 6.
- Signal-to-Noise Ratio (A-weighted): 81 dB.
- Maximum Sound Pressure Level (THD < 0.5%): 131 dB SPL with CMC 6; 135 dB SPL with CMC 1.
- Dimensions: Length 22 mm; Diameter 20 mm.
- Weight: 17 g.
- Surface Finish: Matte gray.
- Custom Color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel).

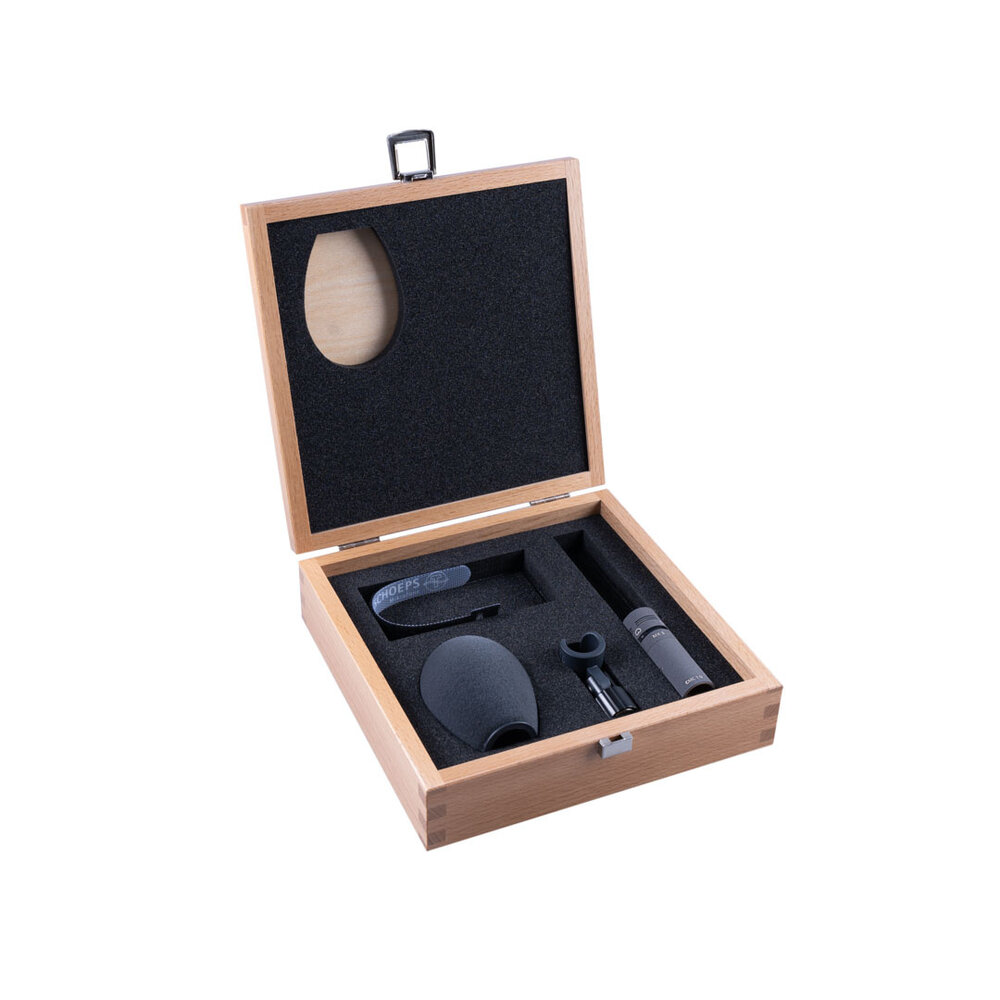

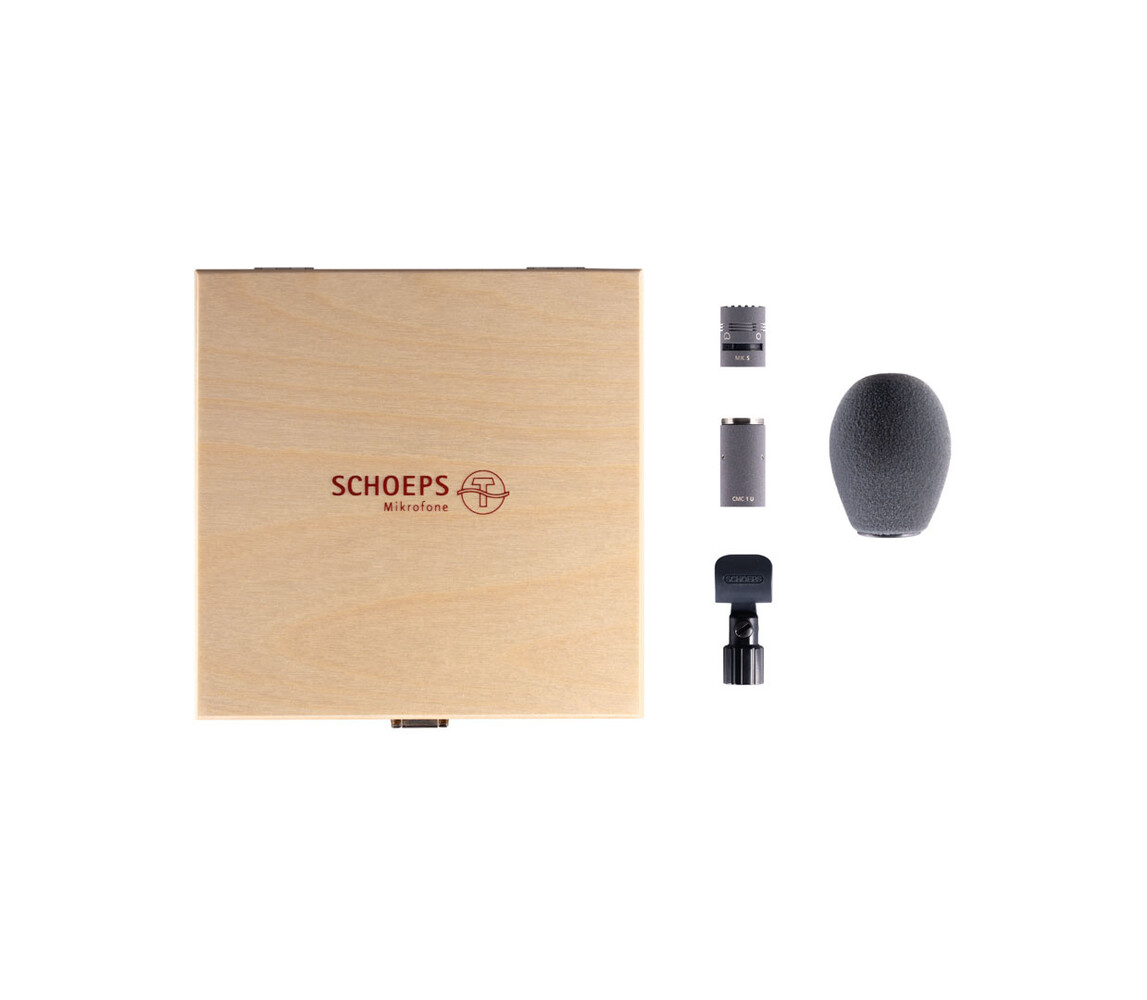

Included in this Set
- CMC 1 U.
- MK 5.

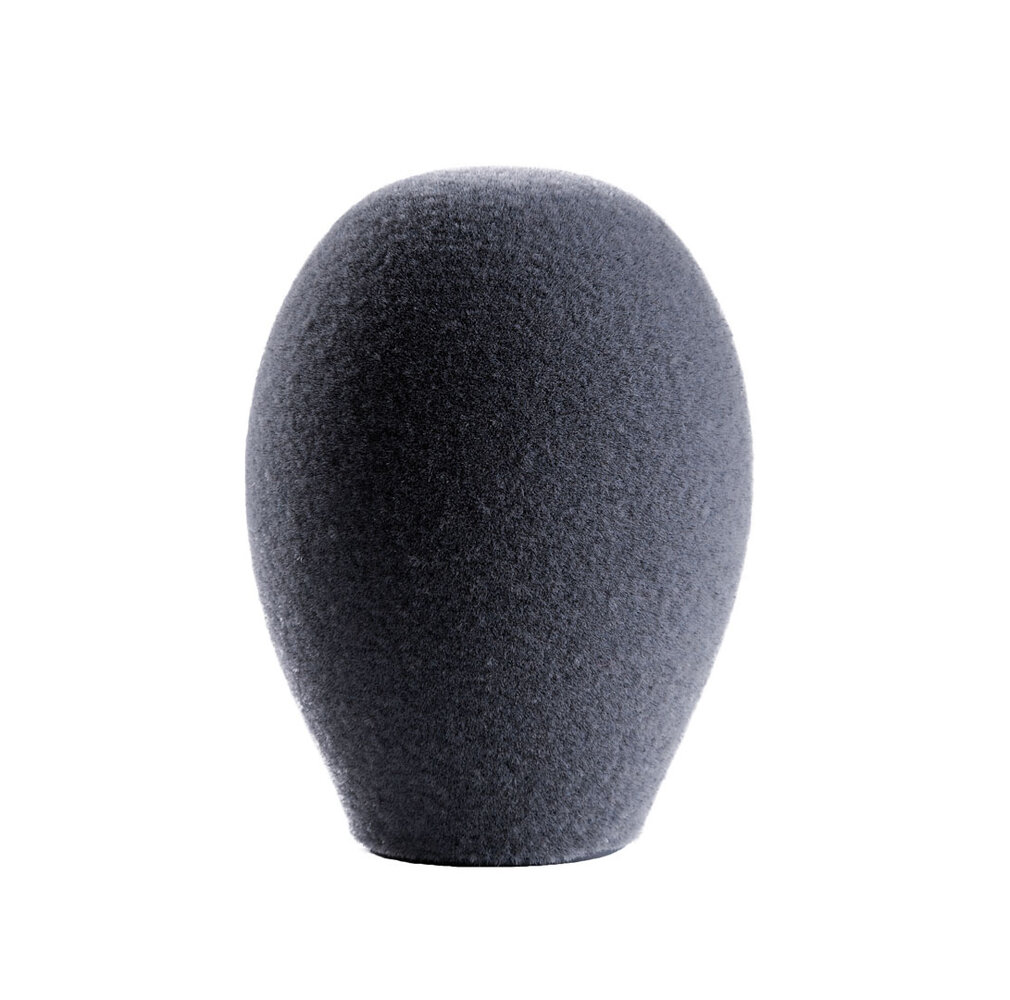

- SG 20.

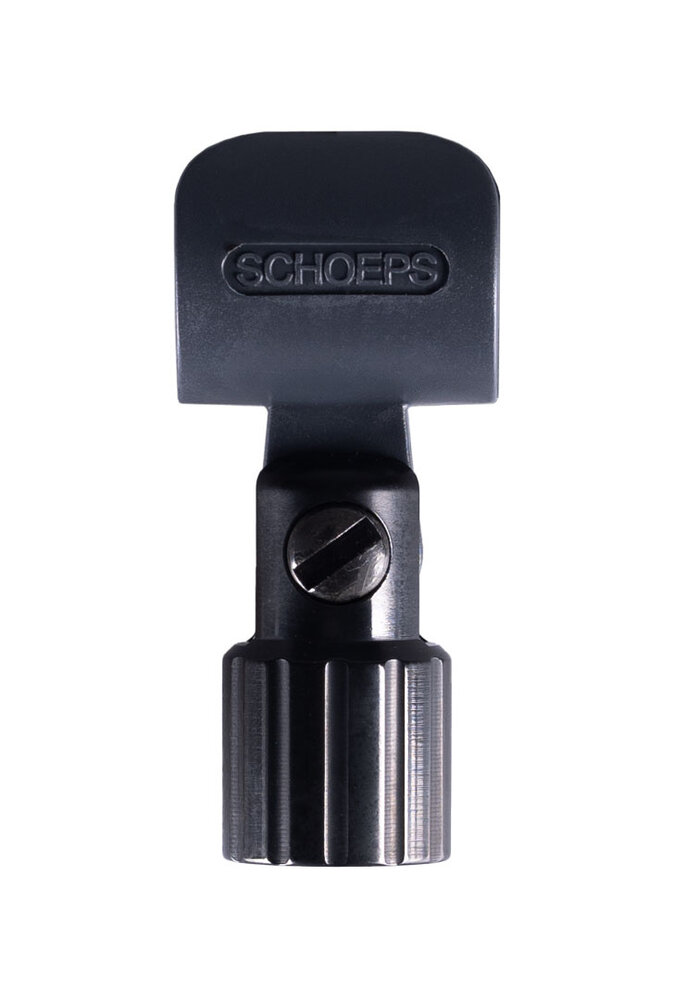

- B 5 D.

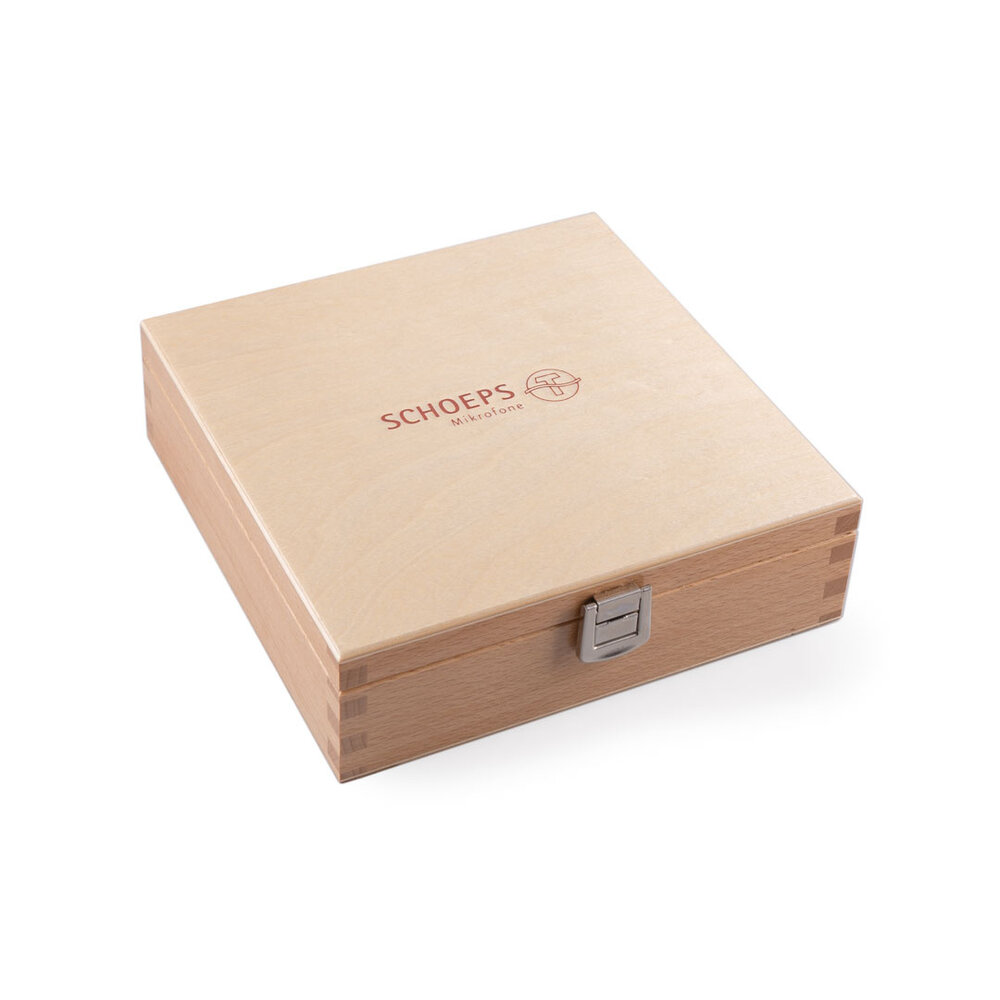

- Premium case for CMC 1.
The Schoeps CMC 1 MK 5 Mono Set is ideal for applications requiring a cardioid pickup pattern. For more information and detailed specifications, visit the official Schoeps website: schoeps.de.
Product specifications
- Article number
- SCHMonCMC17852
- SKU
- 138219
