Schoeps CMC1 MK4 Mono Set

Schoeps CMC 1 MK 4 Mono Set

The Schoeps CMC 1 MK 4 Mono Set is a high-quality microphone solution consisting of a CMC 1 microphone amplifier and an MK 4 'Cardioid' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where a cardioid pickup pattern is desired.

Main Features

• Pickup Pattern: The MK 4 capsule has a cardioid pattern, allowing for sound to be primarily captured from the front while minimizing unwanted sounds from the sides and rear.
• Consistency: High consistency of the polar pattern across the frequency range.
• Versatile Use: Suitable for various recording applications, such as film recordings, theater productions, and other situations where a cardioid recording is desired.

Technical Specifications

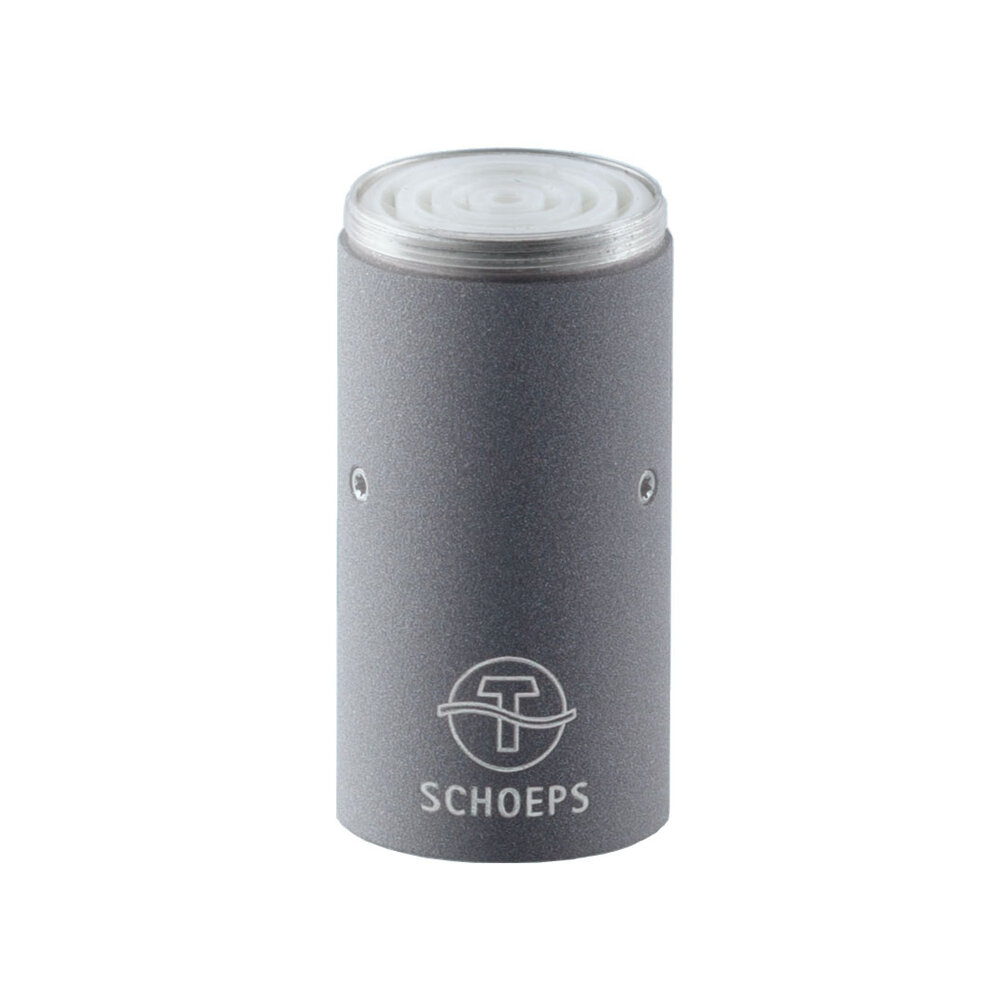

CMC 1 Microphone Amplifier

• Frequency Range: 20 Hz - 20 kHz.
• Output Voltage: 1 V (0 dBV) at 1 kΩ load.
• Current Consumption: 2 mA (P48), 3 mA (P12).
• Output Impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz).
• Maximum Cable Length: > 400 m / ~1300 ft.

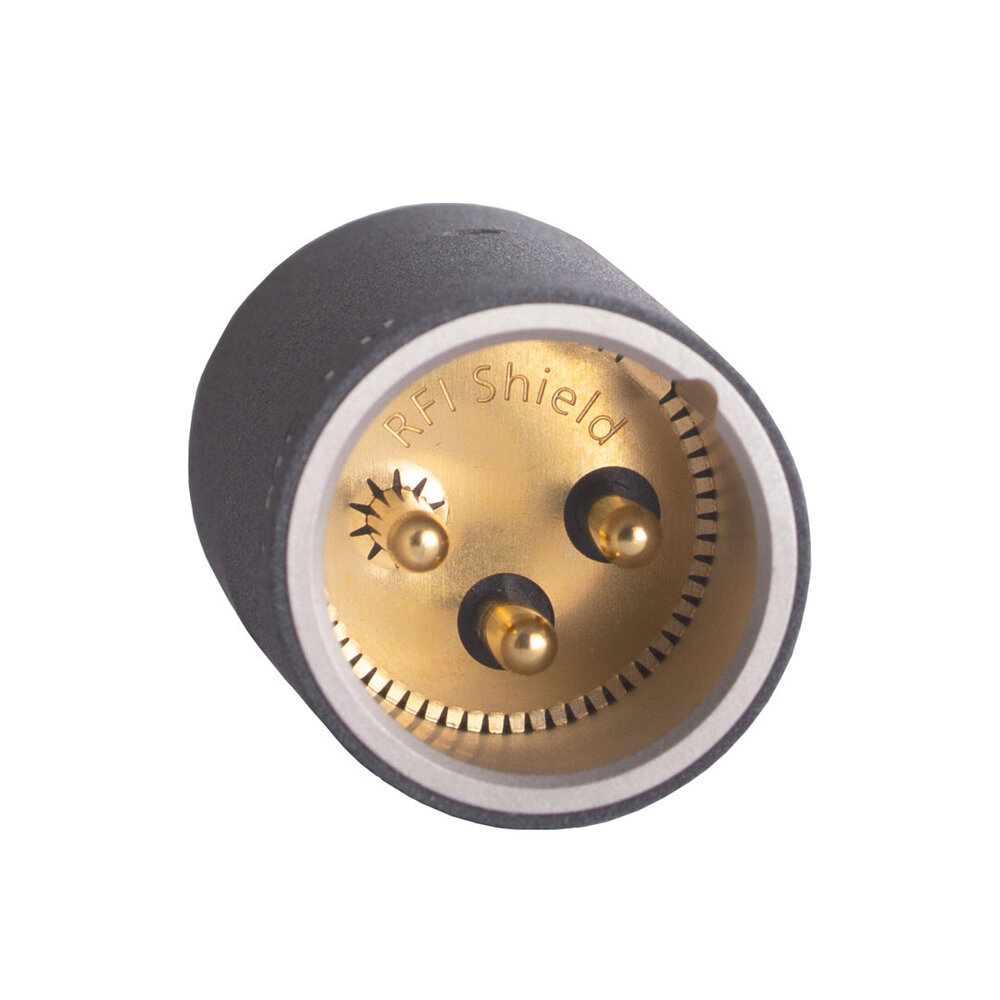

• SCHOEPS RFI Shield: Yes.
• Power Supply Standard / Valid Range: P48 / 30-52 V, P12 / 11-13 V.

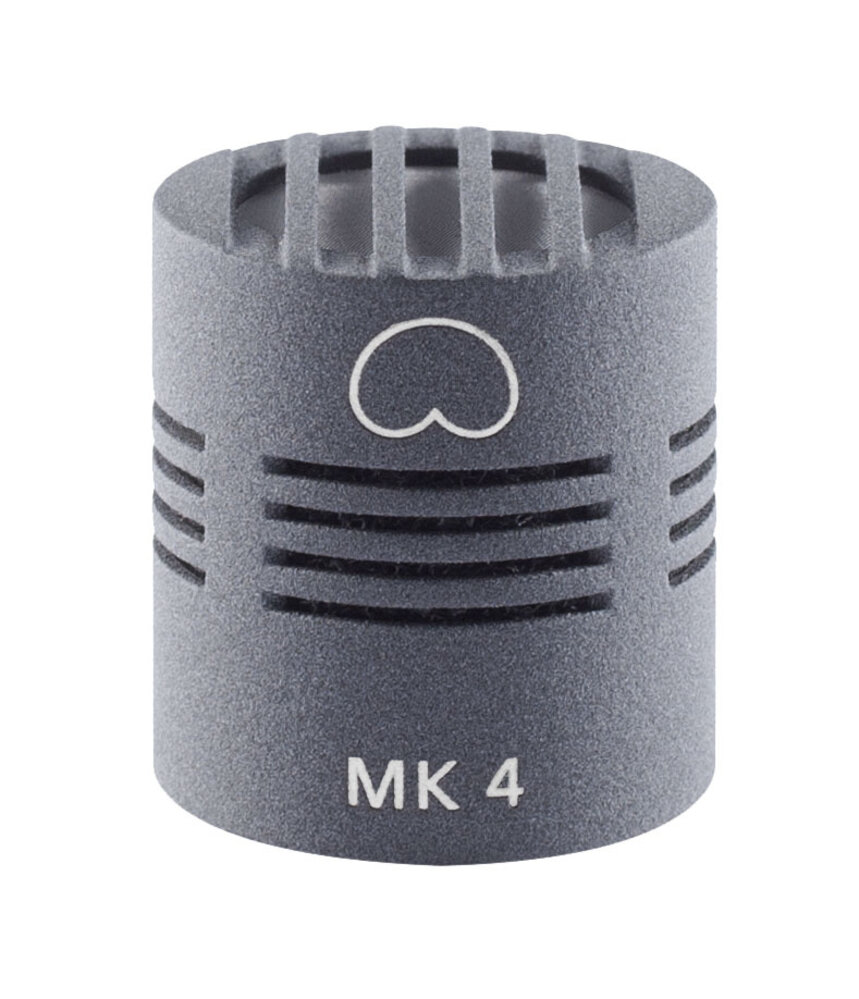

MK 4 Capsule

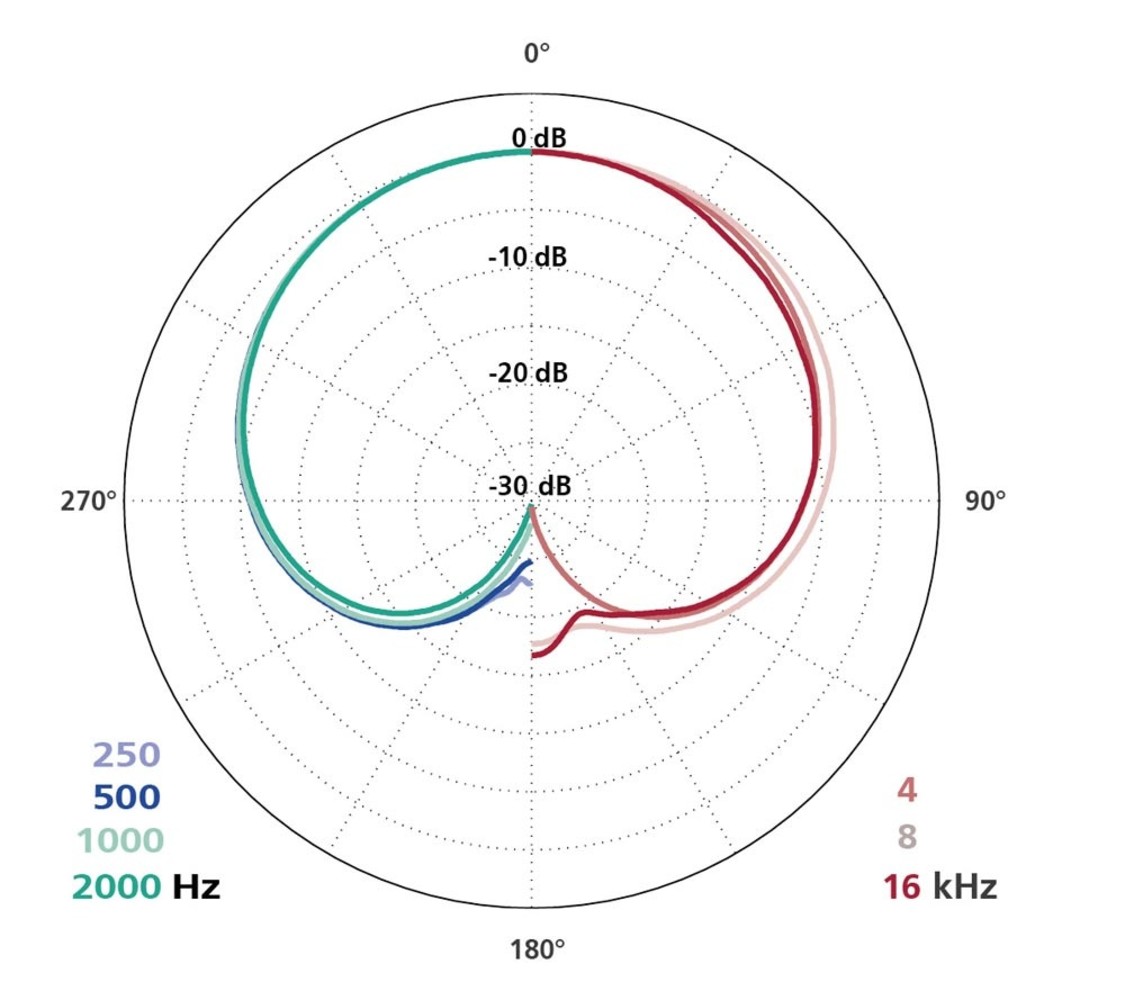

• Pickup Pattern: Cardioid.

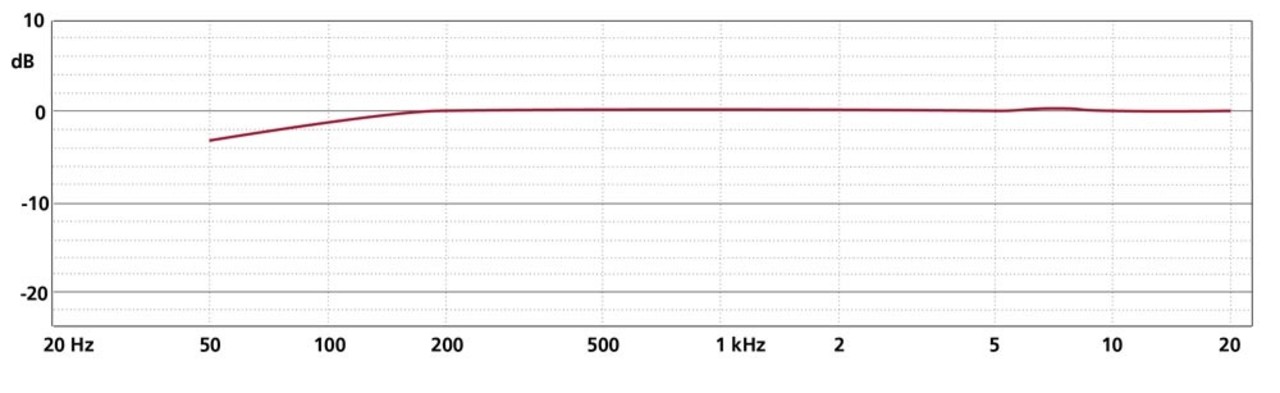

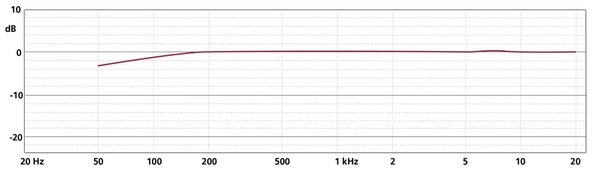

• Frequency Range: 40 Hz - 20 kHz.
• Sensitivity: -36.5 dB (V/Pa), 15 mV/Pa.
• Equivalent Noise Level (A-weighted): 13 dB.
• Equivalent Noise Level (CCIR): 23 dB with CMC 6.
• Signal-to-Noise Ratio (A-weighted): 81 dB.
• Maximum Sound Pressure Level (THD < 0.5%): 131 dB SPL with CMC 6; 135 dB SPL with CMC 1.
• Dimensions: Length 22 mm; Diameter 20 mm.
• Weight: 17 g.
• Surface Finish: Matte gray.
• Custom Color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel).

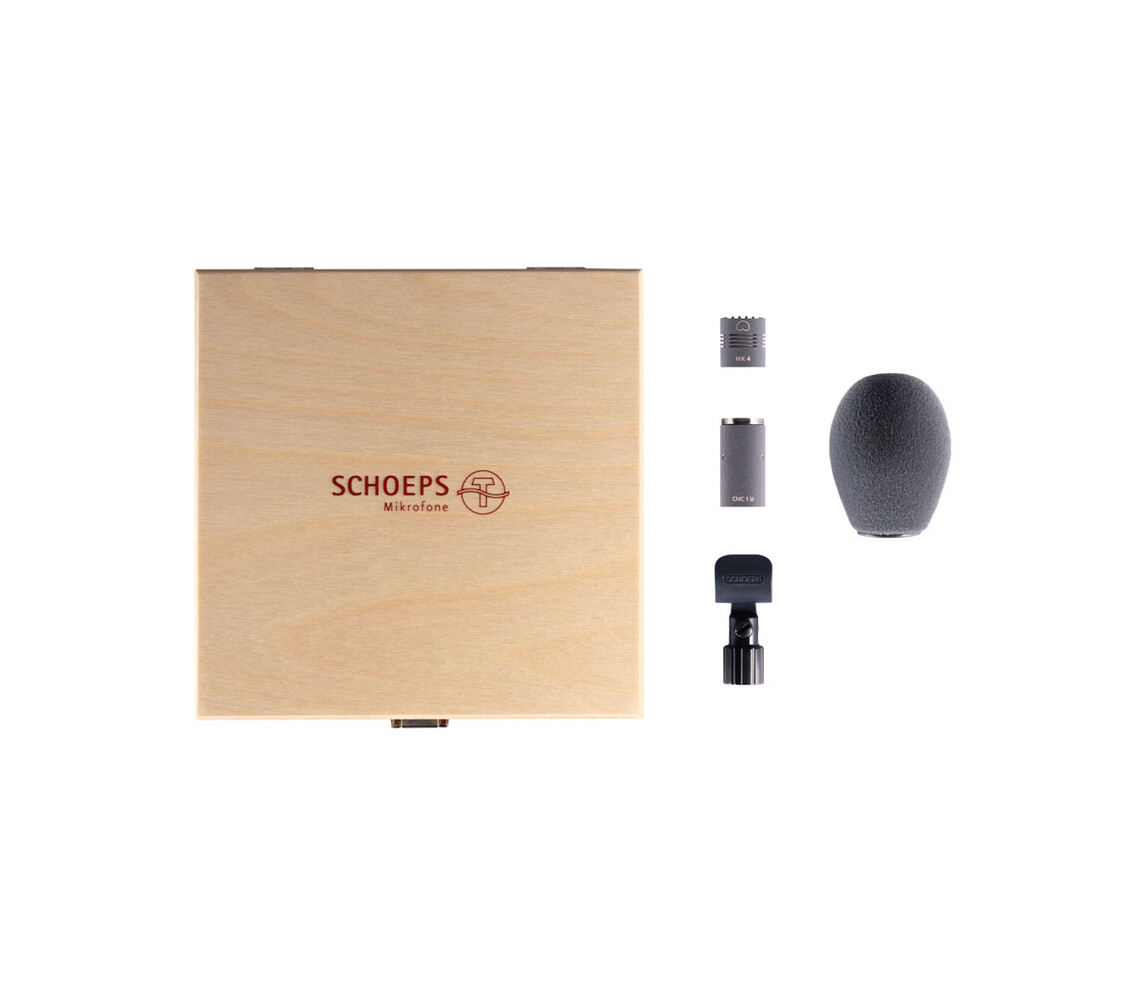

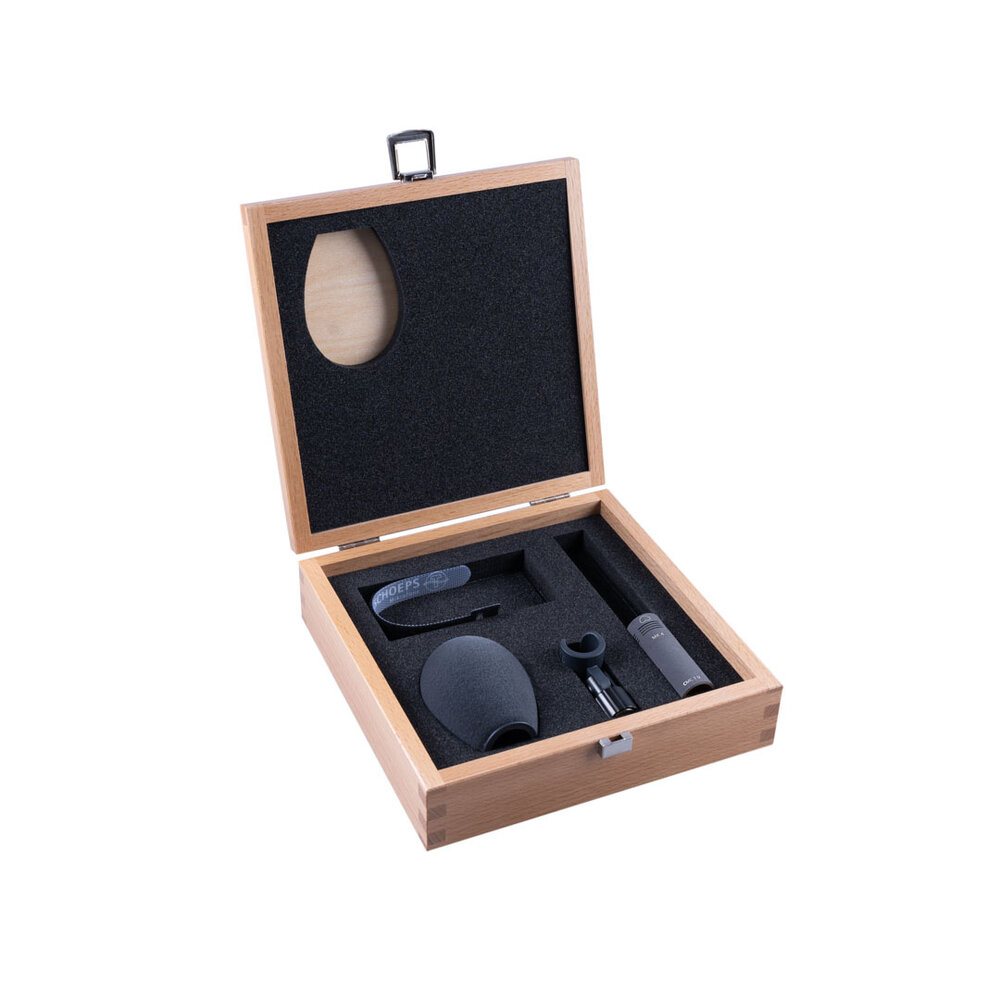

Included in this Set

• 1x CMC 1 U.
• 1x MK 4.

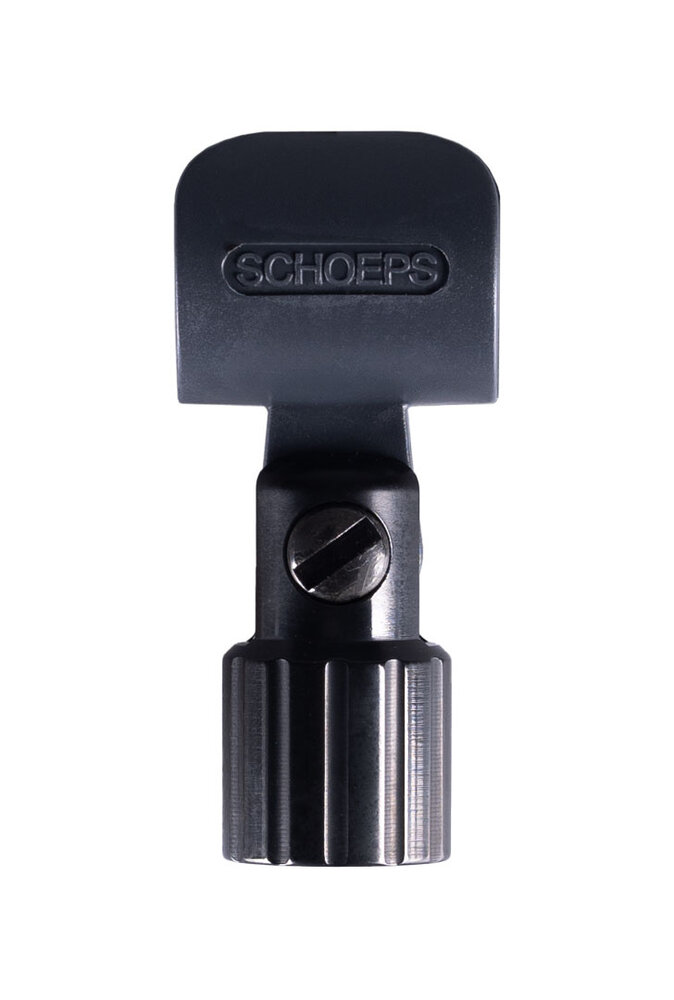

• 1x SG 20.

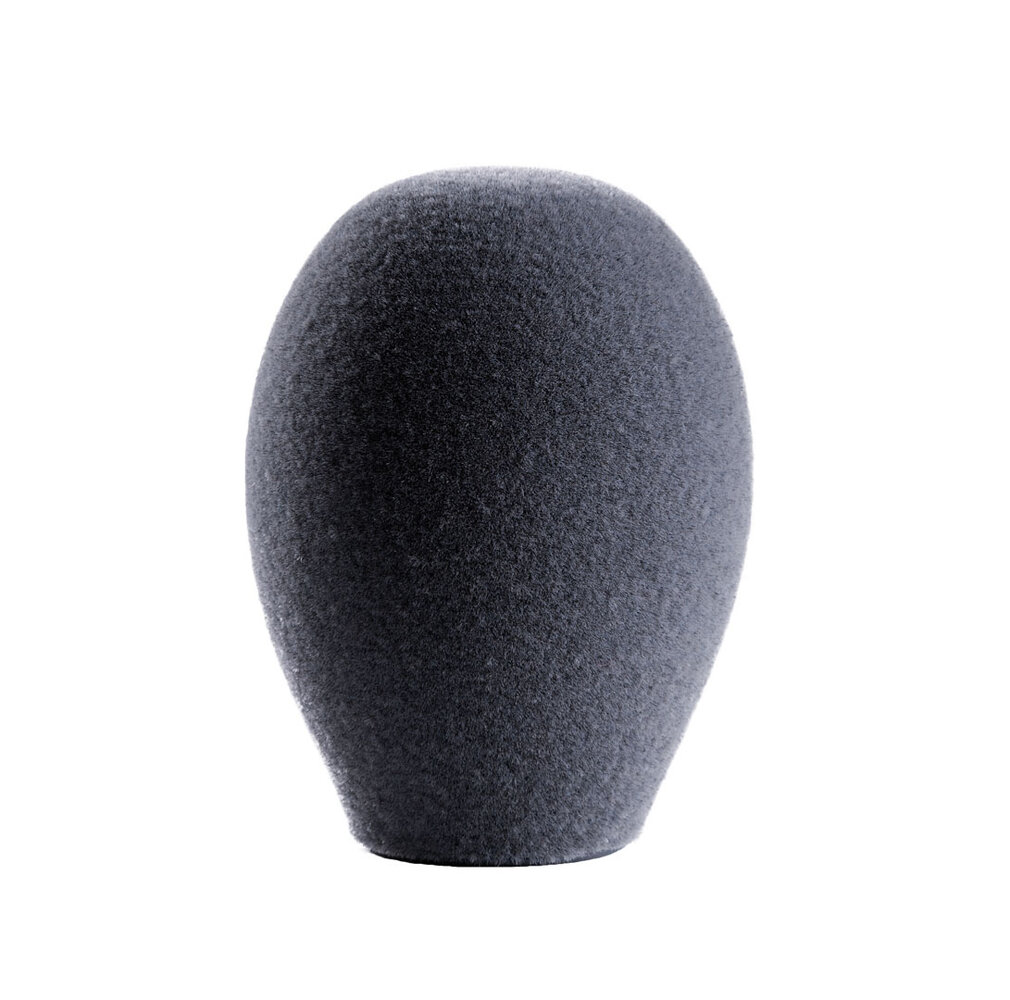

• 1x B 5 D.

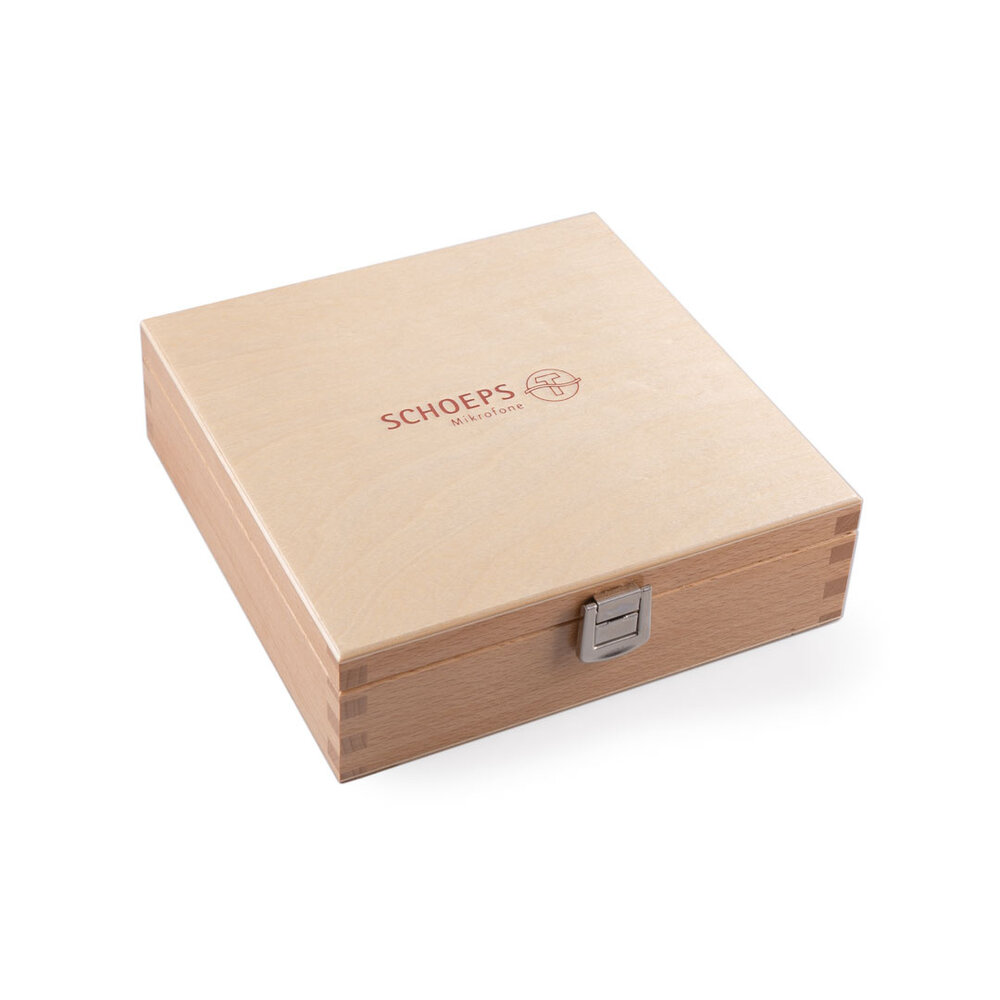

• Premium case for CMC 1.

The Schoeps CMC 1 MK 4 Mono Set is ideal for applications requiring a cardioid pickup pattern. For more information and detailed specifications, visit the official Schoeps website: schoeps.de.
