Schoeps CMC1 MK21 Mono Set
Schoeps CMC 1 MK 21 Mono Set
The Schoeps CMC 1 MK 21 Mono Set is a high-quality microphone solution consisting of a CMC 1 microphone amplifier and an MK 21 'Wide Cardioid' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where a wide cardioid pickup pattern is desired.
Main Features
- Pickup Pattern: The MK 21 capsule has a wide cardioid pattern, allowing for sound to be captured primarily from the front while minimizing unwanted sounds from the sides and rear.
- High-Frequency Boost: The sound inlet of the MK 21 provides excellent sound quality over a wide frequency range, making it ideal for dynamic recordings.
- Versatile Use: Suitable for various recording applications, such as film recordings, theater productions, and other situations requiring a wide cardioid recording.
Technical Specifications
CMC 1 Microphone Amplifier
- Frequency Range: 20 Hz – 20 kHz.
- Output Voltage: 1 V (0 dBV) at 1 kΩ load.
- Current Consumption: 2 mA (P48), 3 mA (P12).
- Output Impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz).
- Maximum Cable Length: > 400 m / ~1300 ft.

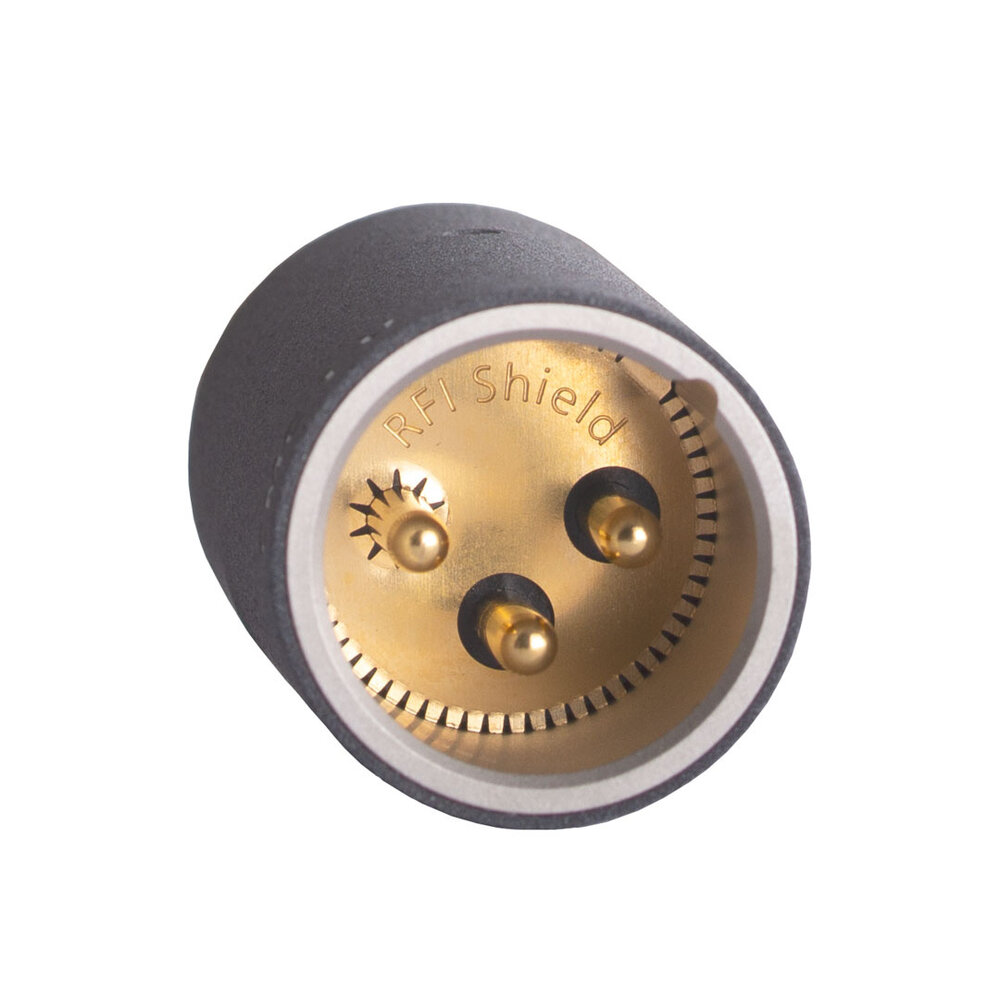

- SCHOEPS RFI Shield: Yes.
- Power Supply Standard / Valid Range: P48 / 30-52 V, P12 / 11-13 V.

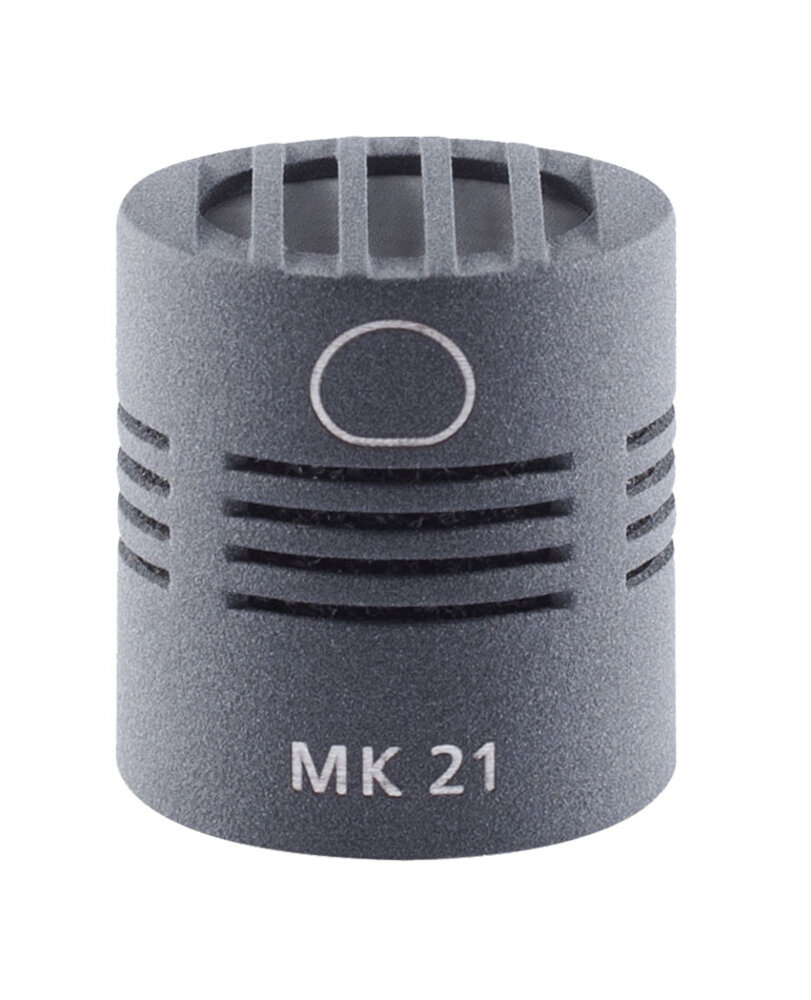

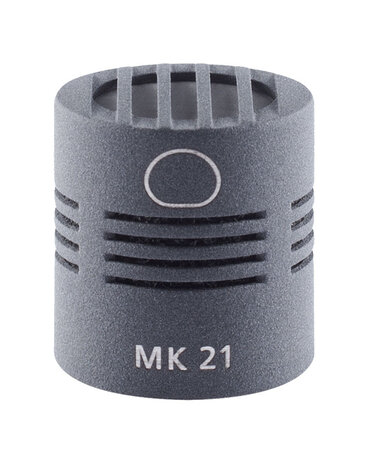

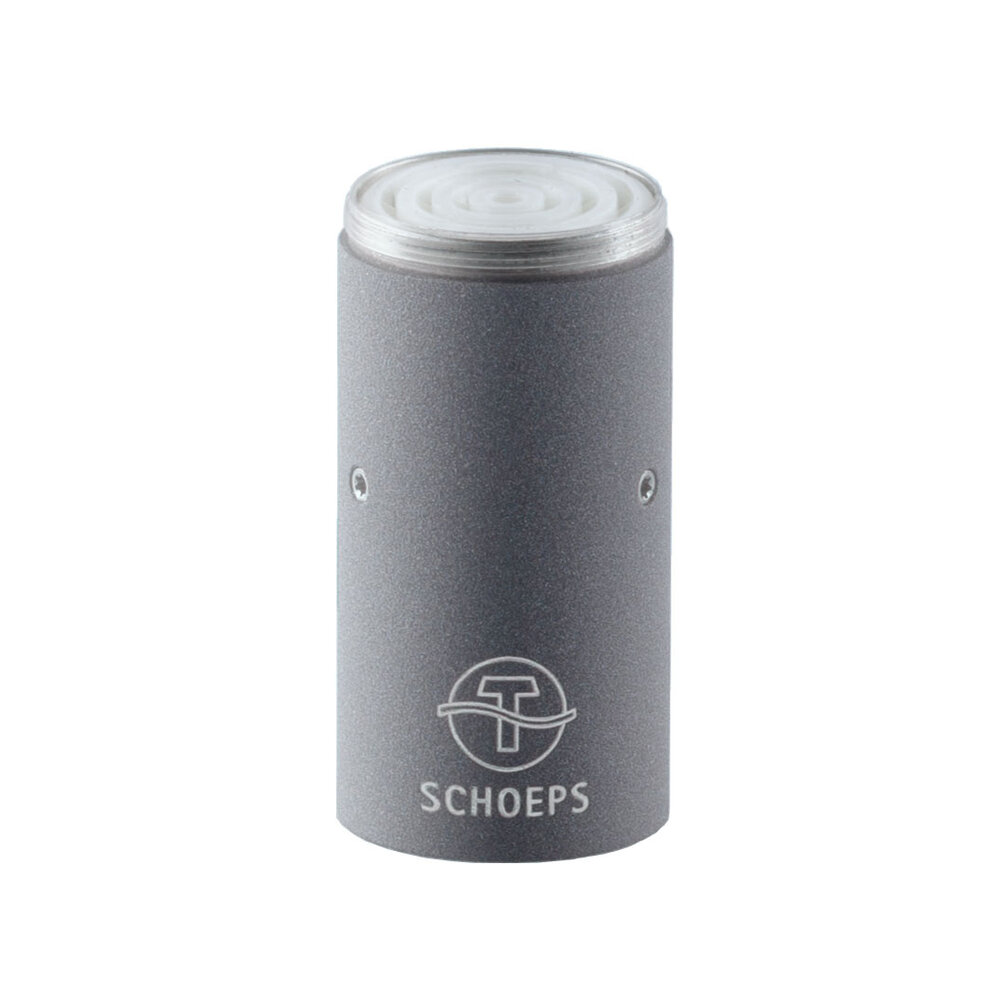

MK 21 Capsule

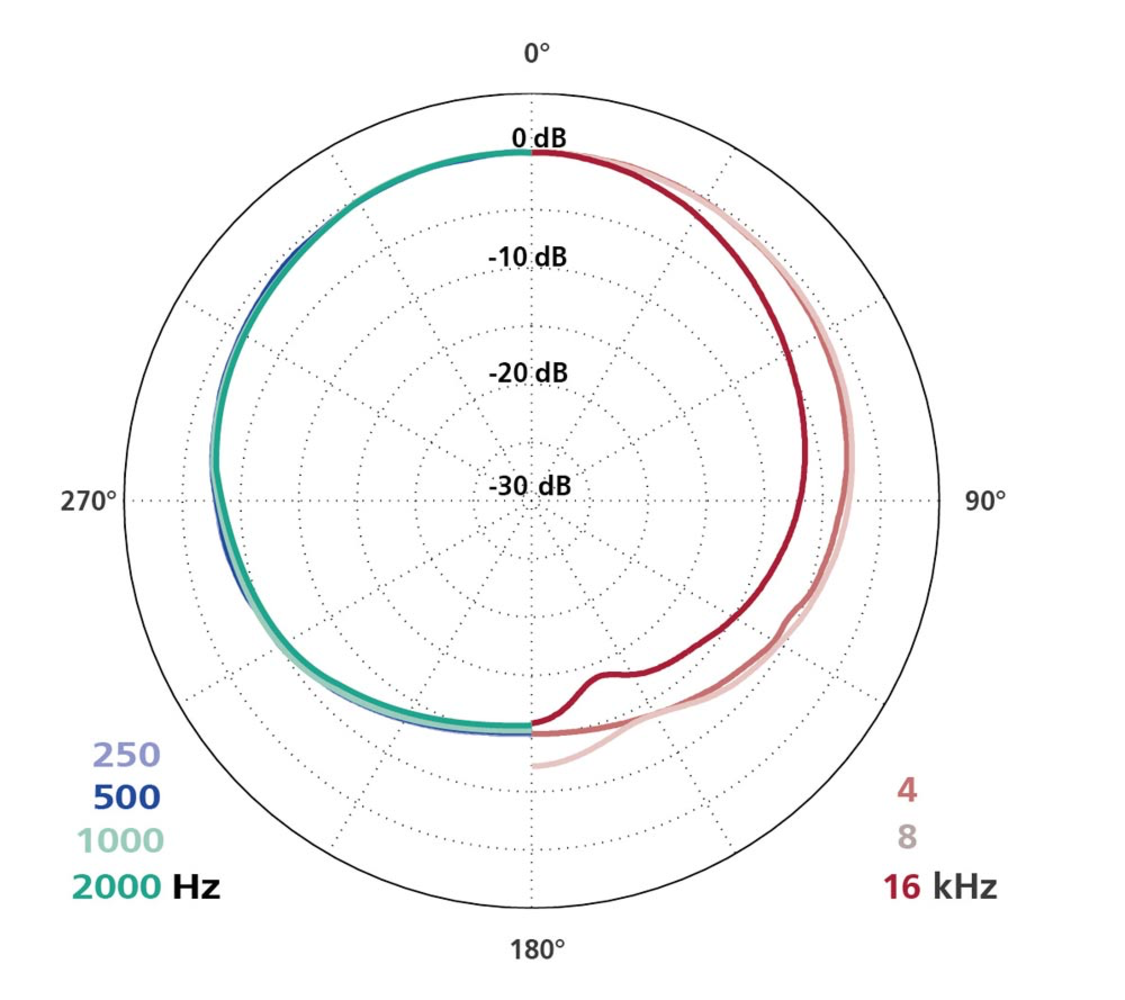

- Pickup Pattern: Wide Cardioid.

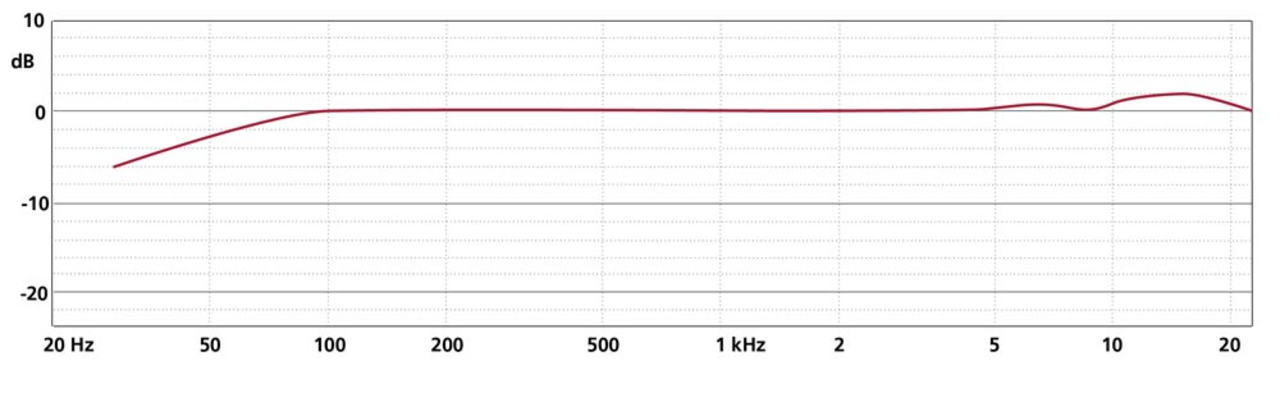

- Frequency Range: 30 Hz - 29 kHz with CMC 6 / CMR; 30 Hz - 44 kHz with CMC 6xt.
- Sensitivity: -37 dB (V/Pa), 14 mV/Pa with CMC 6.
- Equivalent Noise Level (A-weighted): 13 dB with CMC 6.
- Equivalent Noise Level (CCIR): 23 dB with CMC 6.
- Signal-to-Noise Ratio (A-weighted): 81 dB with CMC 6.
- Maximum Sound Pressure Level (THD < 0.5%): 131 dB SPL with CMC 6.
- Dimensions: Length 22 mm; Diameter 20 mm.
- Weight: 17 g.
- Surface Finish: Matte gray.
- Custom Color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel).

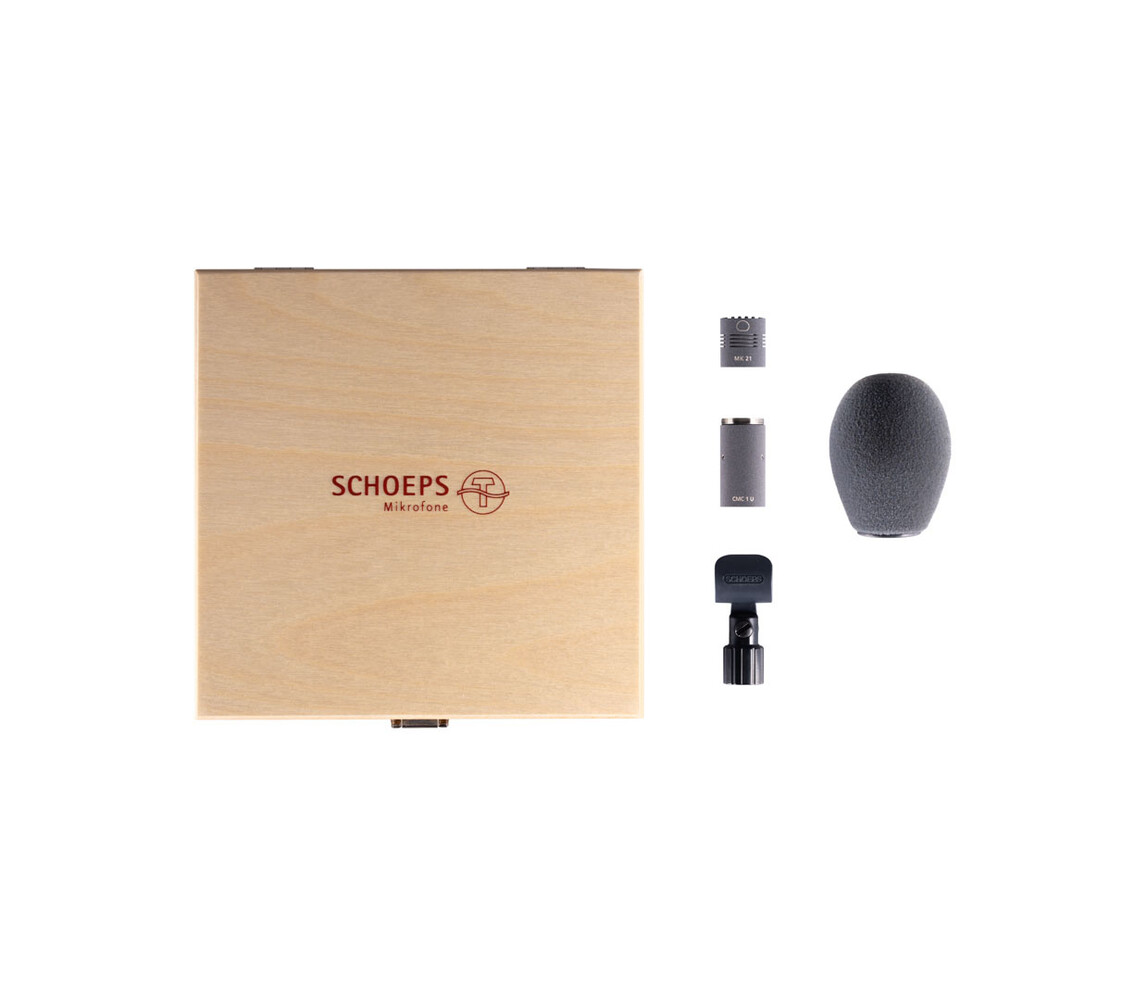

Included in this Set
- 1x CMC 1 U.
- 1x MK 21.

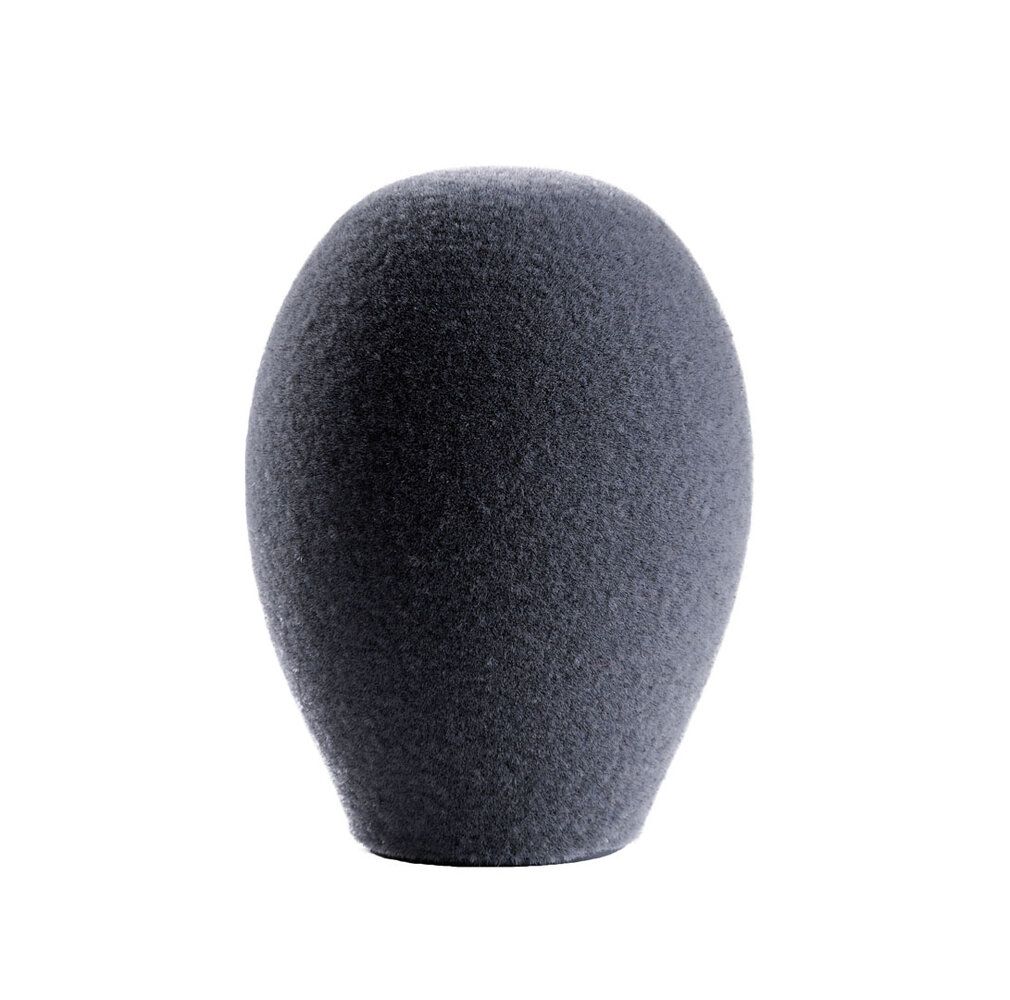

- 1x SG 20.

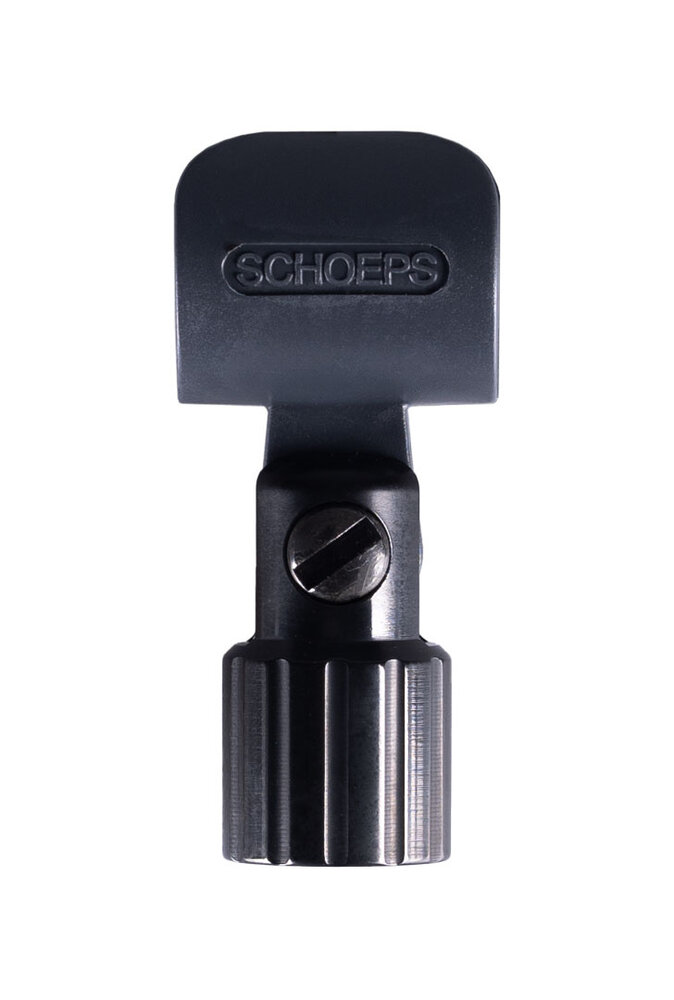

- 1x B 5.

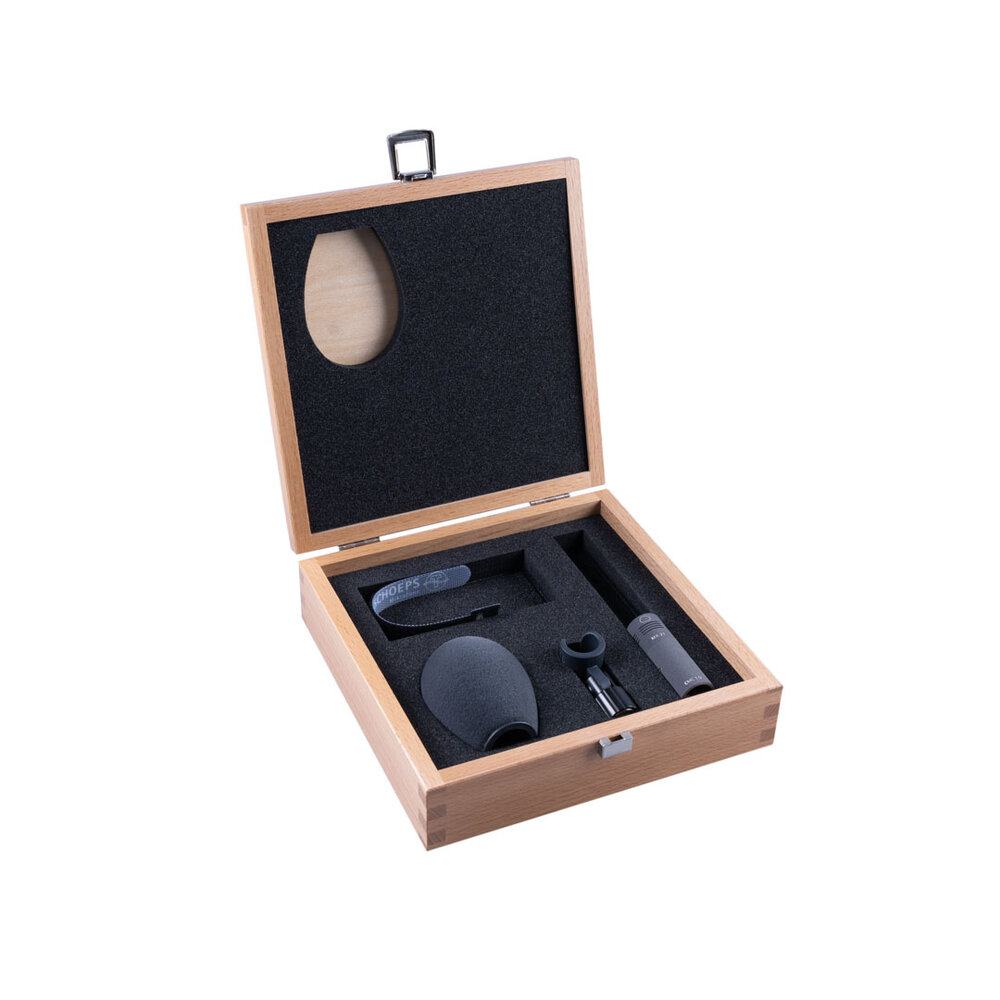

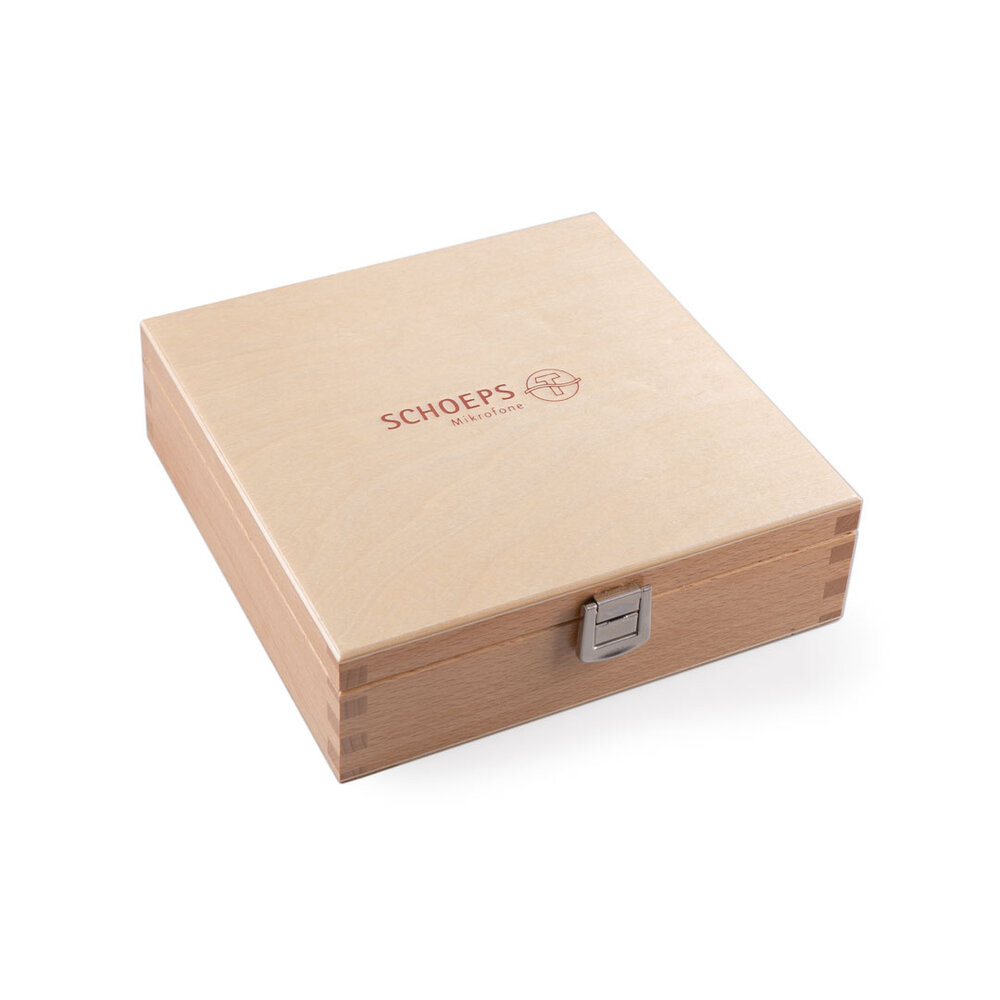

- Premium case for CMC 1.
The Schoeps CMC 1 MK 21 Mono Set is ideal for applications requiring a wide cardioid pickup pattern. For more information and detailed specifications, visit the official Schoeps website: schoeps.de.
Product specifications
- Article number
- SCHMonCMC17849
- SKU
- 138203
