Schoeps CMC1 MK2 Mono Set

5% sale
Product description
Schoeps CMC 1 MK 2 Mono Set The Schoeps CMC 1 MK 2 Mono Set is a high-quality microphone solution consisting of a CMC 1 microphone amplifier and an MK 2 'Omnidirectional' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where an omnidirectional pickup pattern is desired. Main Feat...

Schoeps CMC 1 MK 2 Mono Set

The Schoeps CMC 1 MK 2 Mono Set is a high-quality microphone solution consisting of a CMC 1 microphone amplifier and an MK 2 'Omnidirectional' capsule. This combination provides natural and balanced sound reproduction, ideal for various recording applications where an omnidirectional pickup pattern is desired.

Main Features

  • Pickup Pattern: The MK 2 capsule has an omnidirectional pattern, allowing for sound to be captured from all directions, making it ideal for ambient sound and acoustic ensembles.
  • High-Frequency Boost: The sound inlet of the MK 2 is narrower than that of other pressure transducers, resulting in a slight, purely acoustic response elevation above 6 kHz. This compensates for high-frequency loss in diffuse sounds, preserving natural sound quality.
  • Versatile Use: Suitable for A/B stereo recording and Decca Tree setups, making it an excellent choice for film recordings, concert captures, and other situations requiring high sound quality.

Technical Specifications

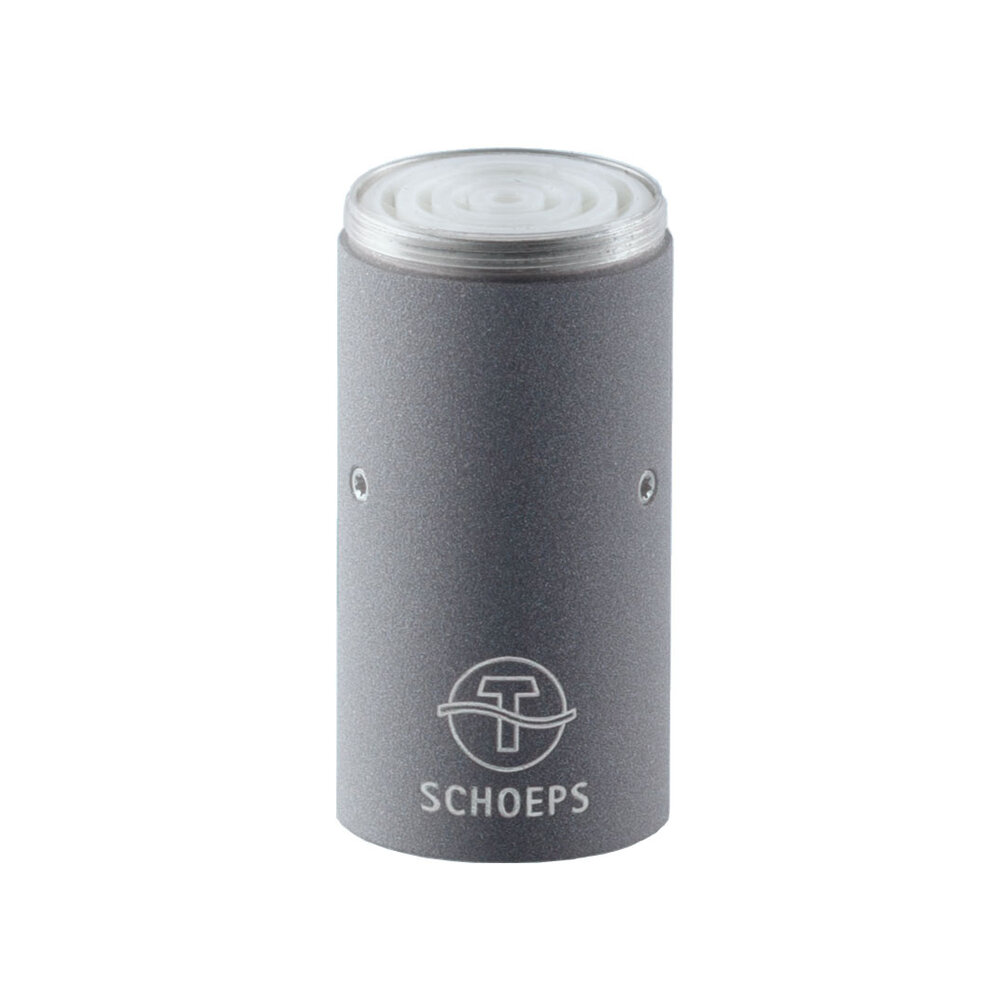

CMC 1 Microphone Amplifier

  • Frequency Range: 20 Hz – 20 kHz.
  • Output Voltage: 1 V (0 dBV) at 1 kΩ load.
  • Current Consumption: 2 mA (P48), 3 mA (P12).
  • Output Impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz).
  • Maximum Cable Length: > 400 m / ~1300 ft.

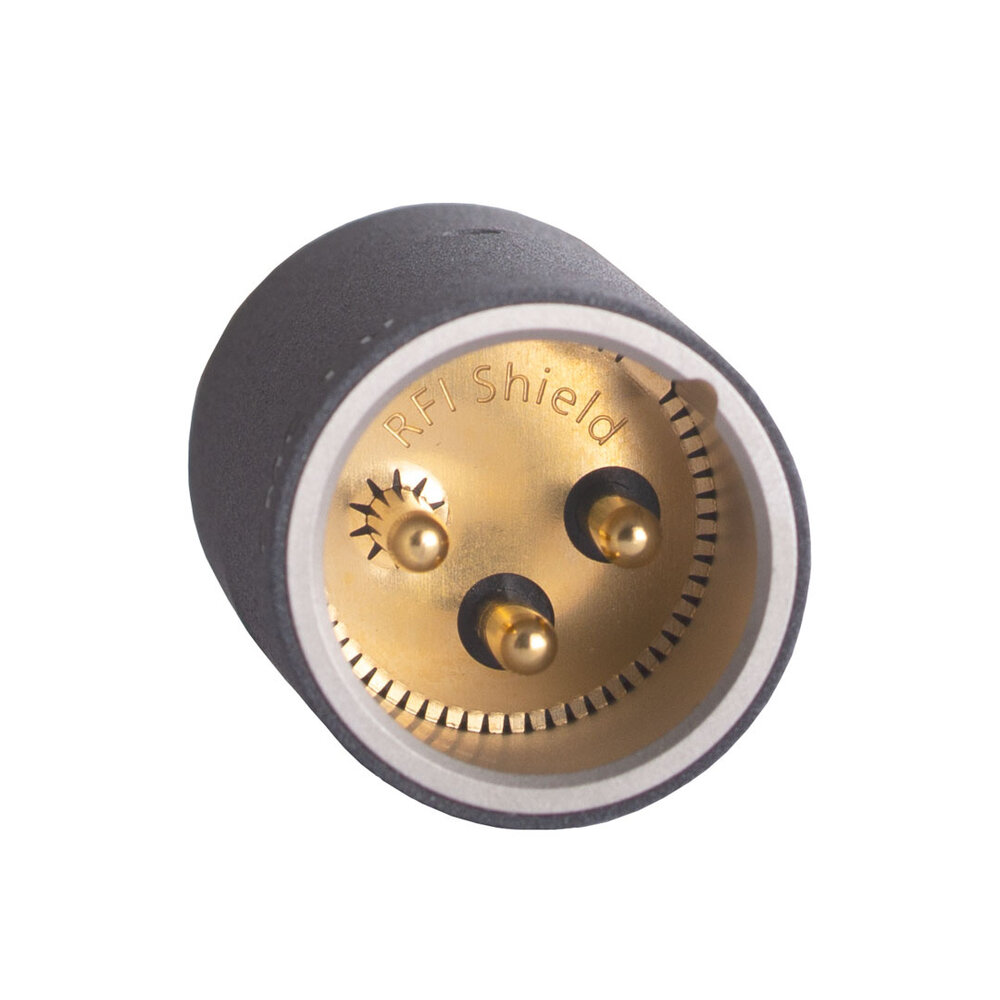

  • SCHOEPS RFI Shield: Yes.
  • Power Supply Standard / Valid Range: P48 / 30-52 V, P12 / 11-13 V.

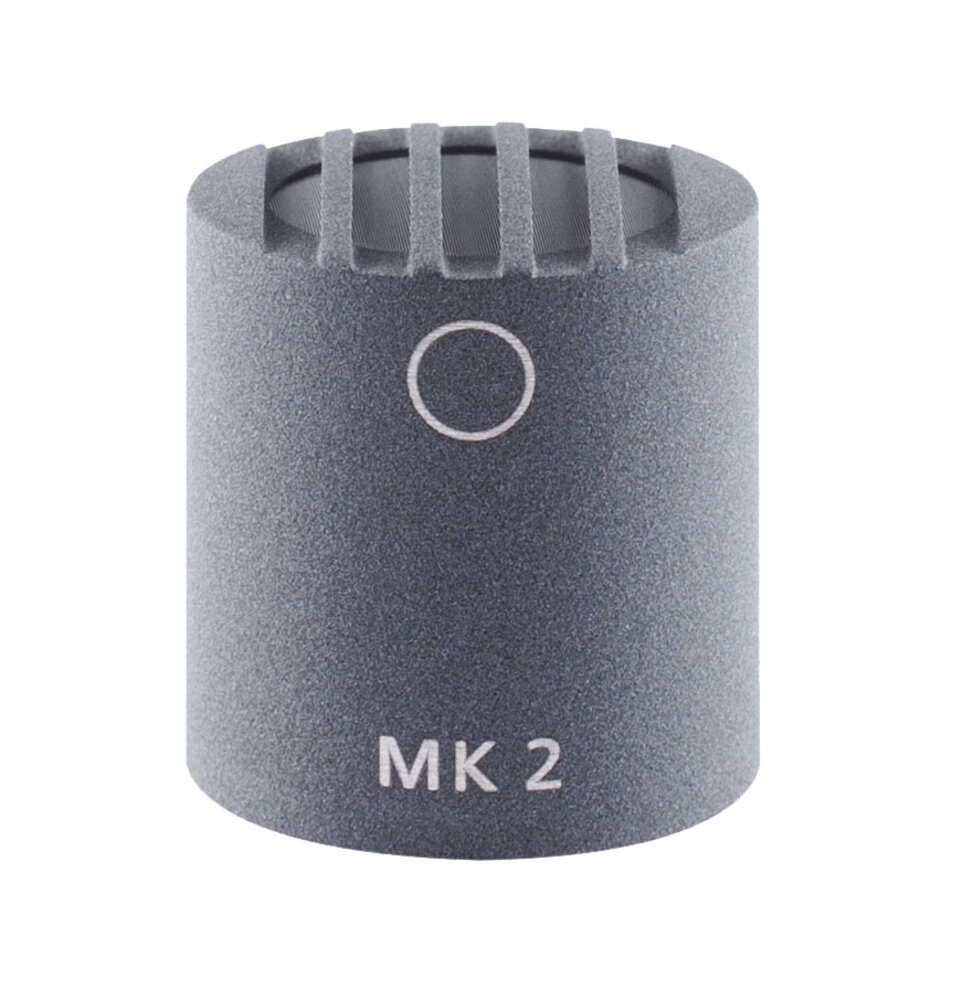

MK 2 Capsule

  • Pickup Pattern: Omnidirectional.
  • Frequency Range: 20 Hz - 26 kHz; 20 Hz - 42 kHz with CMC 6xt.
  • Sensitivity: -35.5 dB (V/Pa), 17 mV/Pa.
  • Equivalent Noise Level (A-weighted): 10 dB.
  • Equivalent Noise Level (CCIR): 22 dB.
  • Signal-to-Noise Ratio (A-weighted): 84 dB.
  • Maximum Sound Pressure Level (THD < 0.5%): 130 dB SPL with CMC 6; 134 dB SPL with CMC 1.
  • Dimensions: Length 22 mm; Diameter 20 mm.
  • Weight: 17 g.
  • Surface Finish: Matte gray.
  • Custom Color: Chromagreen, Smoked Silver (looks like the classic Schoeps nickel).

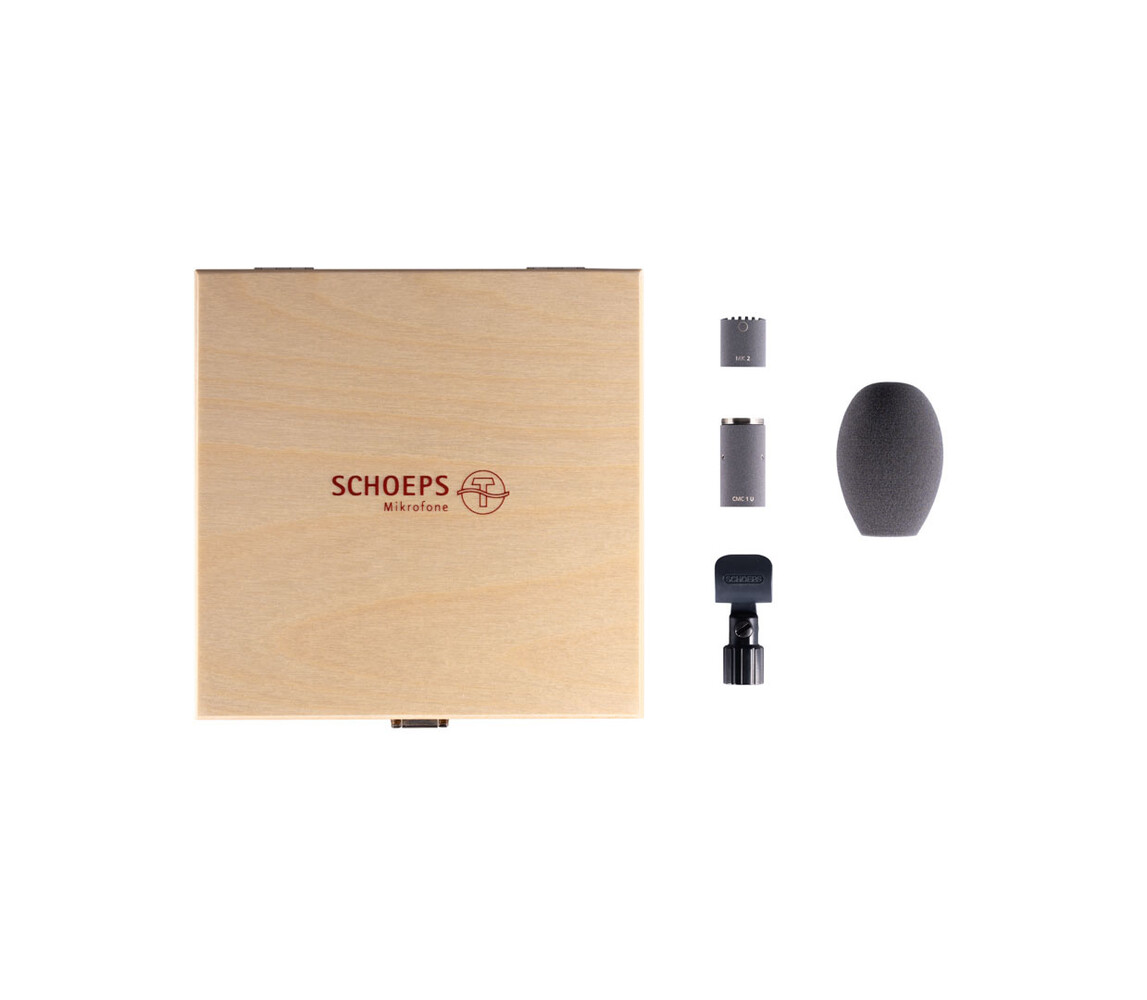

Included in this Set

  • 1x CMC 1 U.
  • 1x MK 2.

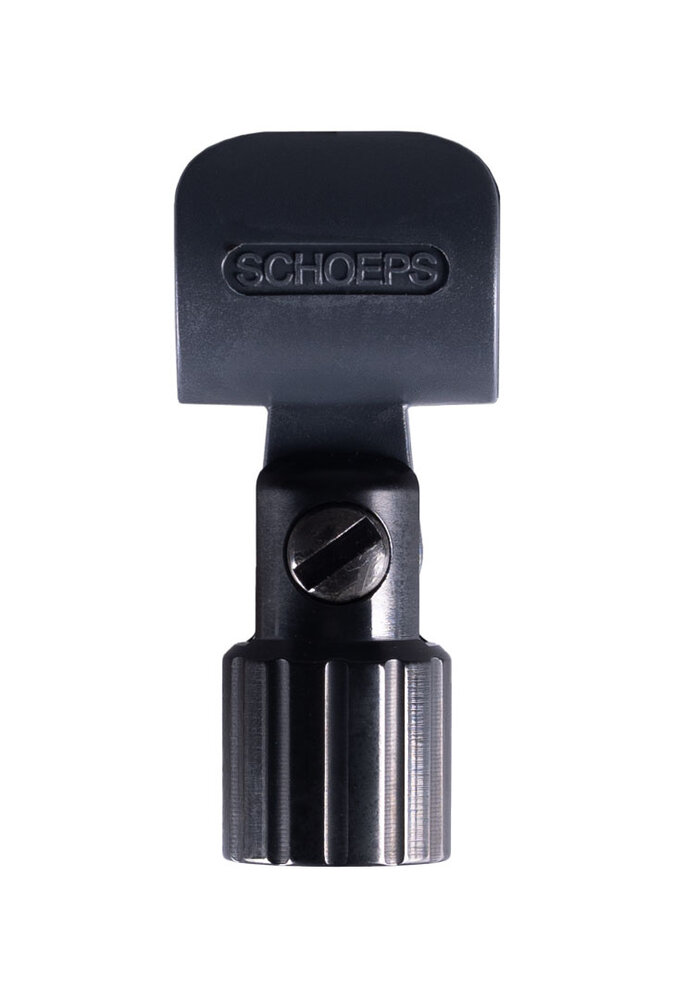

  • 1x SG 20.

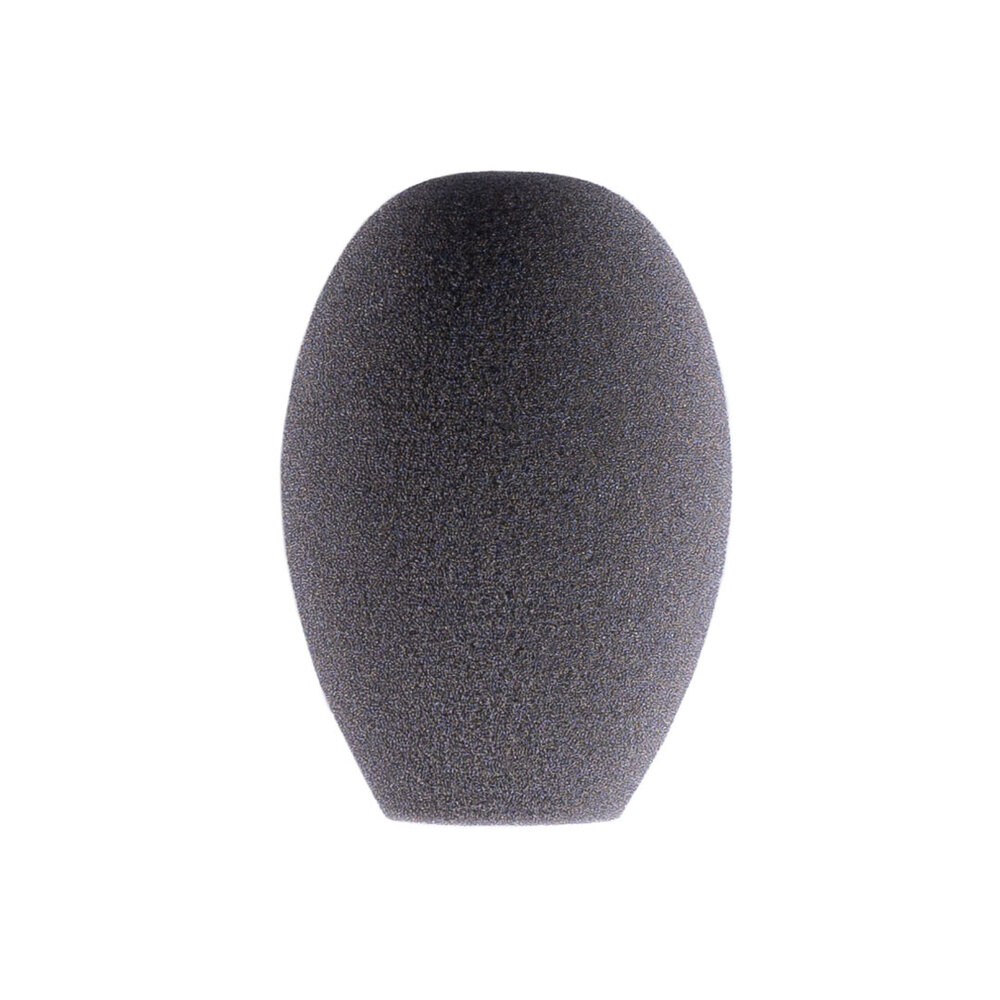

  • 1x B 5.

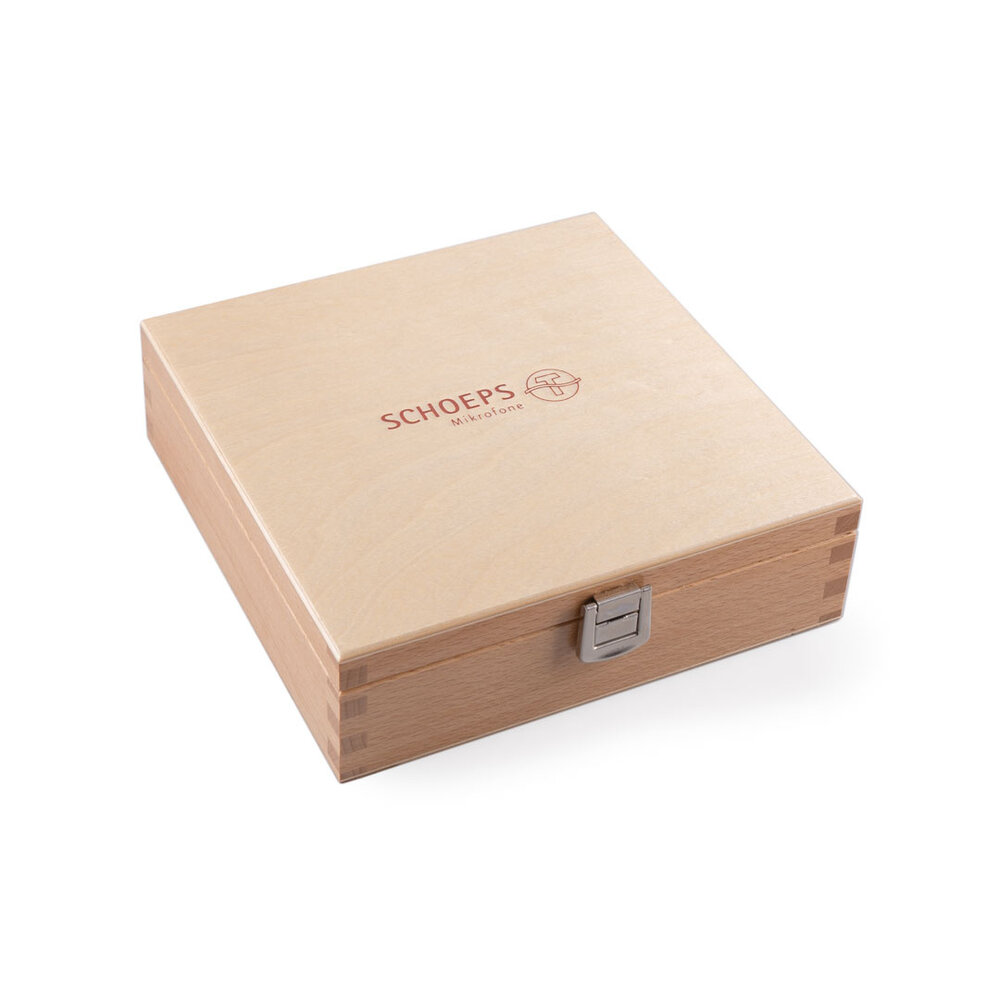

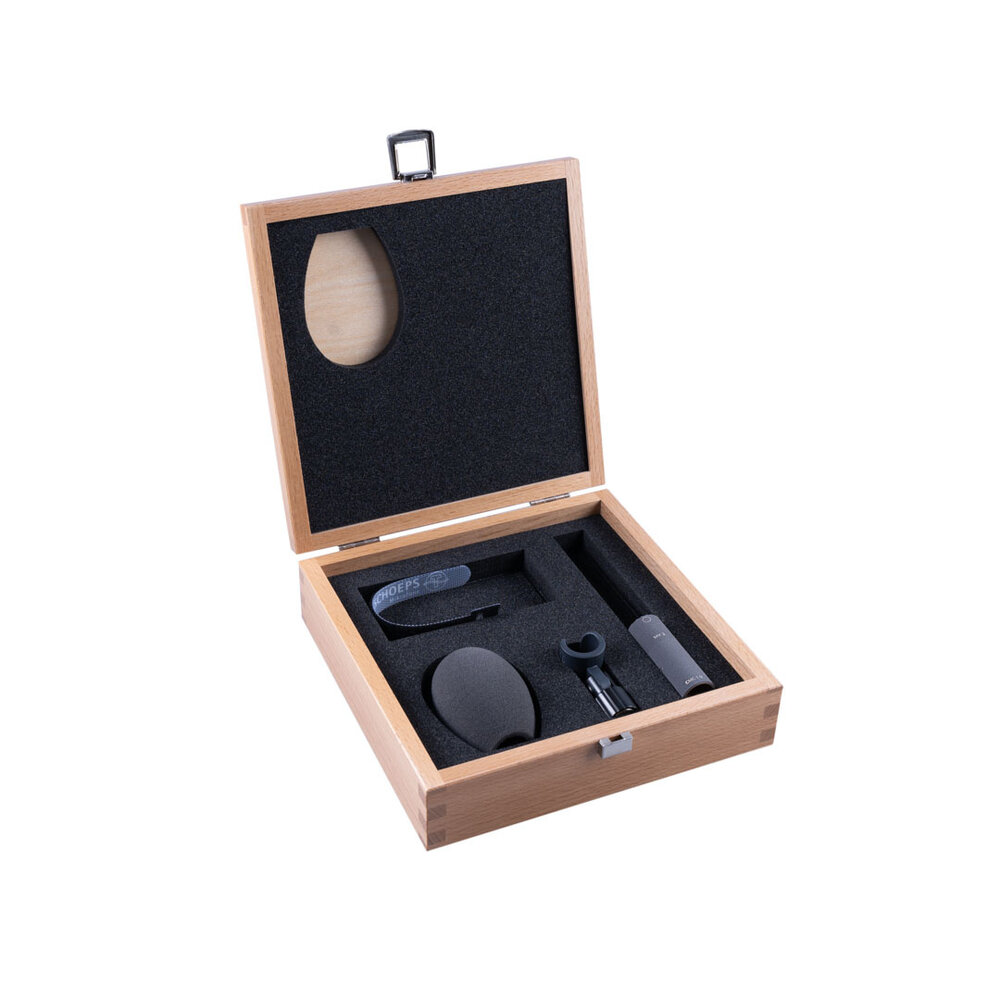

  • Premium case for CMC 1.

The Schoeps CMC 1 MK 2 Mono Set is ideal for applications requiring an omnidirectional pickup pattern. For more information and detailed specifications, visit the official Schoeps website: schoeps.de.

Product specifications

Article number
SCHMonCMC17848
SKU
138201

Reviews

0 / 5Based on 0 reviews

There are no reviews written yet about this product..

Create your own review

Previously viewed

Schoeps CMC1 MK2 Mono Set
SchoepsCMC1 MK2 Mono Set

[138201] Mono set CMC1U with MK2 standard omni capsule, SG20, and B5 in box.

€1.402,00€1.331,90 Excl. tax
