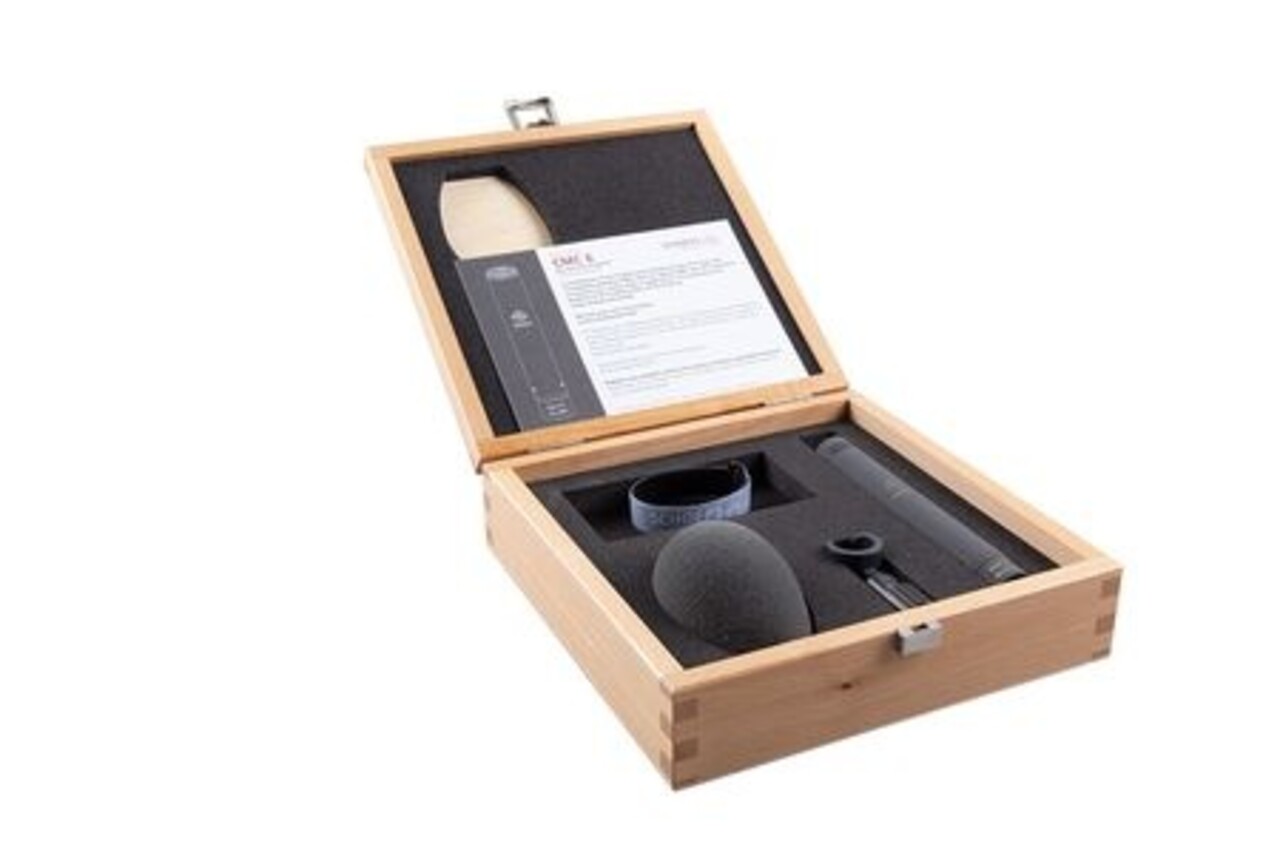

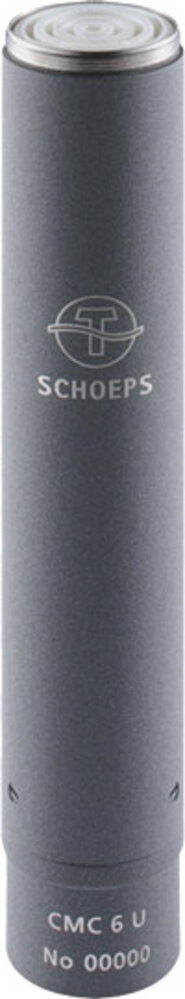

Schoeps CMC 6 U

Flat frequency response, very low harmonic distortion and noise. Works with 12V and 48V phantom power. Balanced, low-impedance output with high suppression of interference on the microphone cable. Excellent protection against high-frequency radio interference with "RFI Shield." Frequency-independent impedance allows signal transmission over very long cables. Reliable operation even with weak phantom power. Symmetrical, transformer- and capacitor-free output stage with a class-A amplifier. Above 20 kHz, the signal is attenuated for protection against interference in the ultrasonic range, e.g., through the ultrasonic autofocus of a film camera.

The capsules of condenser microphones can't be connected directly to microphone cables or inputs; a microphone amplifier is required in between. Thus, a complete microphone of the Colette series comprises any of the twenty available types of capsules combined with an amplifier. The CMC 6 U is designed for standard 48- and 12-Volt phantom powering. Its circuitry recognizes the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way; mainly, the difference is that the current drawn at 12 Volts is greater than at 48 Volts. However, the 12-Volt mode consumes less power and might be preferred for battery-powered recording.

The microphone amplifier is responsible for providing the necessary electric charge to the capsule, without which it would be unable to generate a signal. Since the capsule's output signal is very weak (Hi-Z), it must be amplified. In order for the microphone's output to cleanly reach the next stage in the signal chain, it must undergo balancing and impedance matching before transmission. The CMC 6 incorporates a balanced, direct-coupled class-A amplifier, yielding a low output impedance, high RF shielding, and minimal distortion.
