Schoeps CCM 41 V L

Schoeps CCM 4 V L

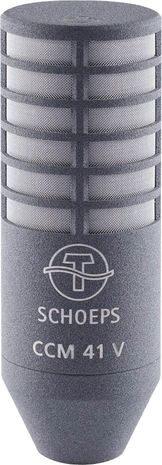

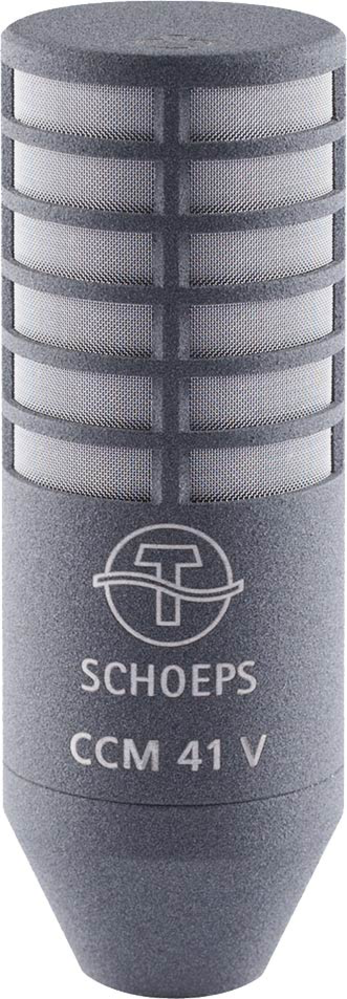

The Schoeps CCM 4 V L is a compact side-address cardioid condenser microphone, designed for applications requiring highly focused sound capture. Its small size allows it to be placed very close to the sound source, making it ideal for situations such as film recordings or in orchestra pits.

Key Features

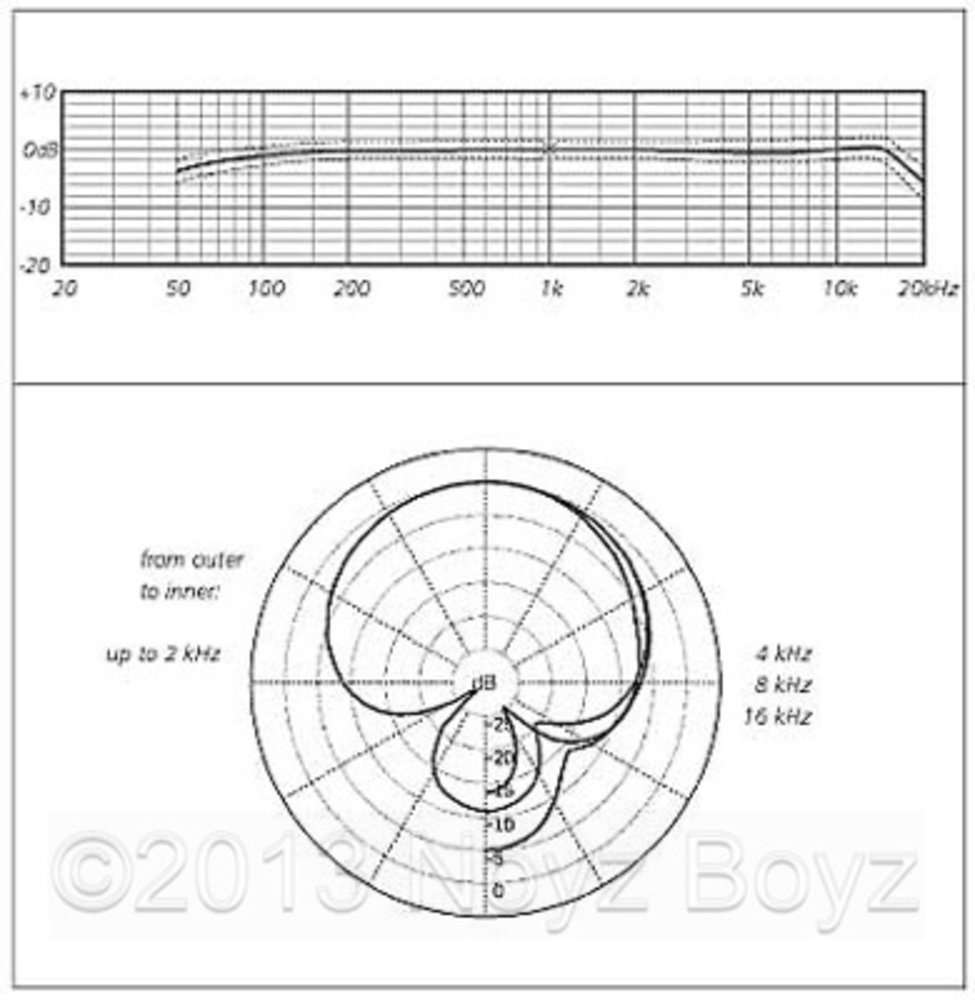

• Cardioid Polar Pattern: Provides a focused sound capture with minimal sensitivity to sounds from the sides and rear.
• Consistent Directionality: The directionality is almost independent of frequency, resulting in natural and accurate sound capture, even at larger distances from the sound source.

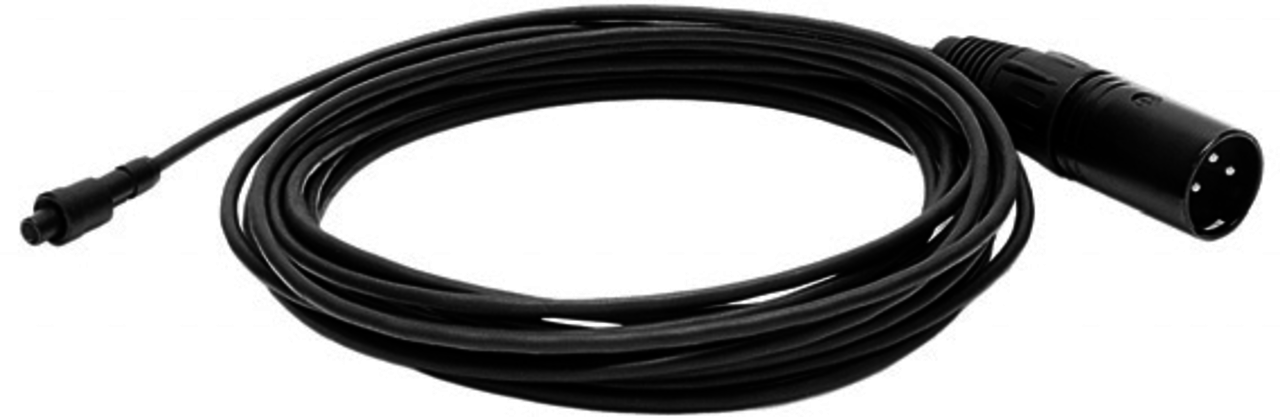

• Permanently Attached Cable with Lemo Connector: The fixed 5-meter cable with a Lemo connector ensures a reliable and durable connection, ideal for fixed setups.

Specifications

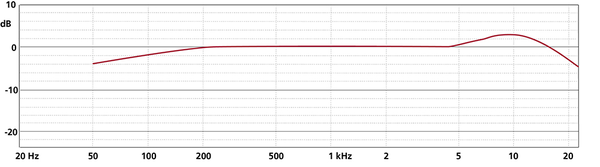

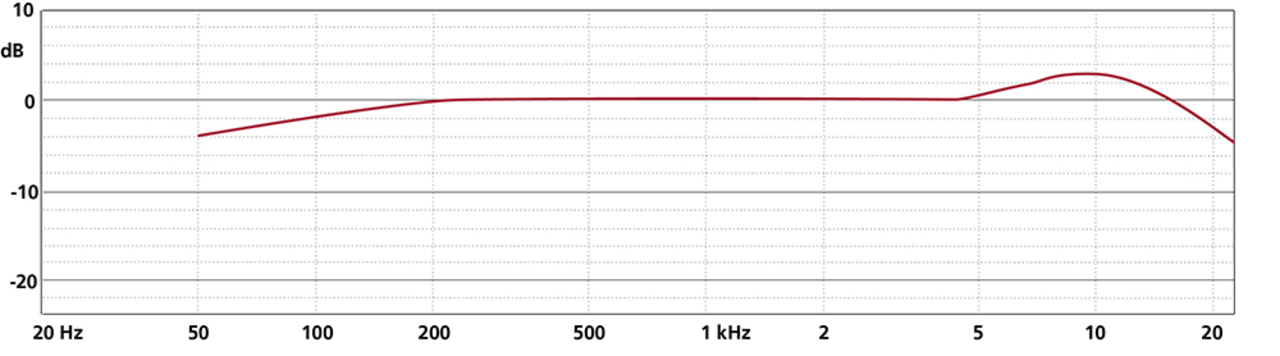

• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: -36.5 dB (V/Pa)
• Maximum SPL (THD < 0.5%): 136 dB SPL (P48); 128 dB SPL (P12)
• Equivalent Noise Level (A-weighted): 14 dB-A
• Output Impedance: 90 Ω at 1 kHz
• Recommended Load Impedance: 2 kΩ
• Power Supply: P48 (48V phantom power) or P12 (12V phantom power)
• Current Consumption: 4 mA (P48); 3.6 mA (P12)
• Dimensions: Length: 58 mm; Diameter: 20 mm
• Weight: 43 g
• Surface Finish: Matte grey

Applications

The CCM 4 V L is ideal for scenarios requiring highly focused sound capture, including:

• Film and Video Recordings: Perfect for discreet placement on film sets or in orchestra pits, where focused and isolated sound capture is essential.
• Music Recordings: Suitable for capturing specific instruments or voices within an ensemble, where accurate sound isolation is required.
• Theater Productions: Ideal for isolating sounds from specific actors or sound sources, even in dynamic and complex sound environments.
