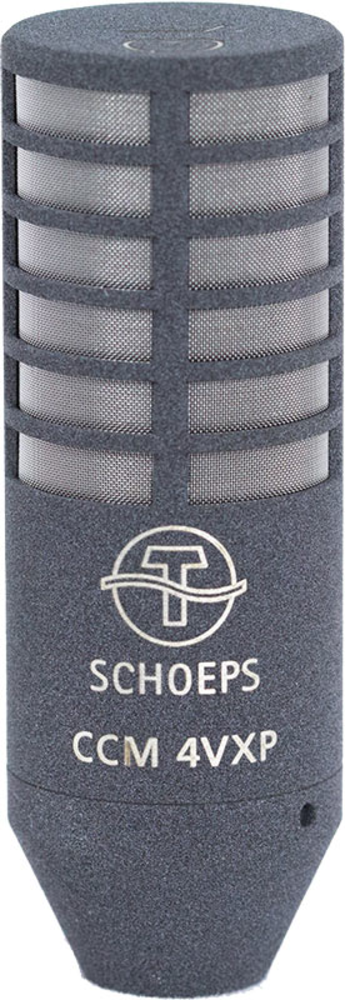

Schoeps CCM 4 VXP L
Product description
The other specifications are as per the corresponding capsule:
With a detachable cable from Lemo to XLR 3-pin male connector. Includes SGC clamp and KS 5 LU cable. All CCMs Current consumption with 12V 8mA Current consumption with 48V 4mA Impedance 90Ω Minimum recommended load impedance 600Ω ...

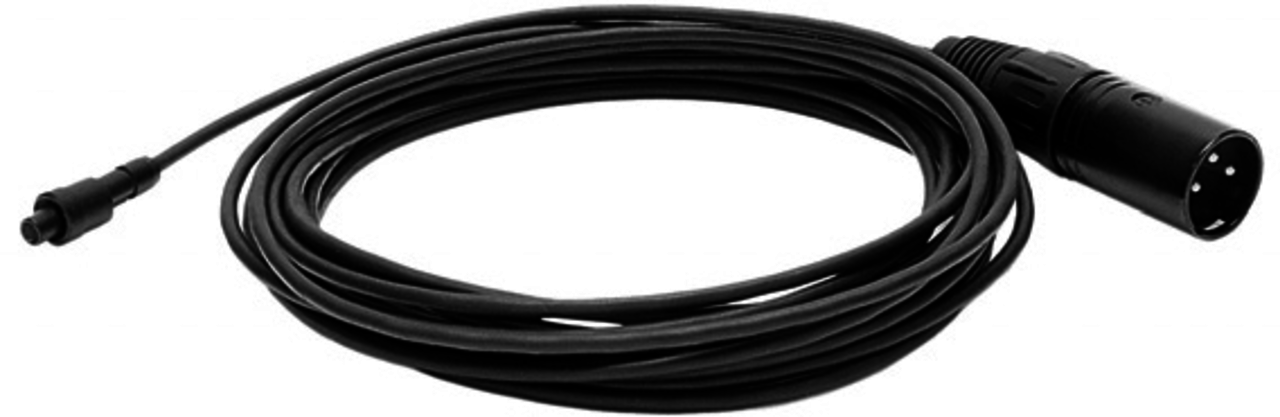

With a detachable cable from Lemo to XLR 3-pin male connector.

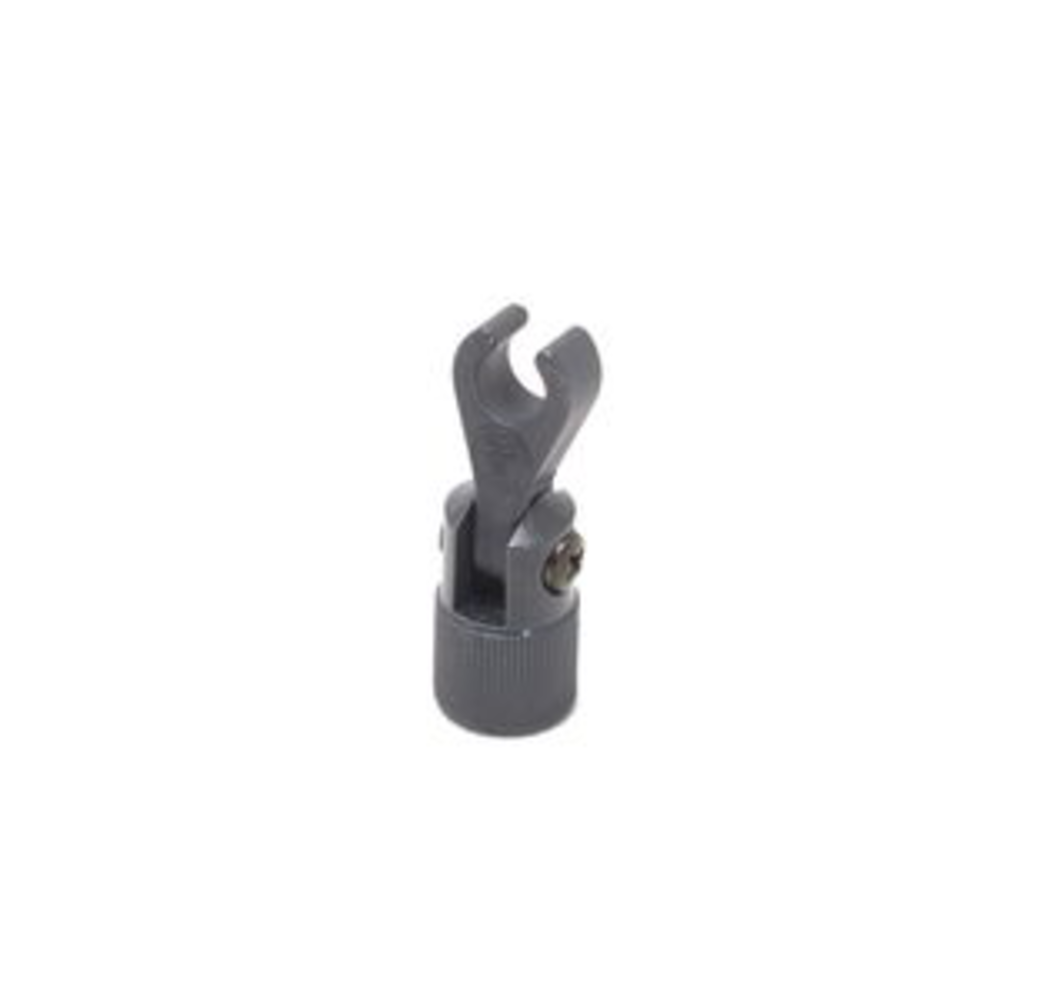

Includes SGC clamp and KS 5 LU cable.
| All CCMs | |
|---|---|
| Current consumption with 12V | 8mA |
| Current consumption with 48V | 4mA |
| Impedance | 90Ω |
| Minimum recommended load impedance | 600Ω |
| Low-cut frequency | 20Hz |
| Length (L version) | without connector: 46 - 58mm |
| Length (U version) | 46 - 58mm |
| Diameter | 20 mm |
| Weight (U-version) | 33g |
| Weight (L-version) | 43g |
| Surface finish | matte gray |
The other specifications are as per the corresponding capsule:
| MK 4VXS | |
|---|---|
| Frequency range | close pickup |
| Sensitivity | 10 mV/Pa |
| Equivalent noise level (A-weighted) | 14 dB-A |
| Equivalent noise level (CCIR) | 25 dB |
| Signal-to-noise ratio (A-weighted) | 80 dB-A |
| Maximum sound pressure level at 0.5% THD | 134 dB-SPL |
Show more
Show less
Product specifications
- Article number
- SchComCCM 2279
- SKU
- 121705
Related Products:
[121705] Compact microphone, cardioid, side addressed, close pickup, Lemo, with SGC and K5LU.
