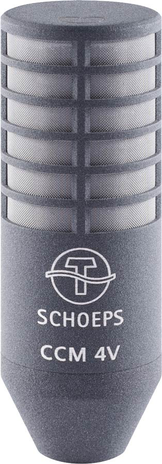

Schoeps CCM 4 V K
Product description
The other specifications are as per the corresponding capsule:
With a fixed cable to XLR 3-pin male connector. Includes SGC clamp. All CCMs Current consumption with 12V 8mA Current consumption with 48V 4mA Impedance 90Ω Minimum recommended load impedance 600Ω Low-cut frequency 20Hz ...
With a fixed cable to XLR 3-pin male connector.

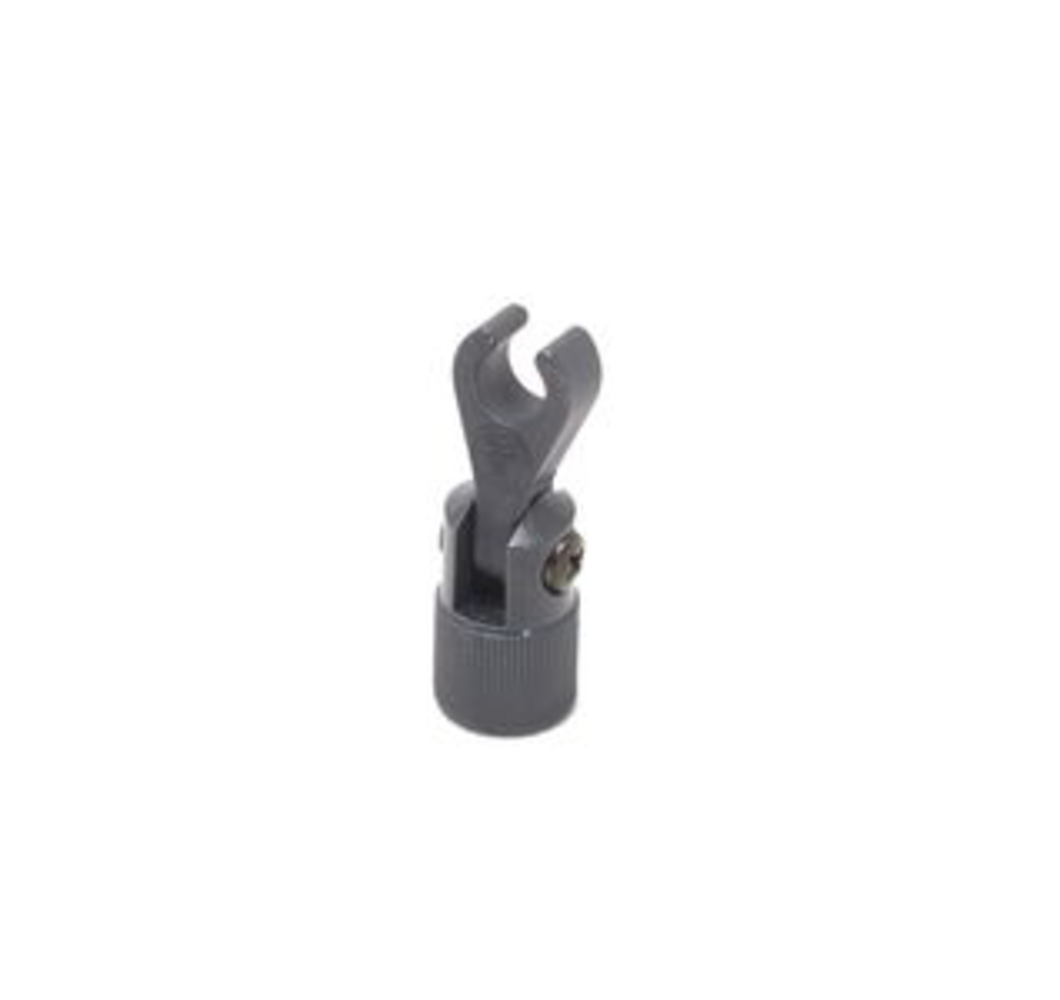

Includes SGC clamp.
| All CCMs | |
|---|---|
| Current consumption with 12V | 8mA |
| Current consumption with 48V | 4mA |
| Impedance | 90Ω |
| Minimum recommended load impedance | 600Ω |
| Low-cut frequency | 20Hz |
| Length (L version) | without connector: 46 - 58mm |
| Length (U version) | 46 - 58mm |
| Diameter | 20 mm |
| Weight (U-version) | 33g |
| Weight (L-version) | 43g |
| Surface finish | matte gray |
The other specifications are as per the corresponding capsule:
| MK 4V | |
|---|---|

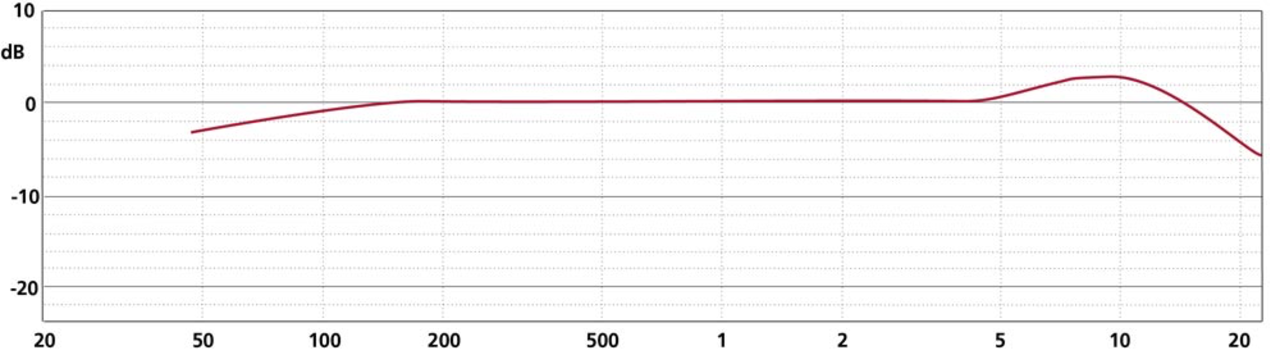

| Frequency range | 40 Hz - 20 kHz |
| Sensitivity | 13 mV/Pa |
| Equivalent noise level (A-weighted) | 14 dB-A |
| Equivalent noise level (CCIR) | 24 dB |
| Signal-to-noise ratio (A-weighted) | 80 dB-A |
| Maximum sound pressure level at 0.5% THD | 132 dB-SPL |
Show more
Show less
Product specifications
- Article number
- SchComCCM 2287
- SKU
- 121104
Related Products:
[121104] Compact microphone, cardioid, side addressed, with permanently attached XLR cable, with SGC.
