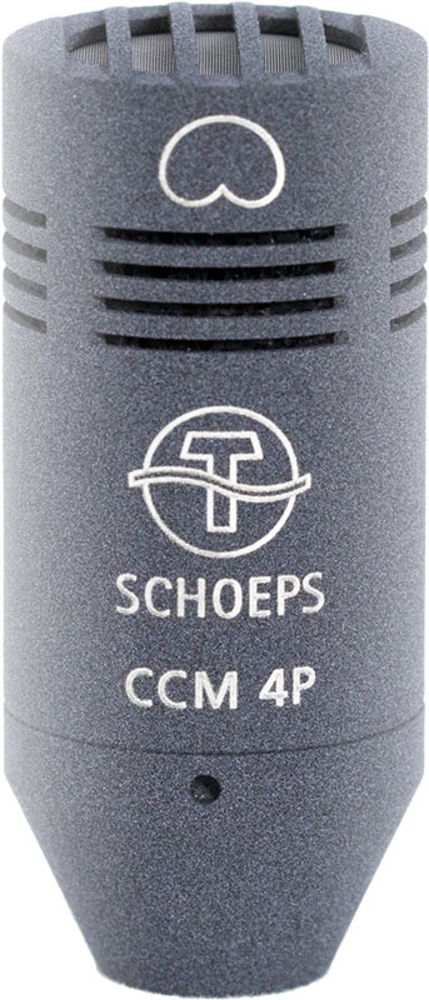

Schoeps CCM 4 P K

Product description
With fixed cable to XLR 3-pin male connector. Includes SGC clamp. All CCMs Current consumption with 12V 8mA Current consumption with 48V 4mA Impedance 90Ω Minimum recommended load impedance 600Ω Low-cut frequency 20Hz ...

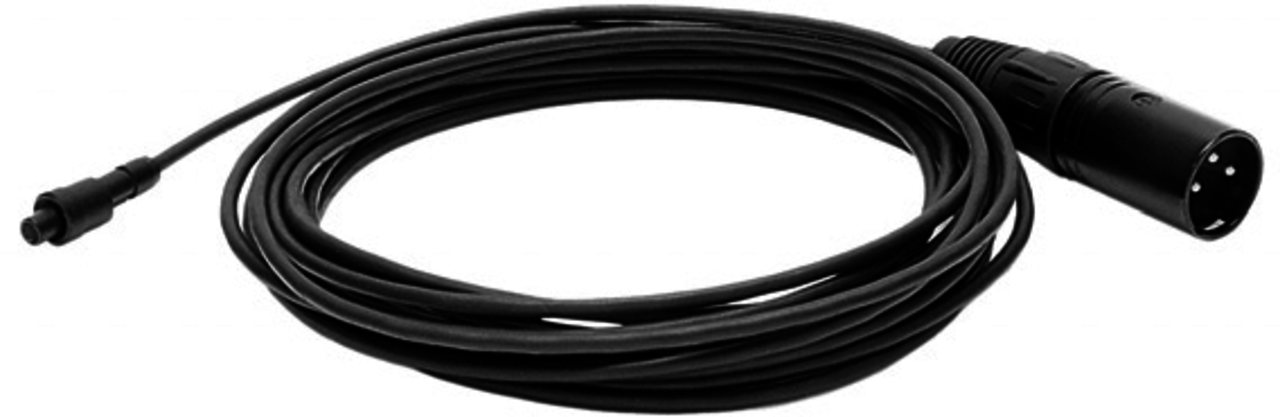

With fixed cable to XLR 3-pin male connector.

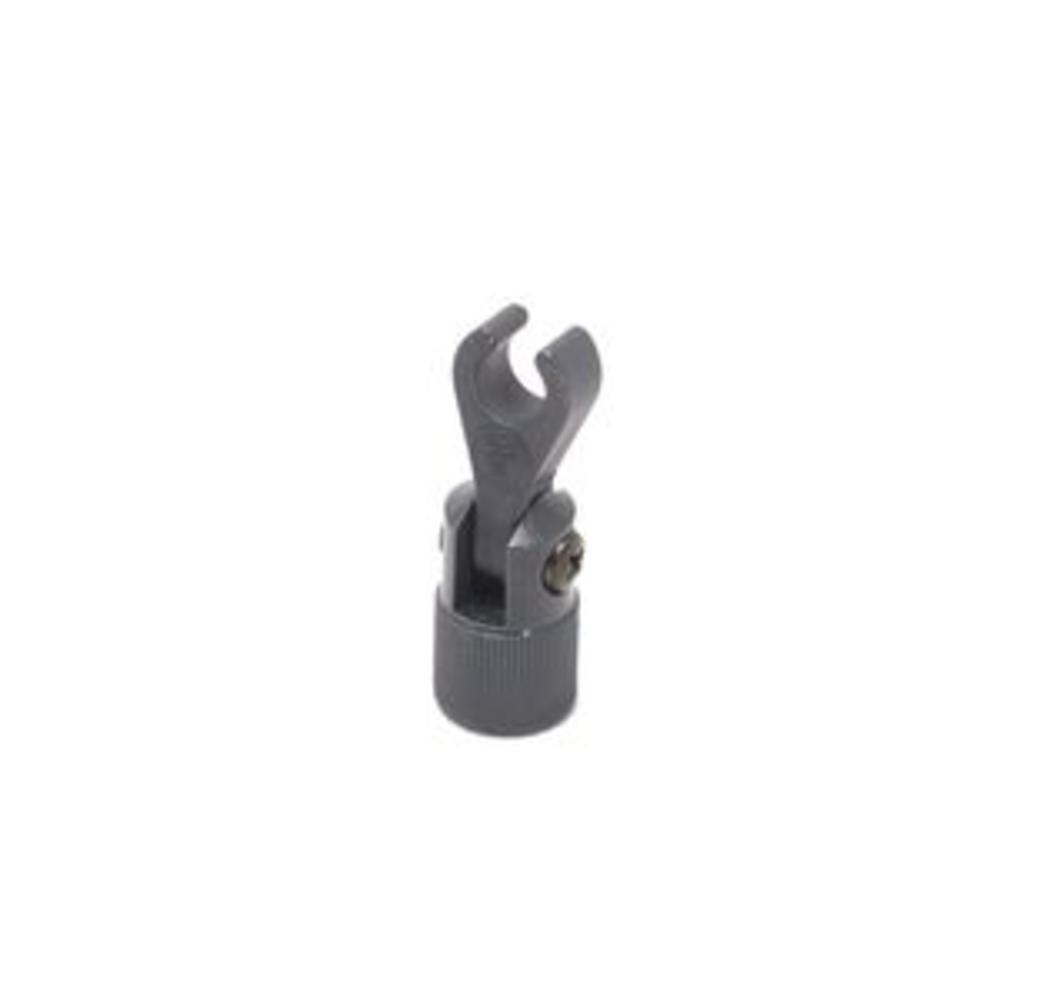

Includes SGC clamp.

All CCMs
Current consumption with 12V8mA
Current consumption with 48V4mA
Impedance90Ω
Minimum recommended load impedance600Ω
Low-cut frequency20Hz
Length (L version)without connector: 46 - 58mm
Length (U version)46 - 58mm
Diameter20 mm
Weight (U-version)33g
Weight (L-version)43g
Surface finishmatte gray

The other specifications are as per the corresponding capsule:

MK 4

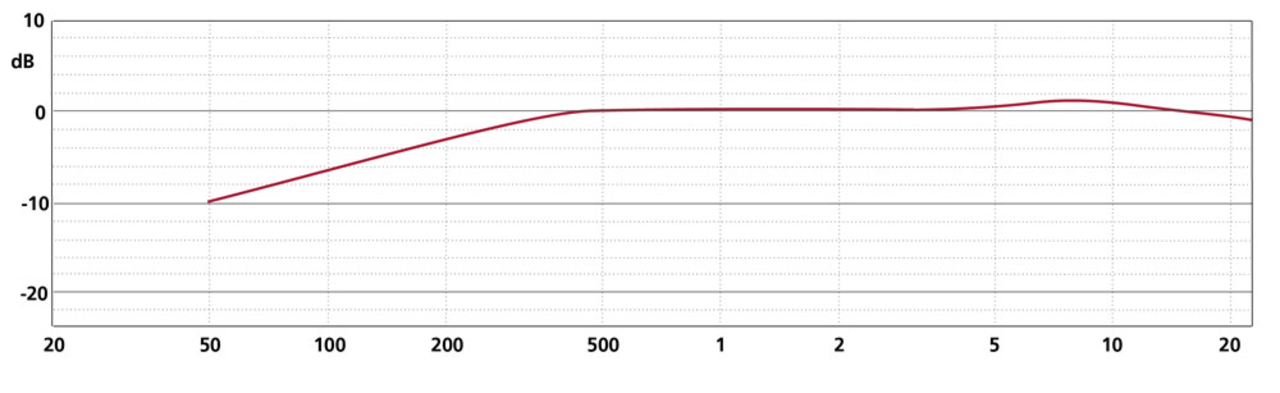

Frequency range40 Hz - 20 kHz
Sensitivity13 mV/Pa
Equivalent noise level (A-weighted)15 dB-A
Equivalent noise level (CCIR)24 dB
Signal-to-noise ratio (A-weighted)79 dB-A
Maximum sound pressure level at 0.5% THD132 dB-SPL

Product specifications

Article number
SchComCCM 2298
SKU
121702

Reviews

0 / 5Based on 0 reviews

There are no reviews written yet about this product..

Create your own review

Previously viewed

Schoeps CCM 4 P K
SchoepsCCM 4 P K

[121702] Compact microphone, universal cardioid, with permanently attached XLR cable, with SGC.

€1.504,00 Excl. tax
