DPA 4097-DC-G-B00-010

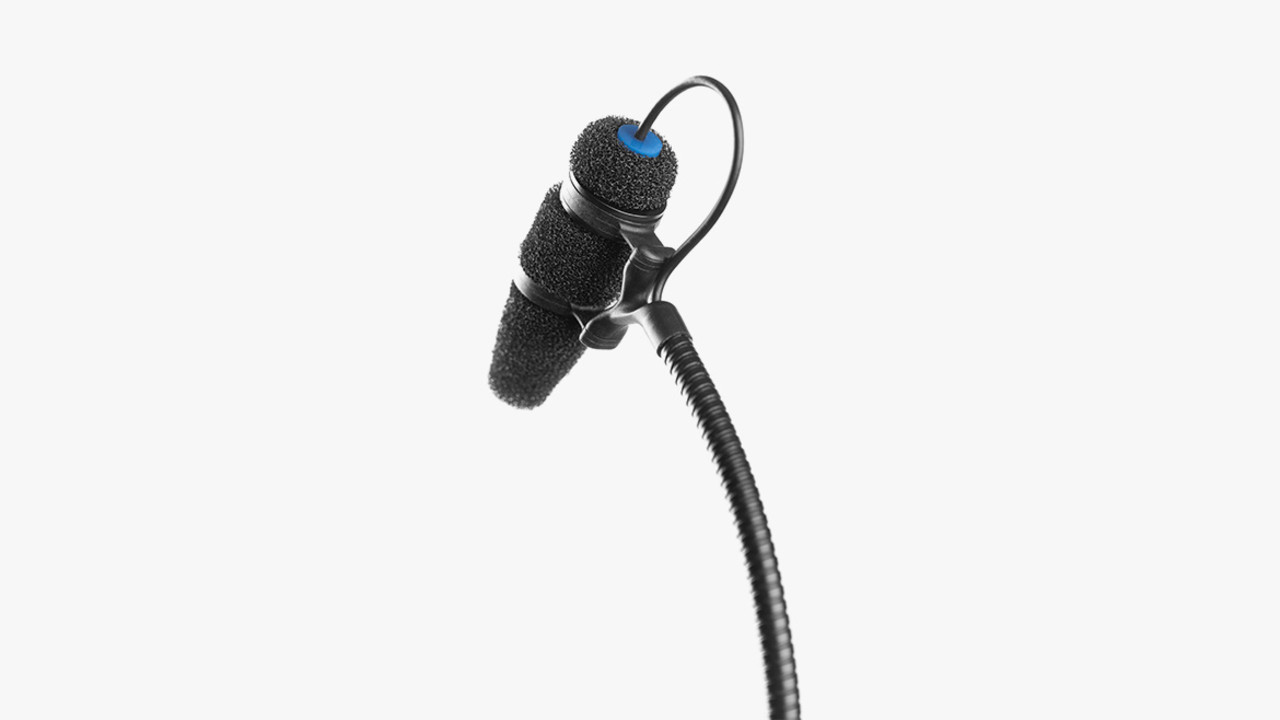

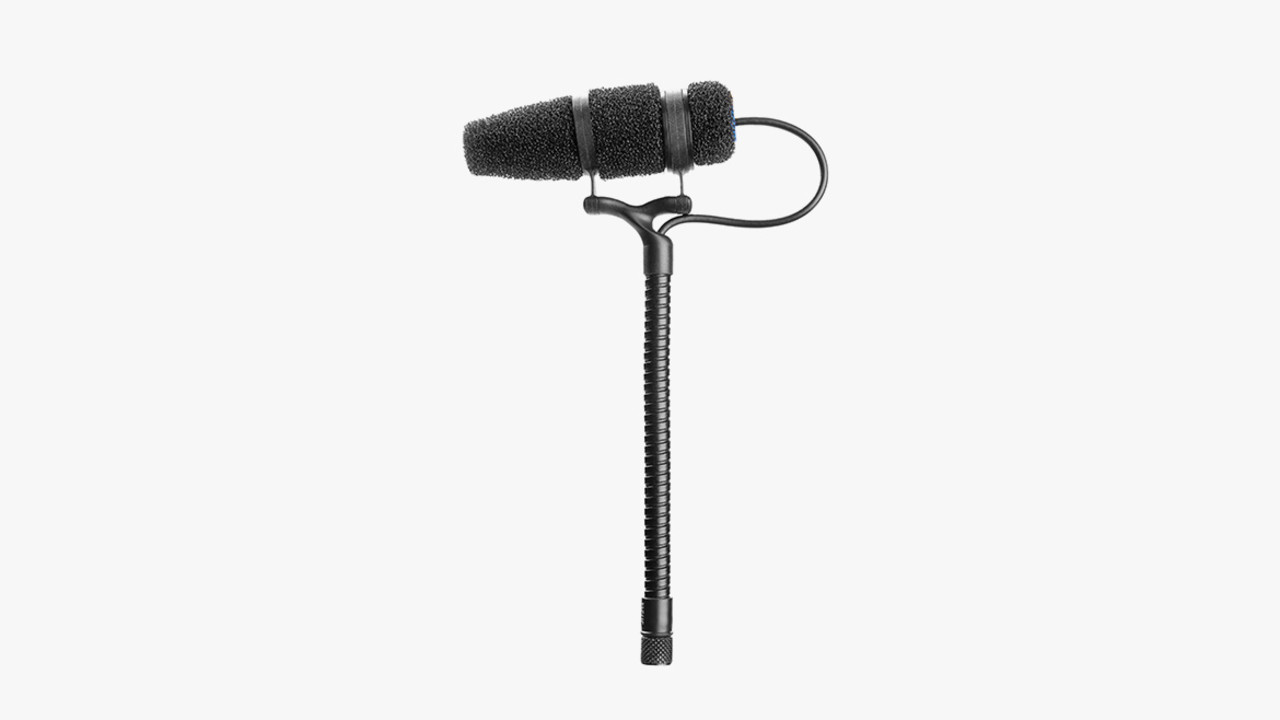

DPA 4097-DC-G-B00-010 Micro Shotgun Microphone
The DPA 4097-DC-G-B00-010 is a high-quality condenser microphone with a supercardioid polar pattern, designed for professional recording situations. Its compact design makes it suitable for film productions, interviews, and ENG applications. The microphone features a frequency range of 20 Hz to 20 kHz and a dynamic range of 135 dB SPL, ensuring detailed and natural sound reproduction, even at higher sound levels. The 4097 comes with a black MicroDot connector and a windscreen.
Key Features
- Supercardioid polar pattern for focused sound capture

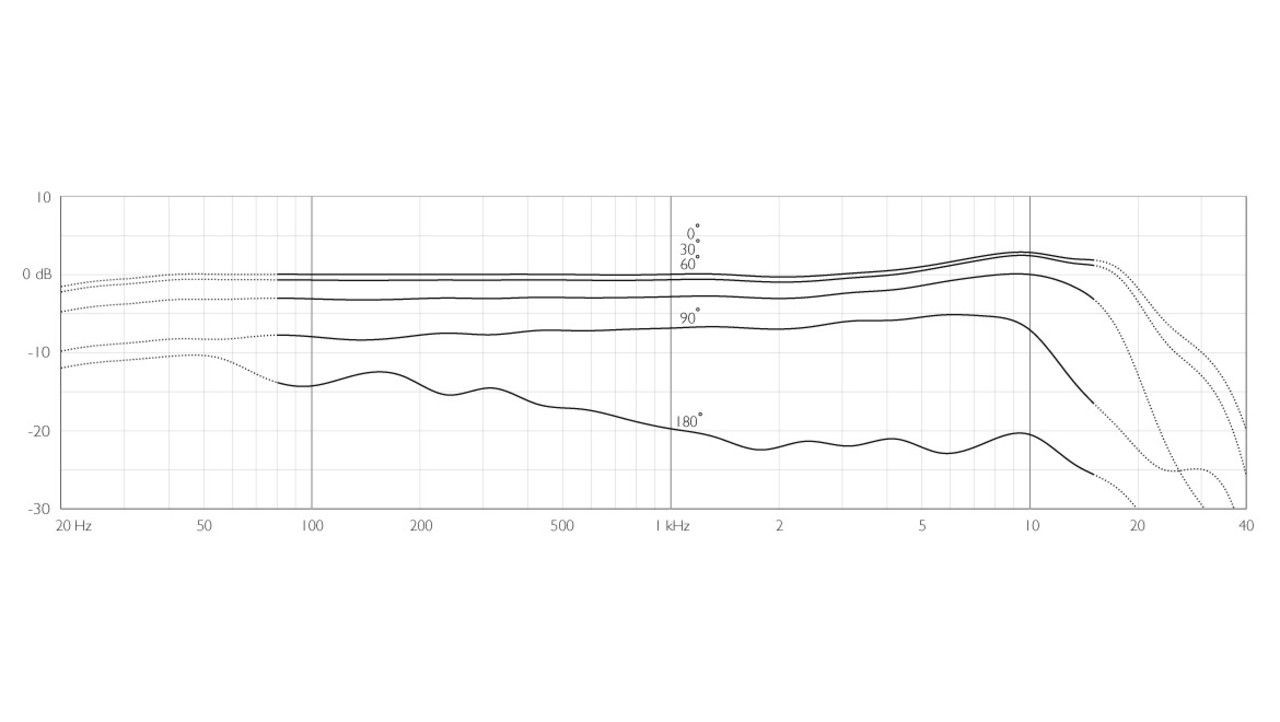

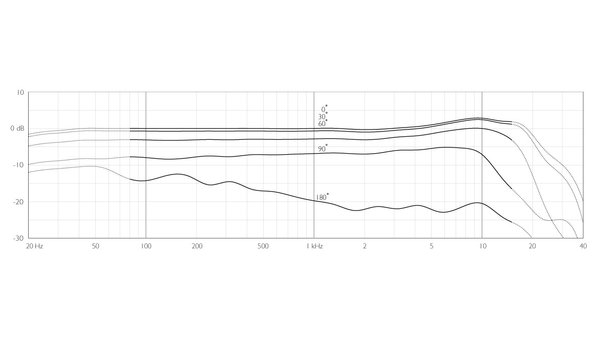

- Frequency range of 20 Hz to 20 kHz with a gentle boost between 10 kHz and 12 kHz
- Maximum SPL of 135 dB with less than 10% distortion

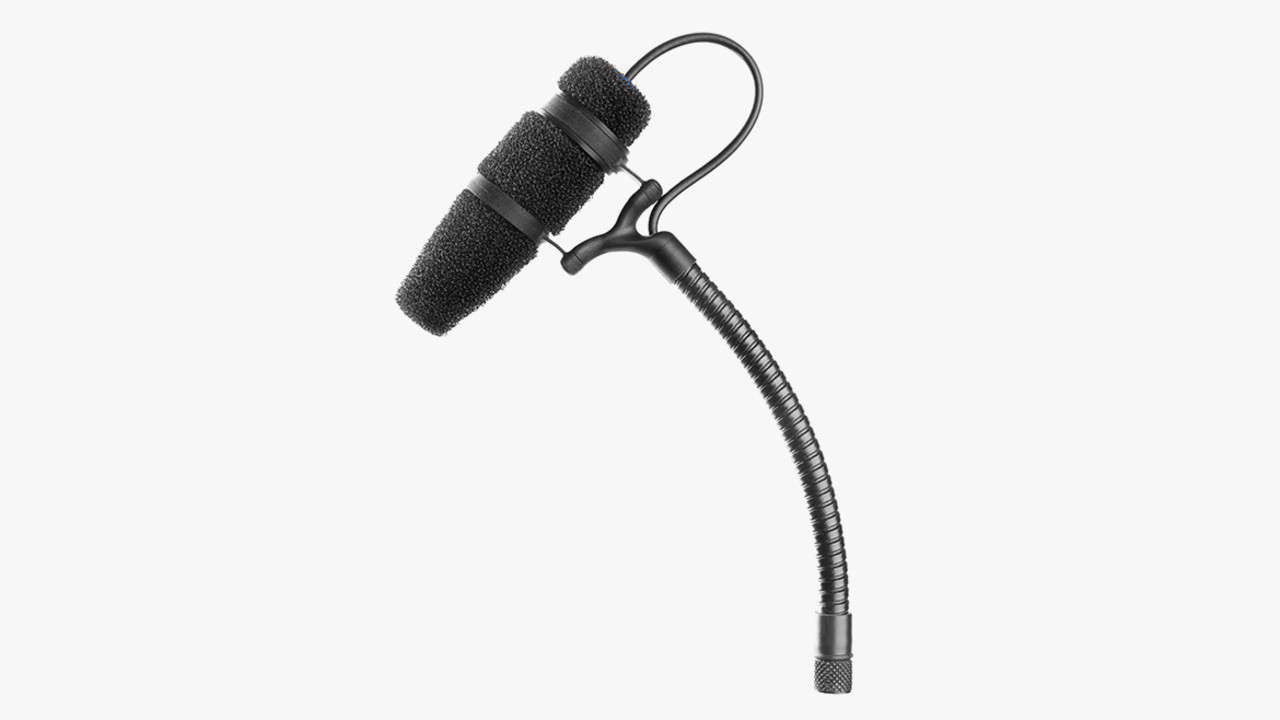

- Compact design with 10 cm flexible neck for easy placement

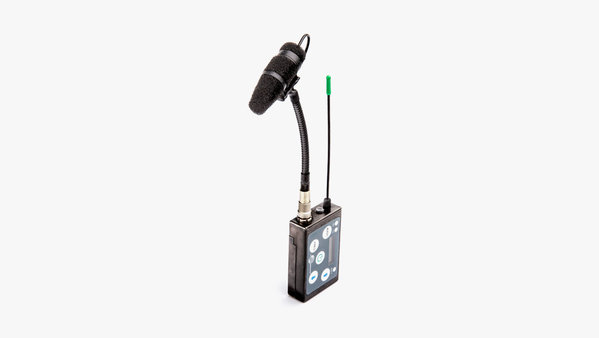

- Black MicroDot connector for compatibility with various wireless systems
- Includes windscreen
Specifications
- Type: Condenser (electret)

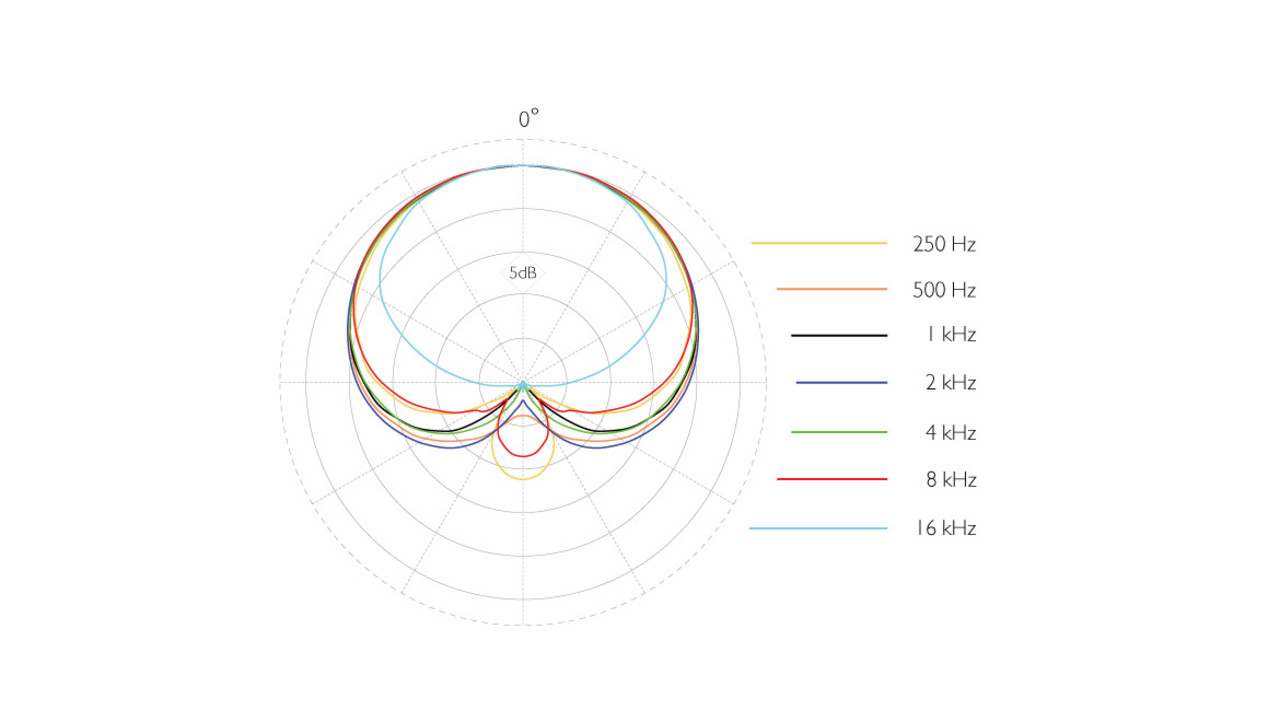

- Polar pattern: Supercardioid
- Frequency range: 20 Hz – 20 kHz
- Sensitivity: 16 mV/Pa at 1 kHz
- Equivalent noise level (A-weighted): Typically 23 dB(A) re. 20 µPa
- Maximum SPL (10% distortion): 135 dB SPL peak
- Power supply: 48 V phantom power via MicroDot adapter

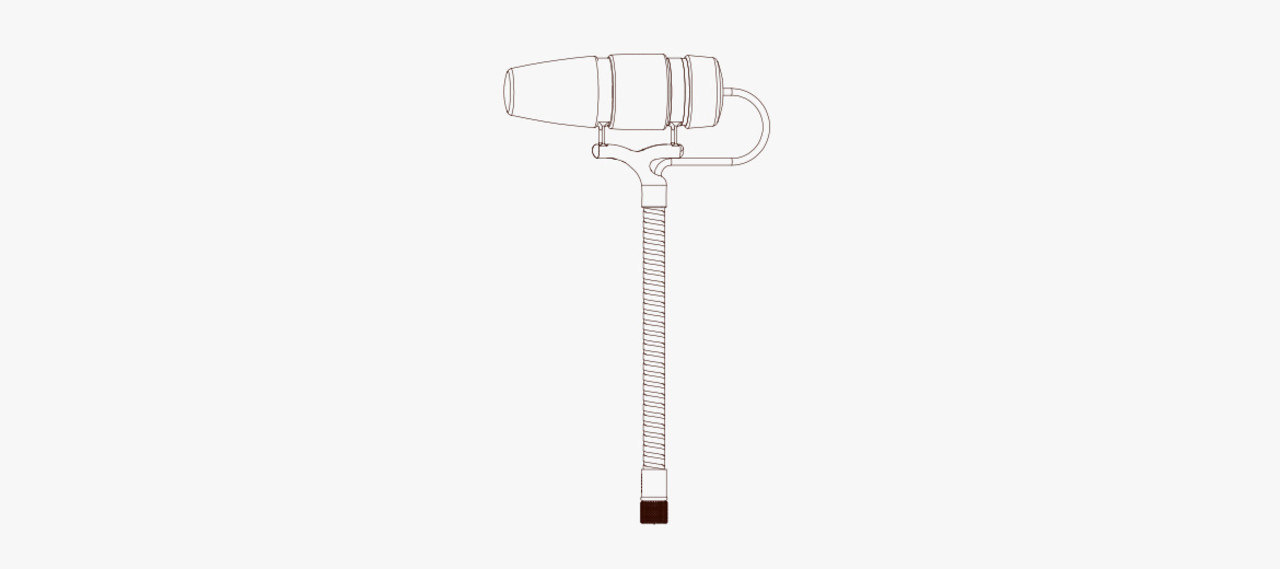

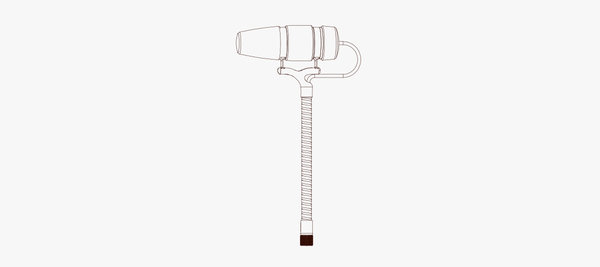

- Dimensions: Microphone length 104 mm, diameter 19 mm; total length with neck 144 mm
- Weight: 10 g (microphone only)
Product specifications
- Article number
- DPAIns40977947
- SKU
- 4097-DC-G-B00-010
