DPA 4015A

Specifications

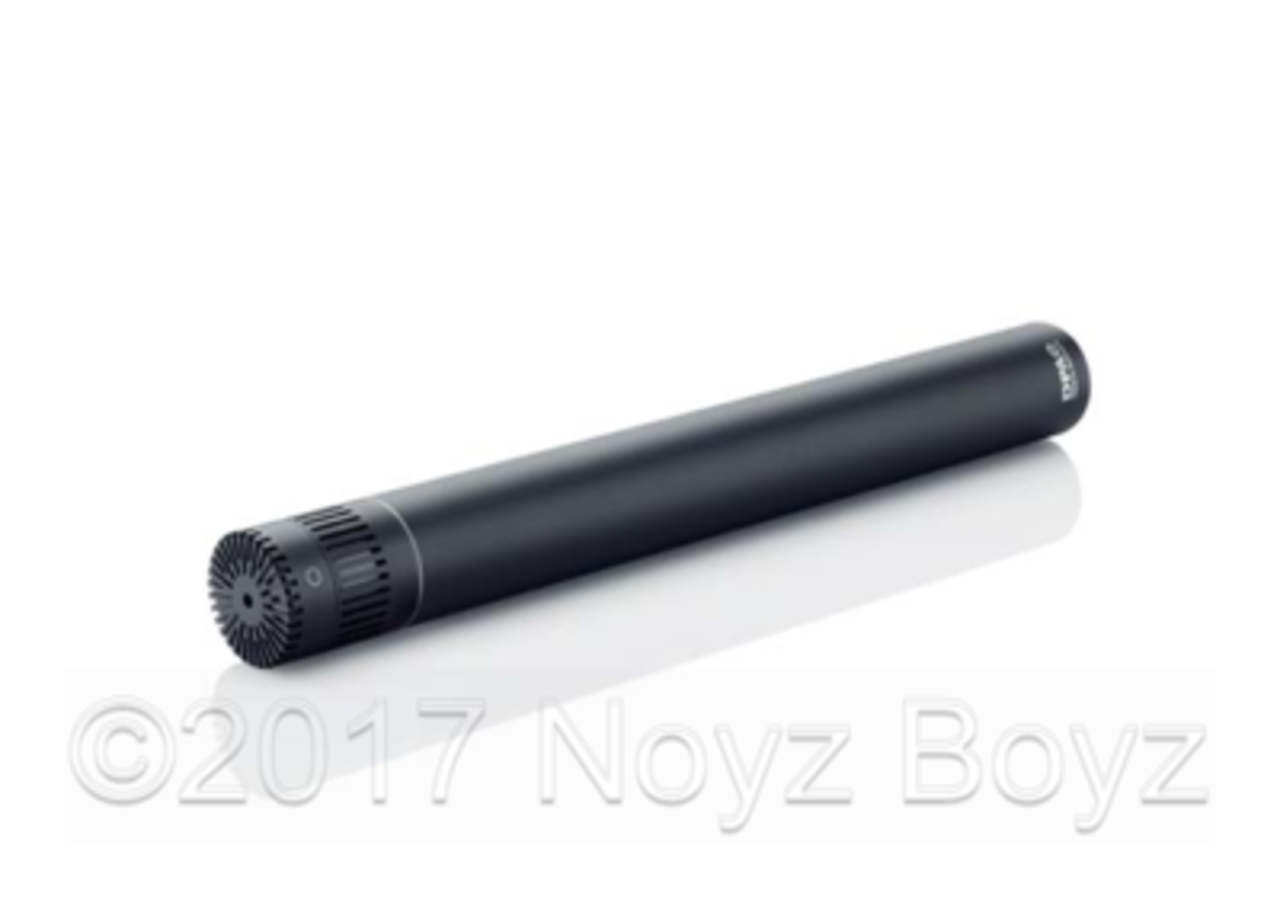

4015A WIDE CARDIOID MICROPHONE

• Directional pattern: Wide cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 20 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
• Total harmonic distortion (THD):< 1% up to 139 dB SPL peak
• Dynamic range: Typ. 121 dB
• Max. SPL, peak before clipping: 159 dB
