Betso RF OCTOPUS

BETSO RF Octopus

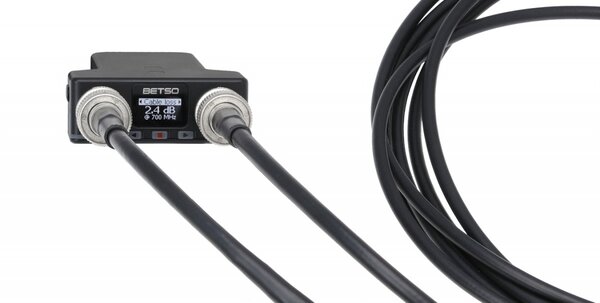

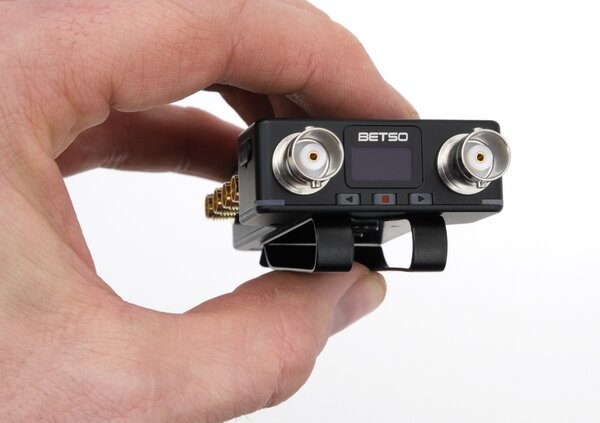

The BETSO RF Octopus is a versatile RF splitter, combiner, and diagnostic tool designed for flexibility and precision in wireless audio systems.

Technical Specifications

• Frequency range: 470–1260 MHz (with menu user-selectable low-pass filters at 700 MHz, 960 MHz, or 1260 MHz)
• In-built low-pass selectable filters:
  • 700 MHz (470–700 MHz)
  • 960 MHz (470–960 MHz)
  • 1260 MHz (470–1260 MHz)
• Operation modes:
  • Splitter 2:8 (diversity: 1 input → 4 outputs)
  • Splitter 1:8 (1 input → 8 outputs)
  • Combiner-Splitter 1:8 (sum of two inputs → 8 outputs)
• Overall gain: -10 to +12 dB, user-adjustable
• Input and output impedance: 50 Ohm
• OIP3: > +40 dBm
• Output port-port isolation: > 21 dB (typ.)
• Noise figure of LNA:< 0.8 dB
• Input connectors: High-quality BNC sockets
• Output connectors: High-quality SMA sockets
• Input powering connector: HRS compatible 4-pin connector
• Operating voltage: 6–18V DC
• Current consumption:< 100 mA @ 12V DC
• Active antenna powering: Individually switchable, overload protected and monitored
• Mechanic construction: CNC milled, anodized aluminium alloy
• Dimensions (case): 75 x 48 x 17.8 mm
• Weight: approx. 110 g
• Manufactured in: Czech Republic
