AudioRoot eSmart Trio

eSMART TRIO – Smart Power Distribution System with Three Inputs

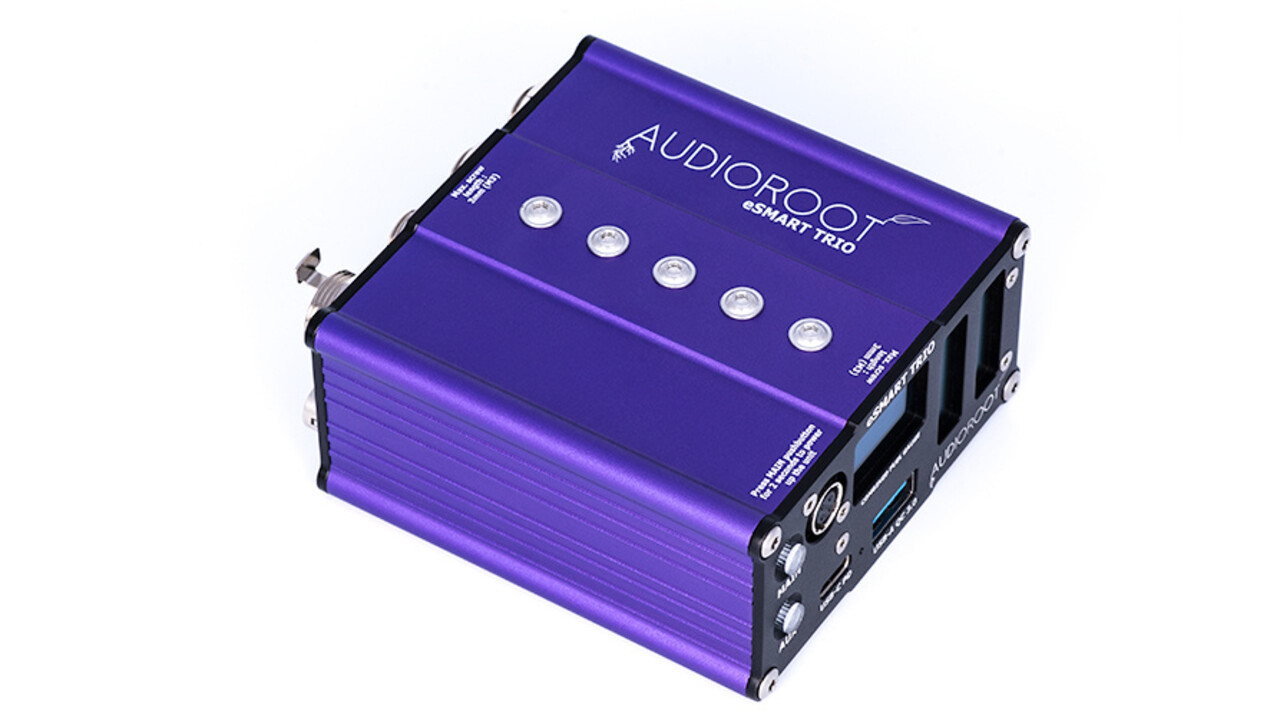

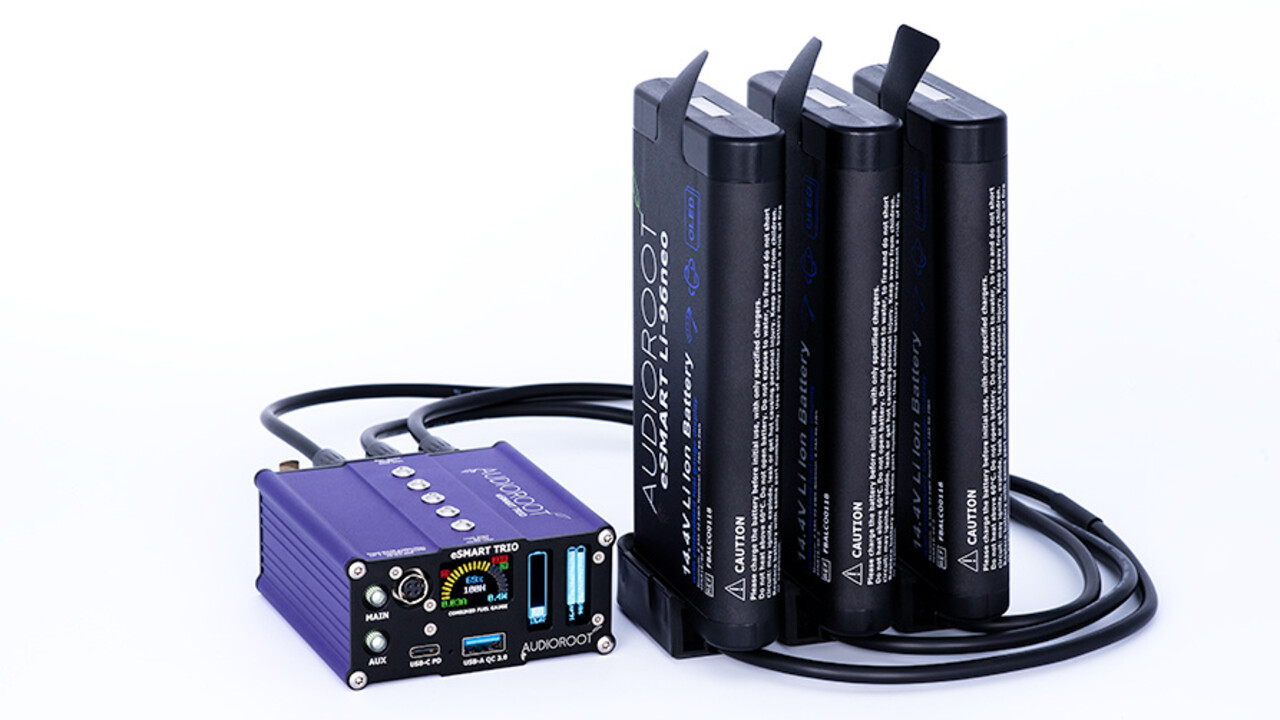

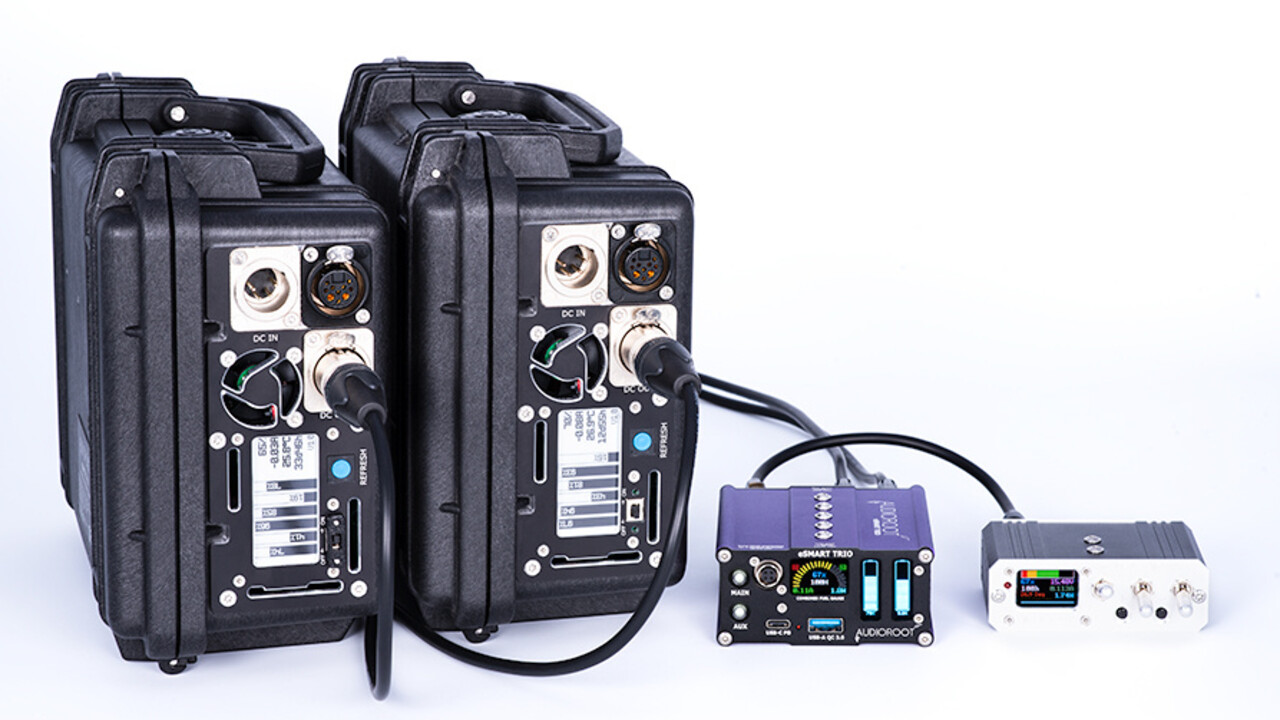

The AudioRoot eSMART TRIO is a powerful and versatile power distribution system for location sound applications, designed to accommodate multiple redundant power sources. With three independent inputs (3 × smart batteries or 2 × batteries + 1 × external power via adapter), the TRIO provides maximum flexibility on set.

The unit features eight DC outputs using Hirose™ and TA4F connectors, plus two USB ports: one USB-A with Quick Charge 3.0 and one USB-C with Power Delivery. All battery and power status information is displayed in real time via three OLED screens: a 96×64 pixel color display and two 128×28 pixel monochrome displays.

Main Features

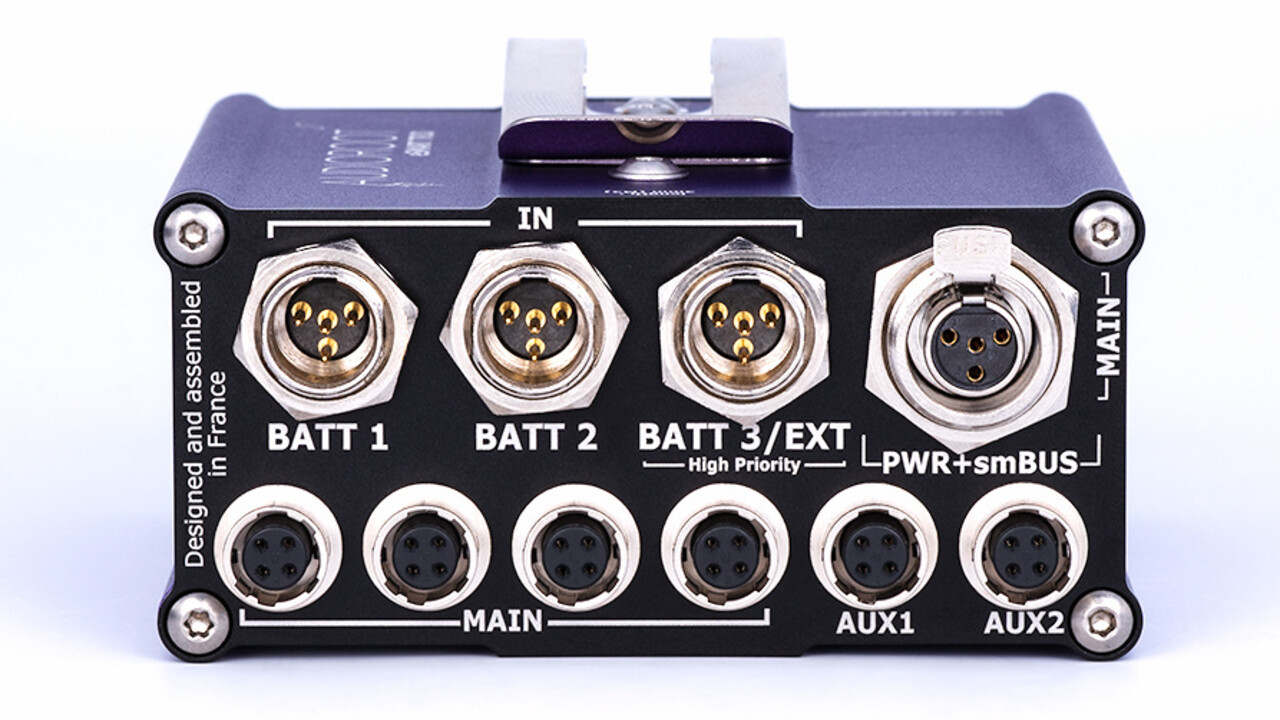

• 3 × TA4M smart battery inputs (hot-swappable, parallel or combined)
• 6 × Hirose™-compatible DC outputs (4 main, 2 auxiliary – rear panel)
• 1 × Hirose™-compatible DC output (front panel)
• 1 × TA4F output (Switchcraft™-compatible) with smBUS data aggregation
• 1 × USB-A port with Quick Charge 3.0
• 1 × USB-C port with Power Delivery

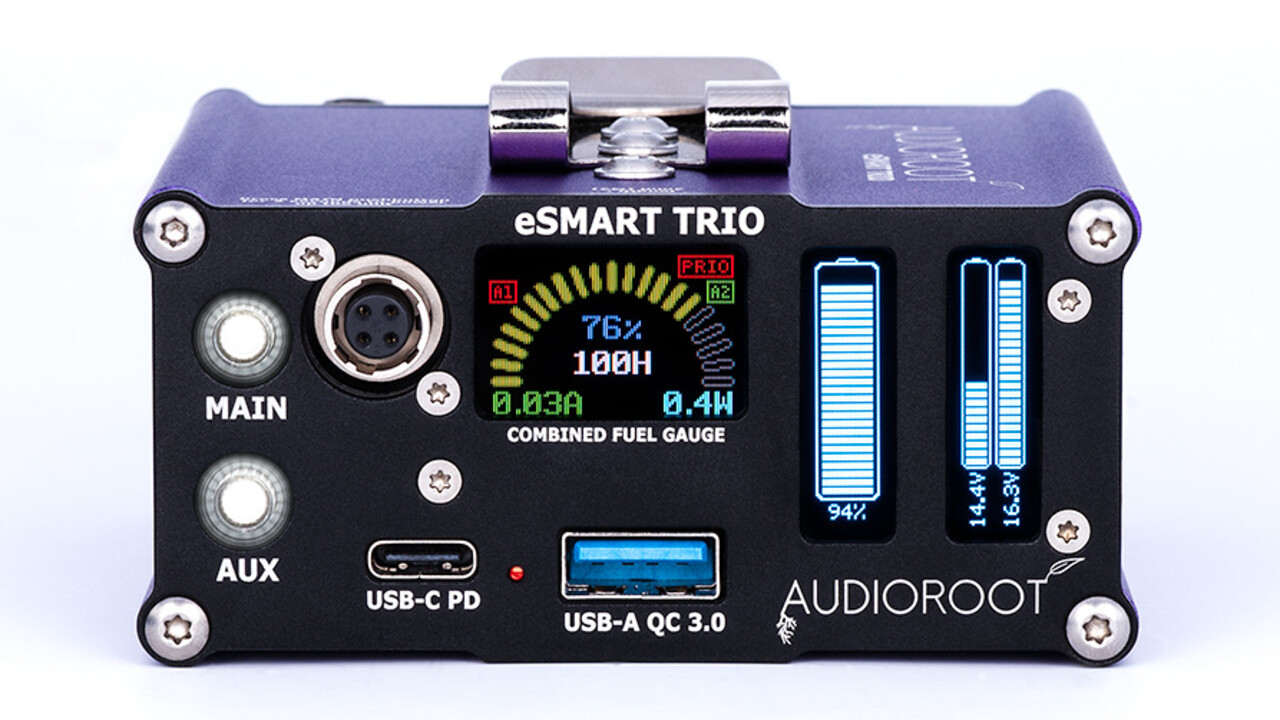

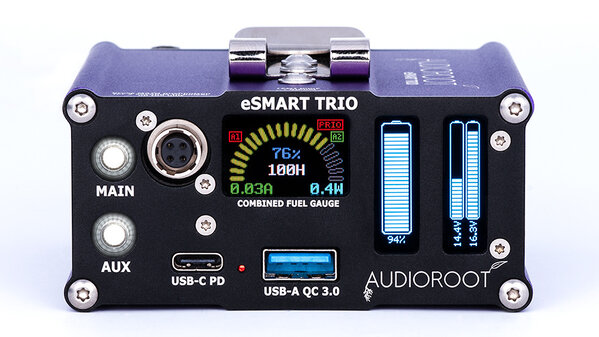

• 1 × color OLED display (96×64 pixels)
• 2 × blue OLED displays (128×28 pixels)
• 2 × white illuminated pushbuttons
• Firmware upgrade via internal mini-USB port
• Maximum total power: 11.5A (165W @ 14.4V)

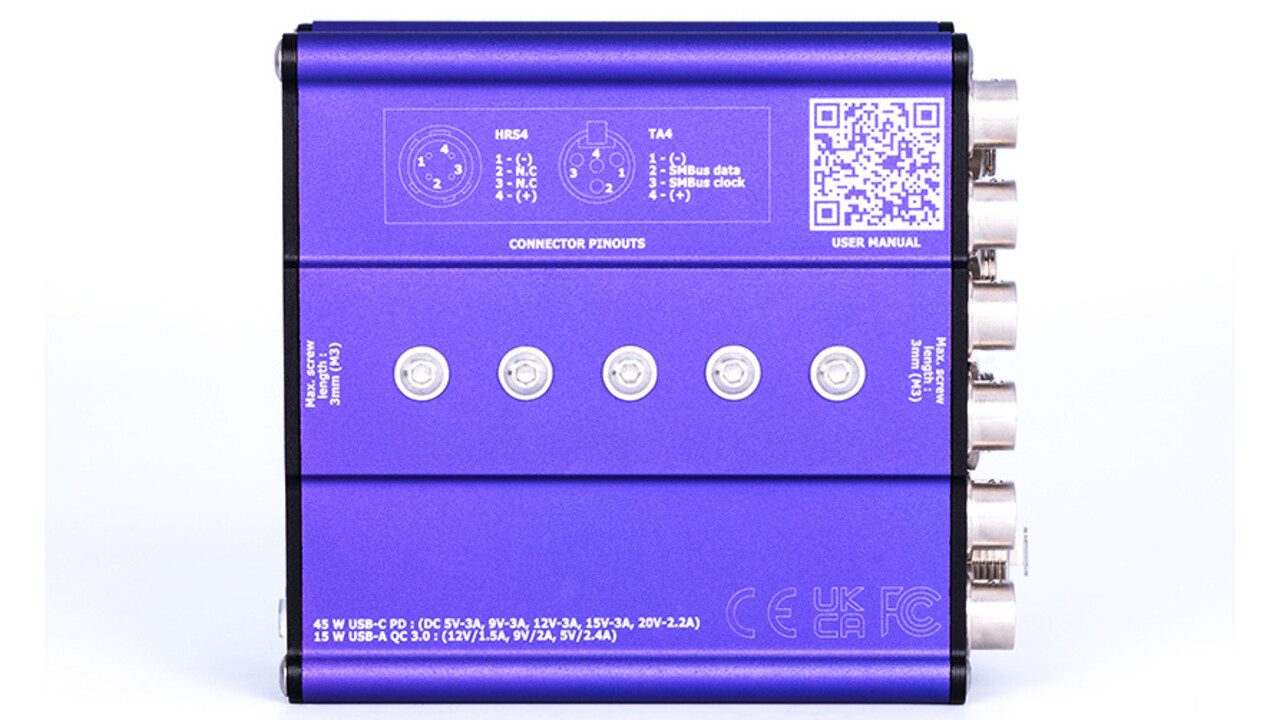

• 10 × M3 threaded mounting holes for various attachment options
• Dimensions: 83 × 40 × 94 mm
• Weight: 300 g (without belt clip)

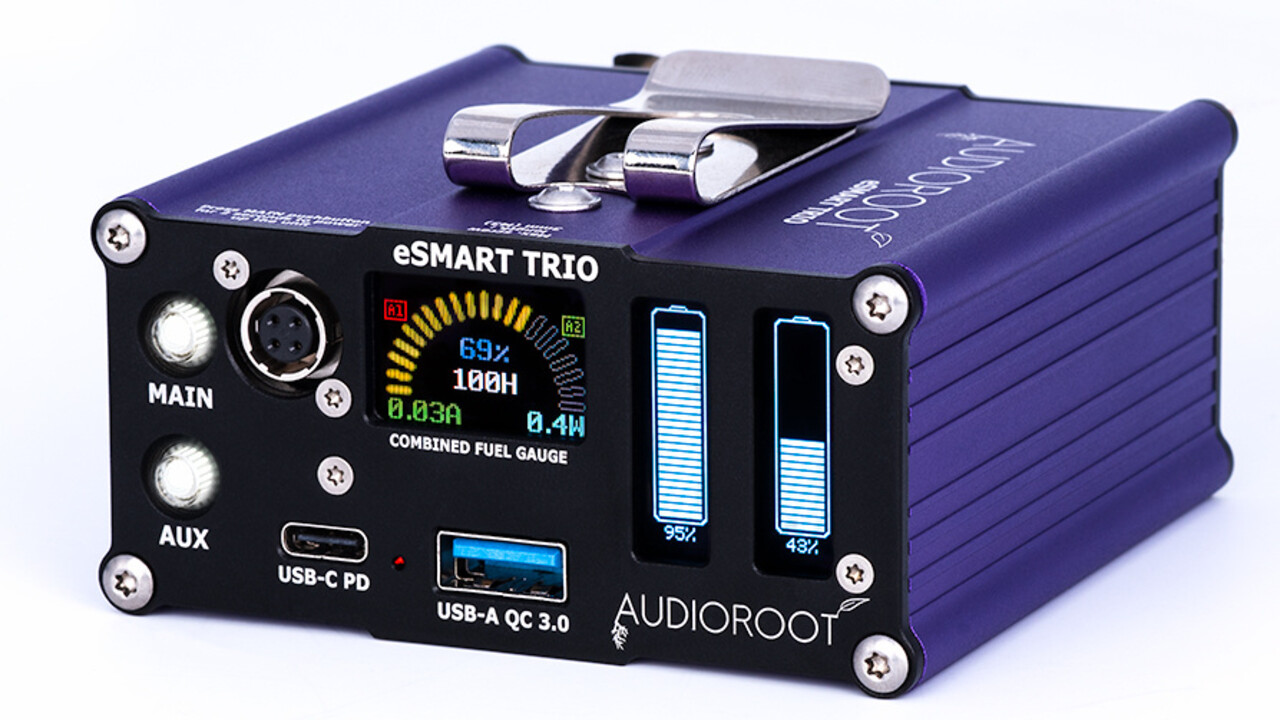

• Belt clip included

Manual

Download the user manual (PDF)

Video

Watch the video below for an introduction to the eSMART TRIO, covering features, connectors, and use cases in the field:
